BIU-918

BIU-918

American Vintage Top Tool

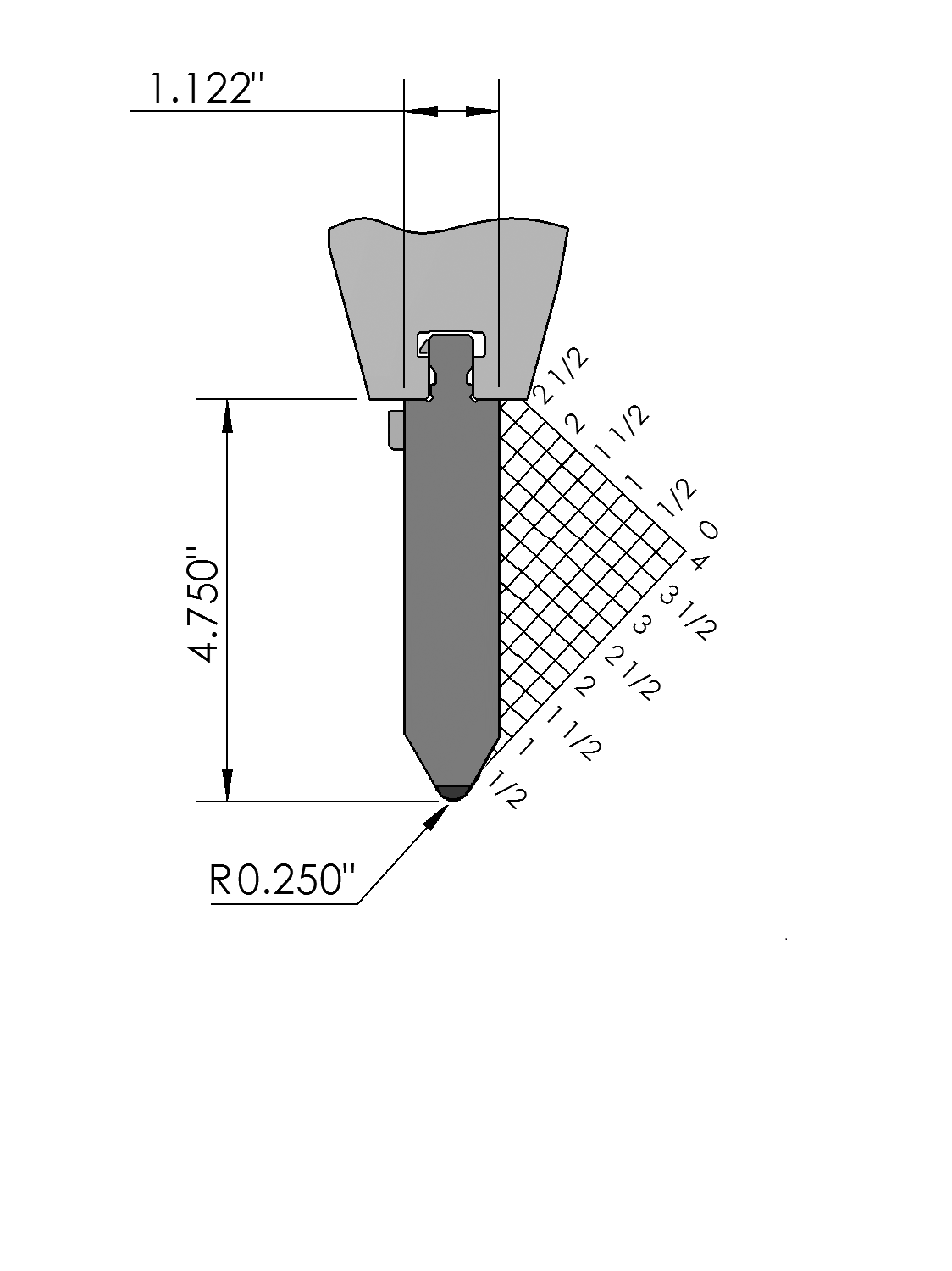

  • Working height H = 4.750"
  • Tip angle α = 60°
  • Radius R = .25"
  • CNC-hardened (approx. 0.079" / ≥ 52HRC)
  • Max. load = 34 Tons/ft
BIU-918/7
366935
Safety keys 13.8kg / 30.4lbs
BIU-918/8 18.5" (segmented)
366936
Safety-Clicks® 12.7kg / 28.1lbs
BIU-918/9 8" (segmented)
366937
Safety-Clicks® 5.5kg / 12.1lbs
BIU-918 1x:0.75"
366929
Safety-Clicks® 0.5kg / 1.1lbs
BIU-918 1x:1"
366932
Safety-Clicks® 0.7kg / 1.5lbs

Descripción

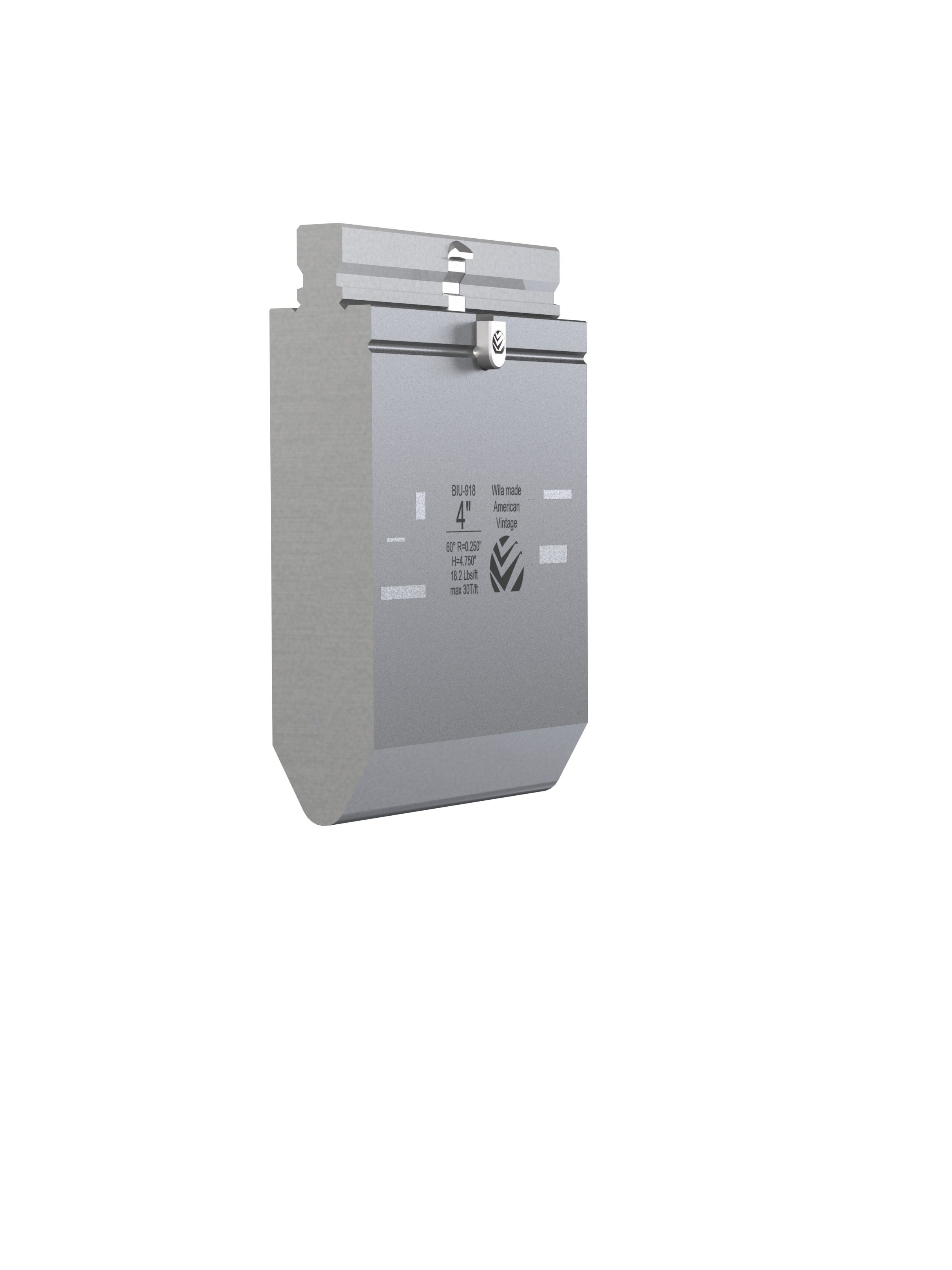

American Vintage top tool with Working height H=4.750", α=60°, Radius=.25", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc), Material=C45, Max. load=34 Tons/ft. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
