OB-HD-II-HC-TY/UPB

OB-HD-II-HC-TY/UPB

New Standard Premium Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

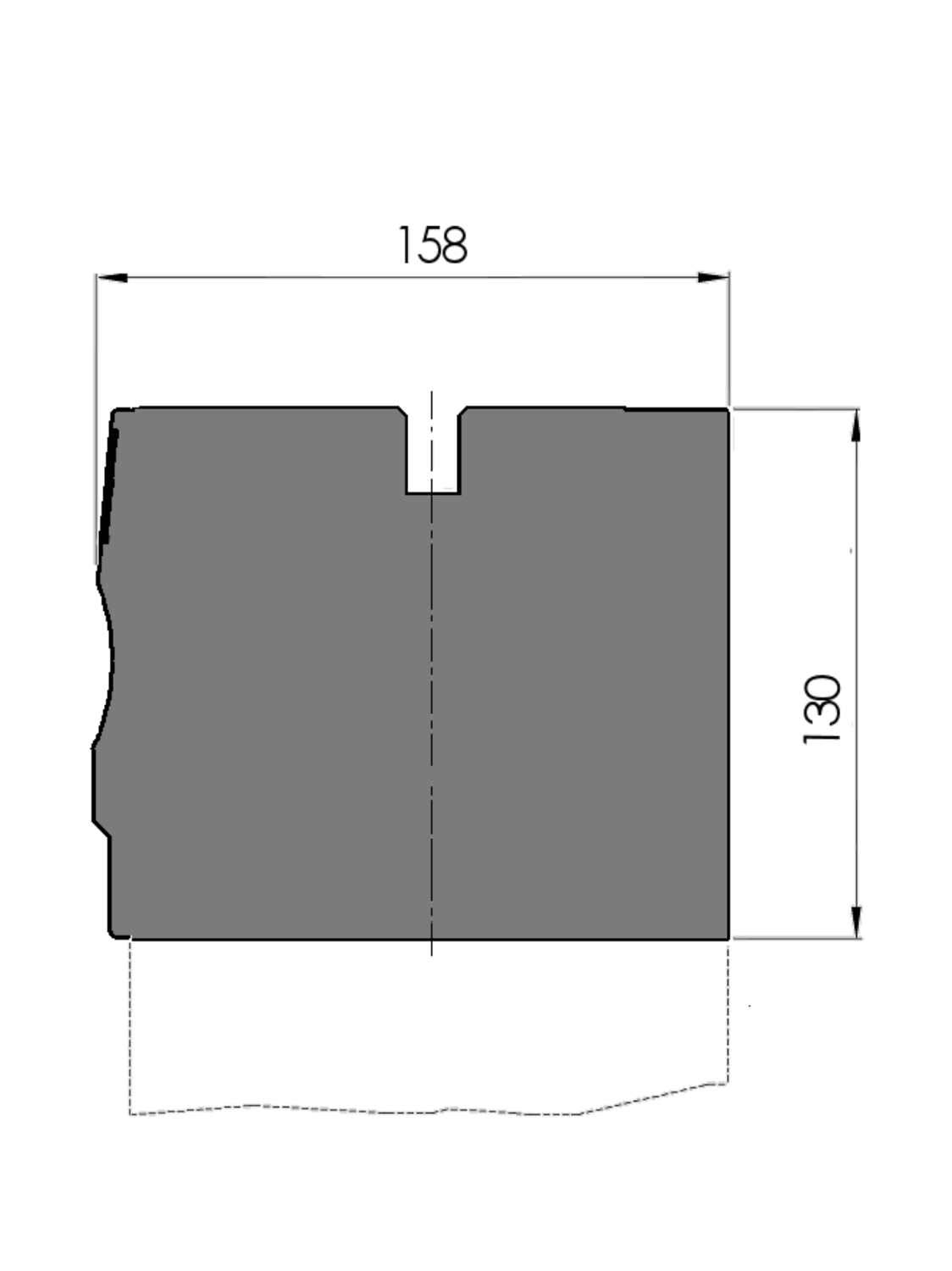

  • Working height H = 130mm
  • Width W = 158mm
  • Max. load = 800ton/m

Description

Custom Style New Standard Premium bottom tool holder,
Working height=130mm, Width=158mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Tx-alignment, Ty-alignment on the cover strip (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 154kg/m, max.load: 800ton/m.Delivery with coverstrip, hardenend guards and scale (front side, metric, "0" at the left).
Delivery without hydraulic power pack.
