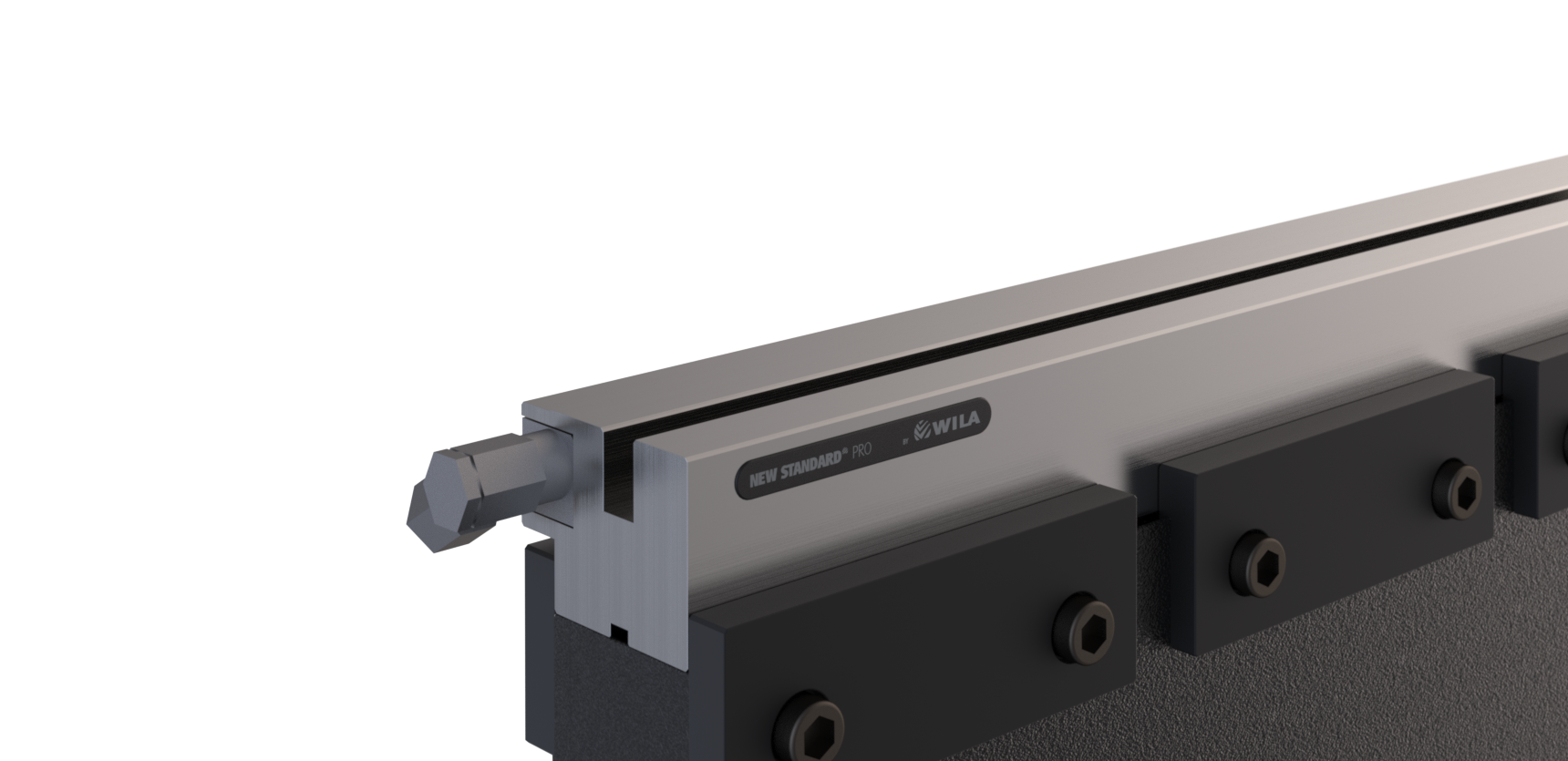

OB-I-HC/ES IV

OB-I-HC/ES IV

New Standard Pro Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = tang
  • Working height H = 55mm
  • Width W = 76mm
  • Max. load = 200ton/m

Description

Custom Style New Standard Pro bottom tool holder,

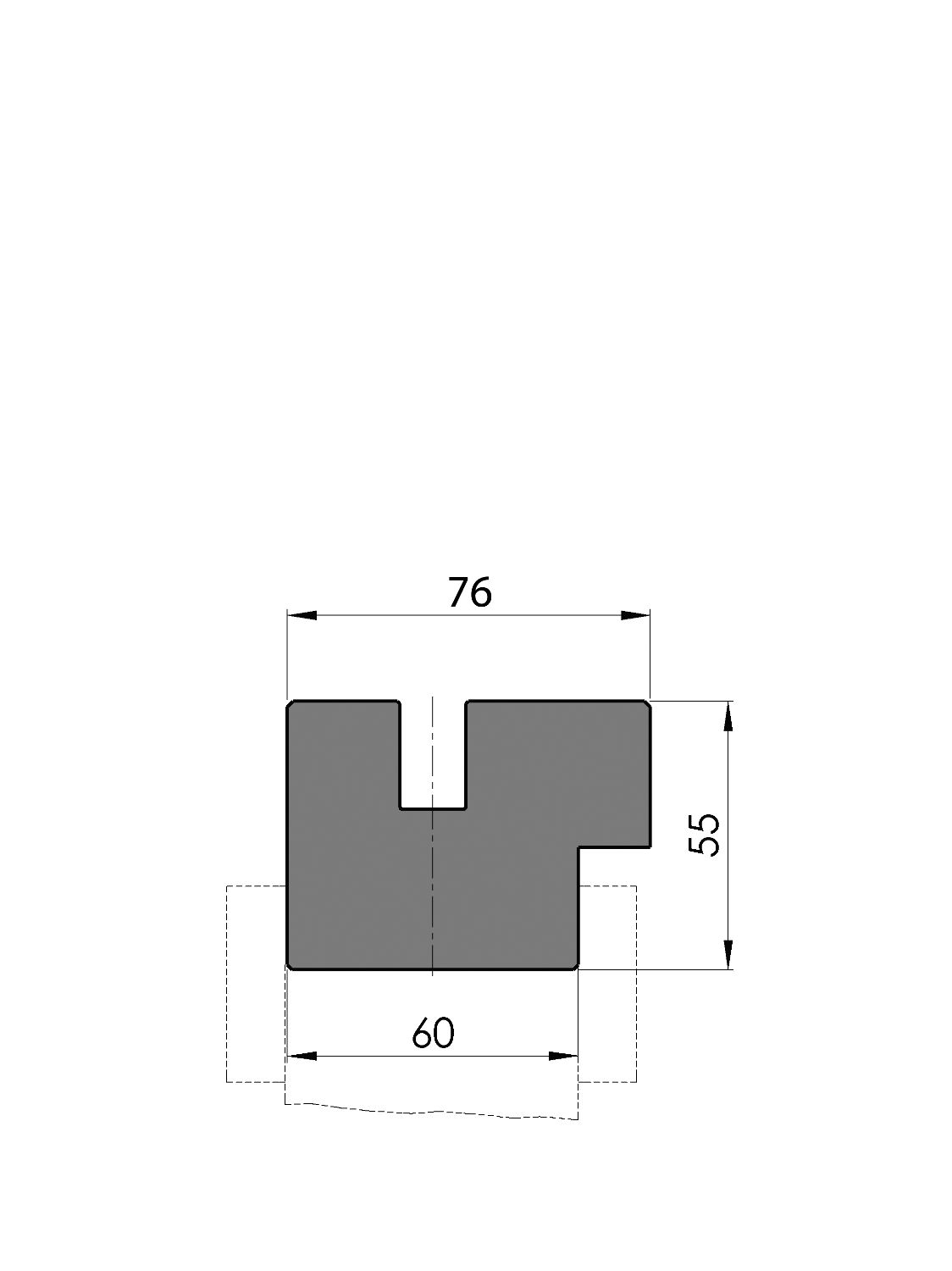

Working height=55mm, Width=76mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Material=C45 not hardened, weight: 26kg/m, max.load: 200ton/m.
Delivery without hydraulic power pack.
