OB-I-MC-TY/UPB

OB-I-MC-TY/UPB

New Standard Pro Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

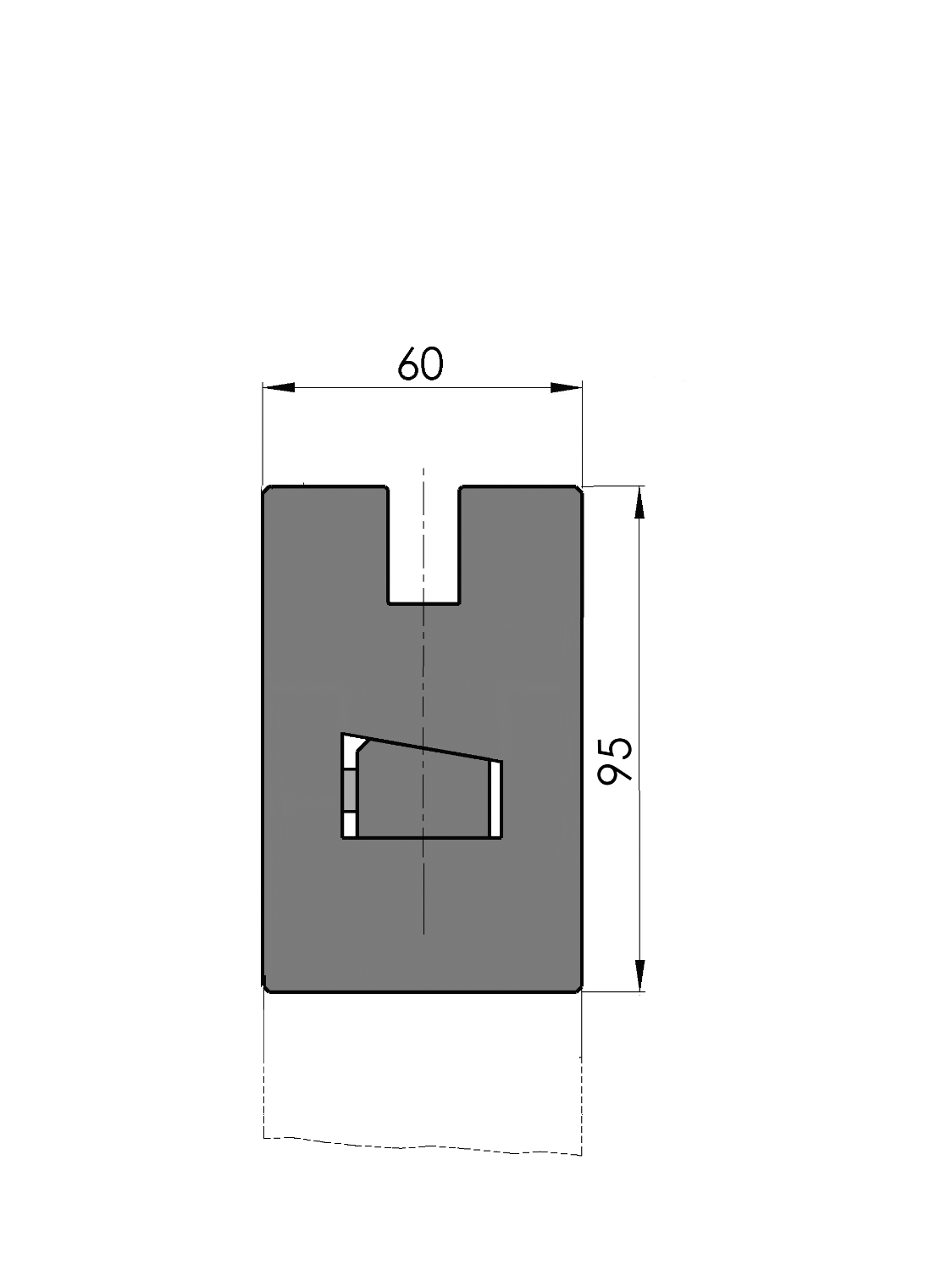

  • Working height H = 95mm
  • Width W = 60mm

Description

Custom Style New Standard Pro bottom tool holder,
Working height=95mm, Width=60mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25mm, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened.
