OB-I-SL-TY/ES IV

OB-I-SL-TY/ES IV

New Standard Pro Bottom Tool Holder
  • Clamping Type = Pneumatic
  • Adaption = tang
  • Vertical Alignment (Ty)
  • Working height H = 95mm
  • Width W = 85mm
  • Max. load = 200ton/m

Description

Custom Style New Standard Pro bottom tool holder with V-lock®.,

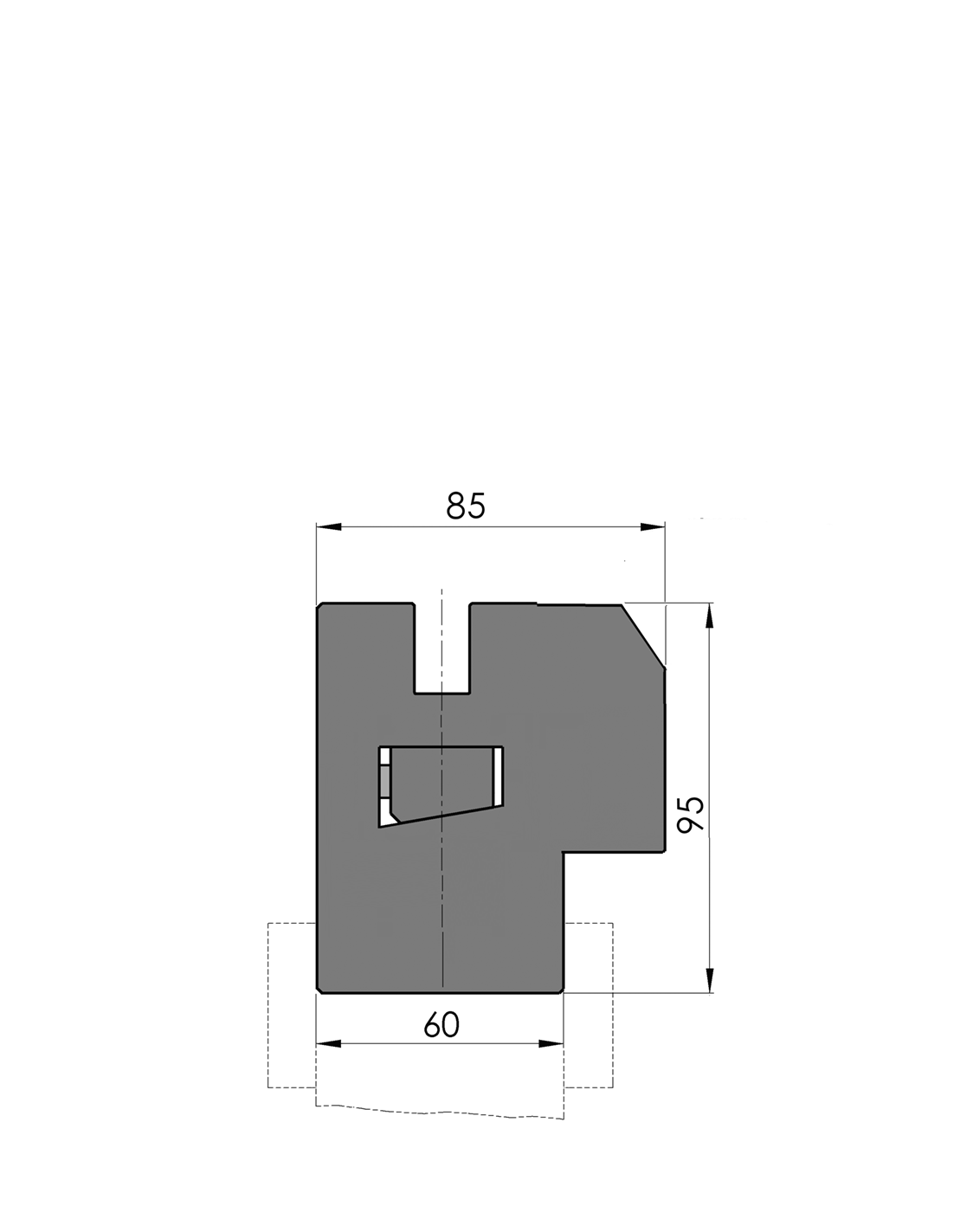

Working height=95mm, Width=85mm, provided with Amada adaptation Width=60.00mm, pneumatic clamping, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, weight: 46.5kg/m, max.load: 200ton/m.
