OB-I-SL-TY/UPB

OB-I-SL-TY/UPB

New Standard Pro Bottom Tool Holder
  • Clamping Type = Pneumatic
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

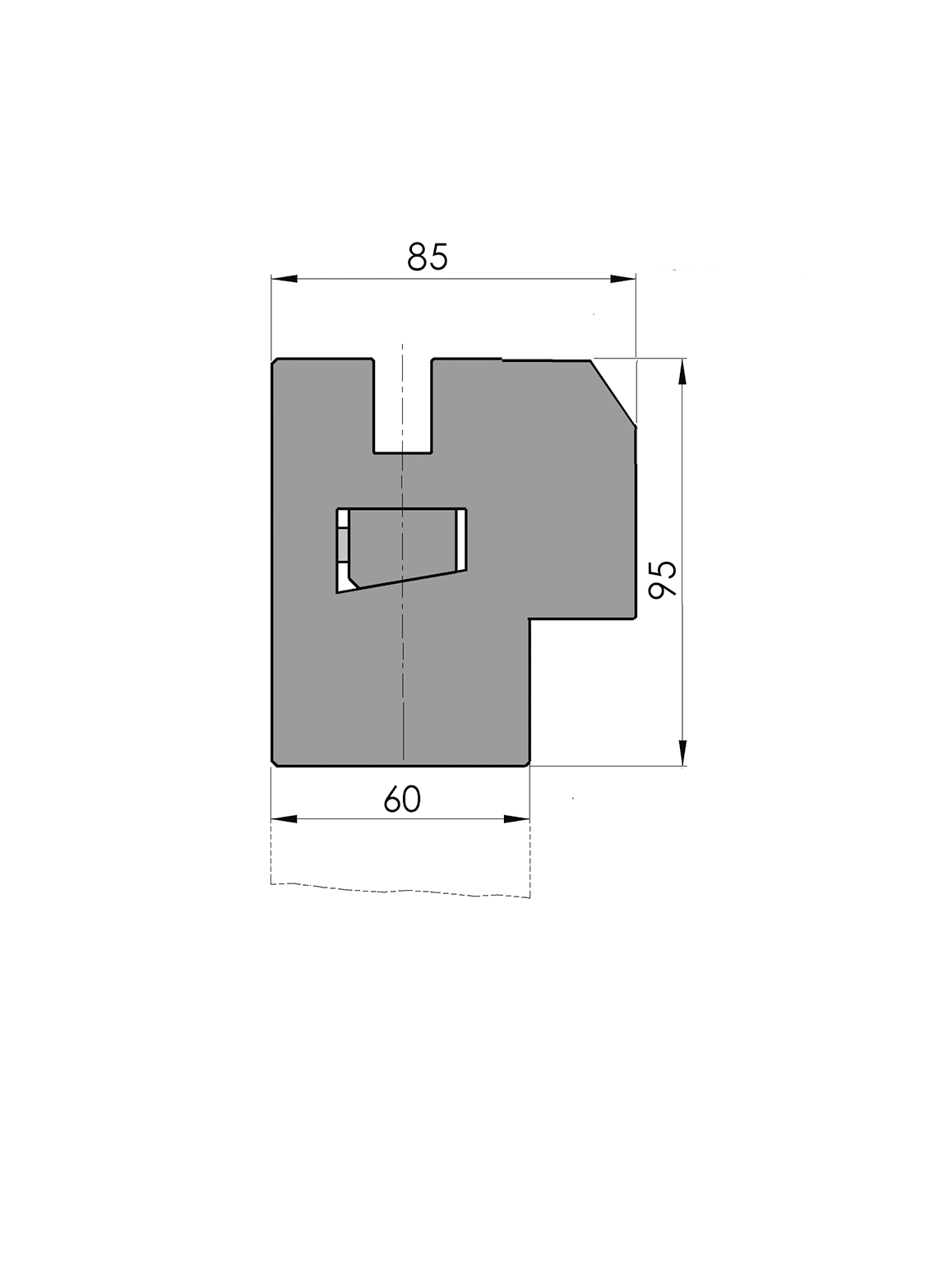

  • Working height H = 95mm
  • Width W = 85mm
  • Max. load = 200ton/m

Description

Custom Style New Standard Pro bottom tool holder with V-lock®.,
Working height=95mm, Width=85mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, weight: 46.9kg/m, max.load: 200ton/m.
