OB-II-MC/ES IV

OB-II-MC/ES IV

New Standard Premium Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = tang
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

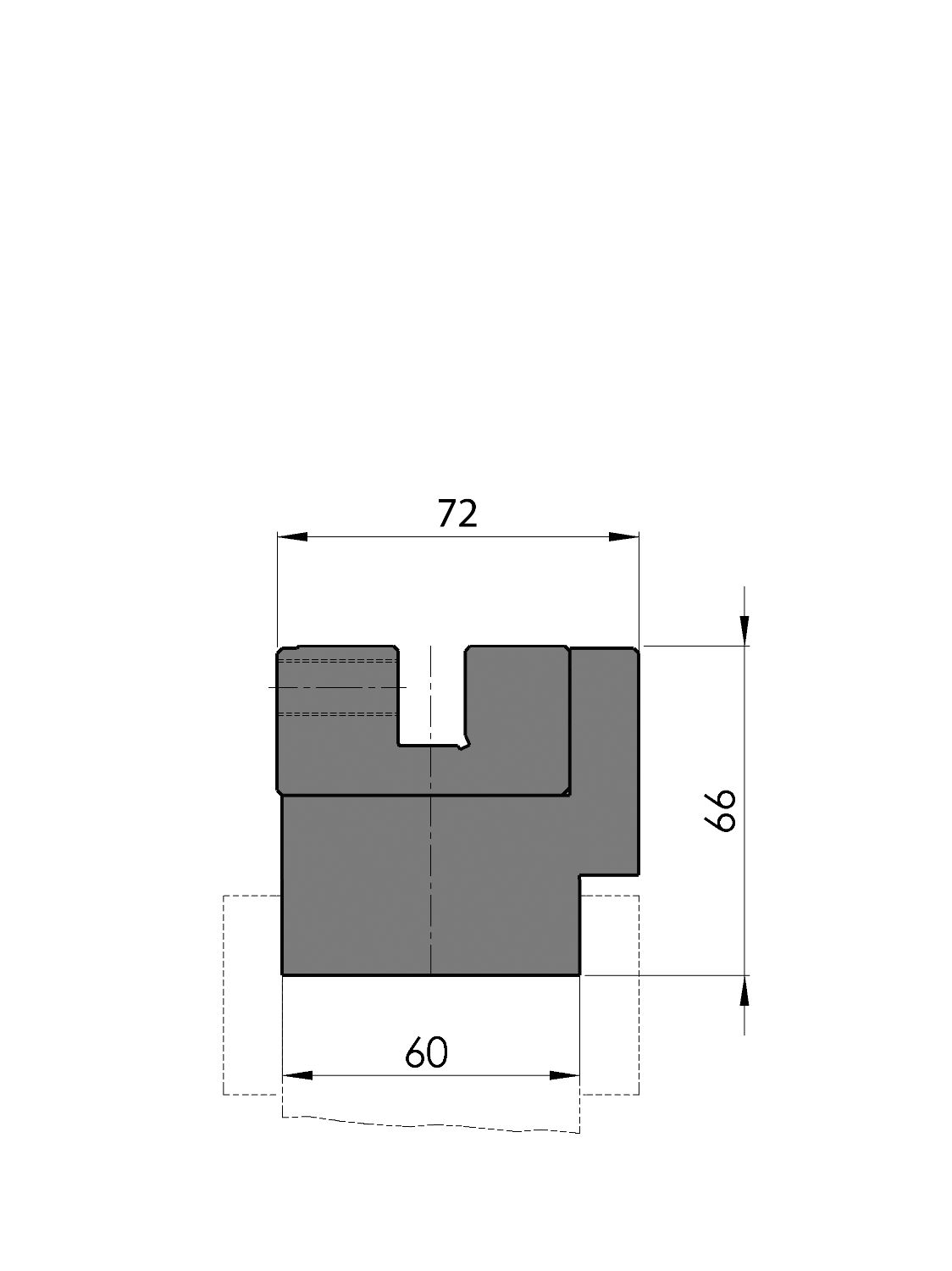

  • Working height H = 66mm
  • Width W = 72mm

Description

Custom Style New Standard Premium bottom tool holder,
Working height=66mm, Width=72mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 25,5mm, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).hardenend
