OB-II-MC-TY/UPB

OB-II-MC-TY/UPB

New Standard Premium Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

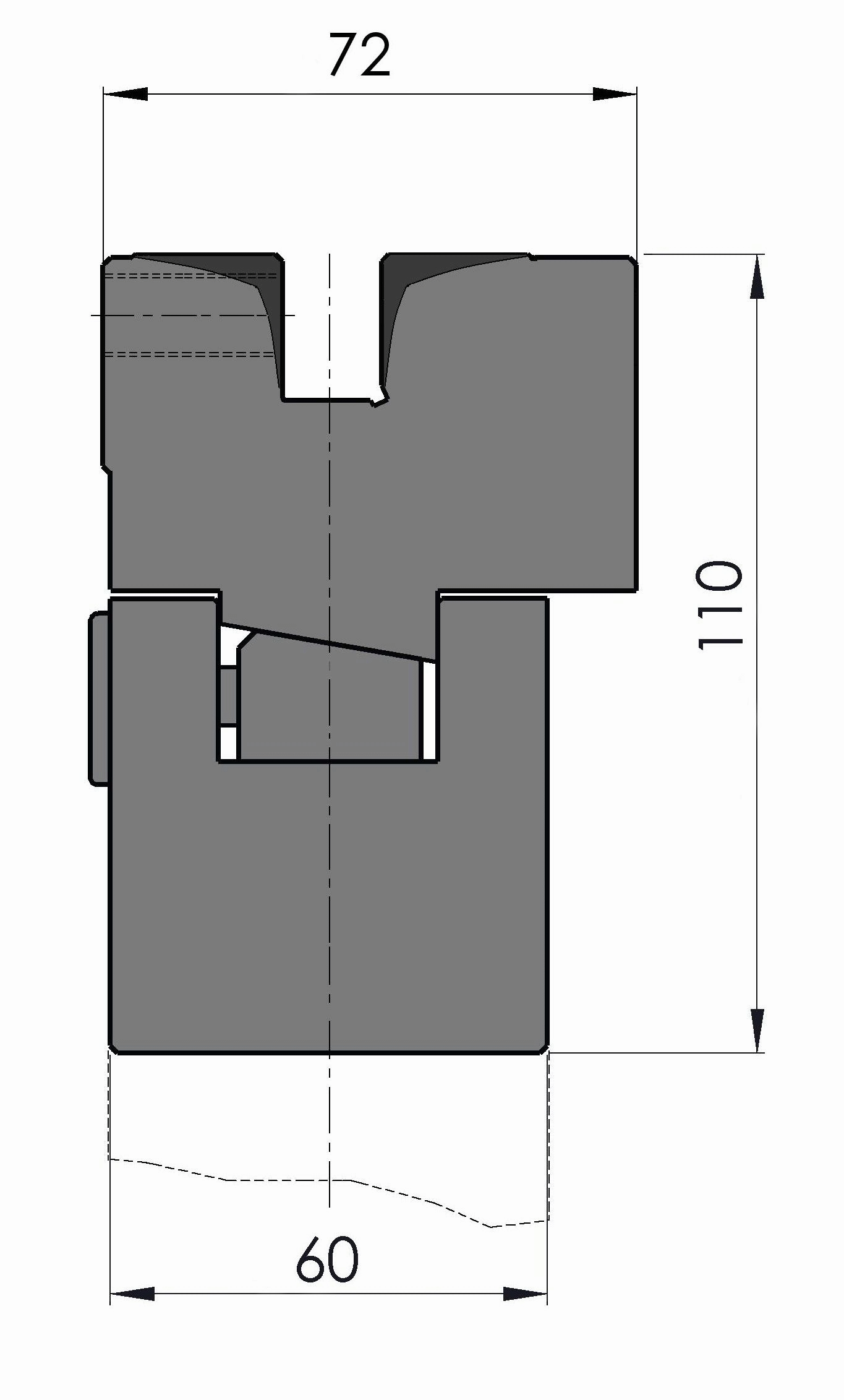

  • Working height H = 110mm
  • Width W = 72mm
  • Max. load = 300ton/m

Description

Custom Style New Standard Premium bottom tool holder,
Working height=110mm, Width=72mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 25,5mm, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 42.5kg/m, max.load: 300ton/m.hardenend
