NSCL-I-HC-TY/ES II

NSCL-I-HC-TY/ES II

New Standard Pro Clamping
  • Clamping Type = Hydraulic
  • Adaption = upper adaptation
  • Working height H = 100mm
  • Width W = 93mm
  • Max. load = 250ton/m

Description

New Standard Pro Clamping

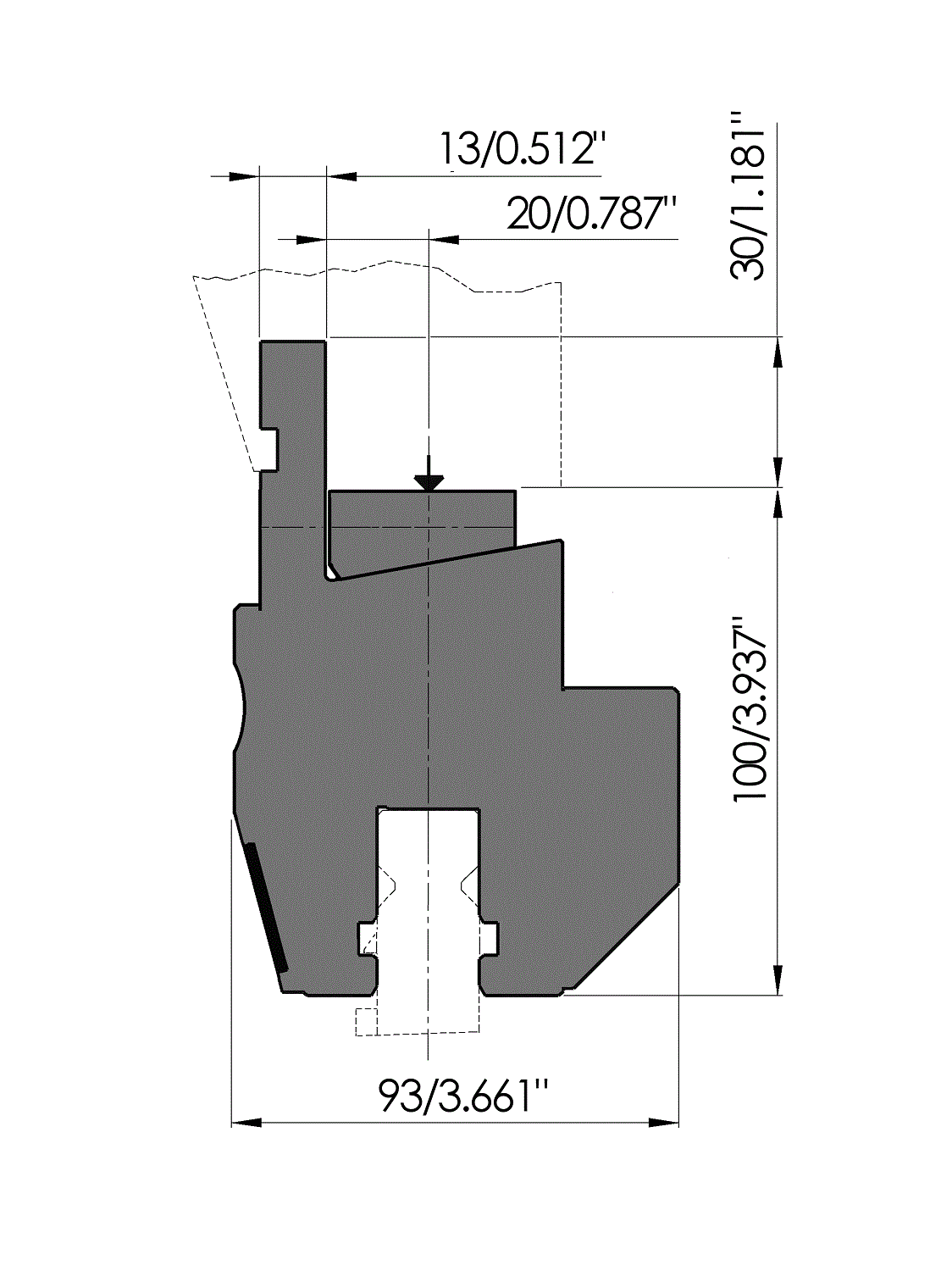

Working height=100mm, Width=93mm, provided with Amada adaptation (center line at 20mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened, Weight=48kg/m, Max. load=250ton/m.
Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
