NSCL-I-MC-TY/ES II

NSCL-I-MC-TY/ES II

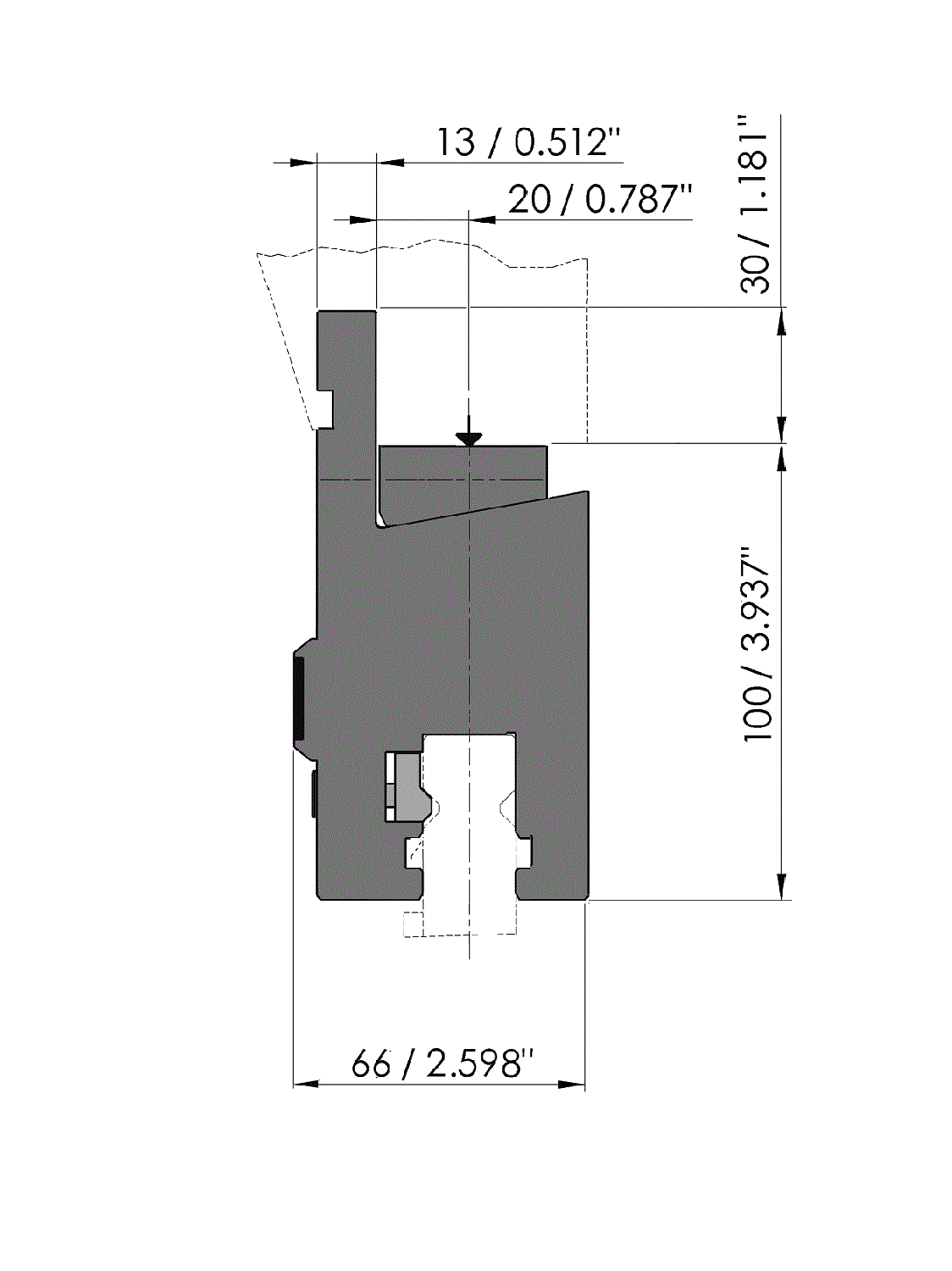

New Standard Pro Clamping
  • Clamping Type = Mechanical
  • Adaption = upper adaptation
  • Working height H = 100mm
  • Width W = 66mm

Description

New Standard Pro Clamping
Working height=100mm, Width=66mm, provided with Amada adaptation (center line at 20mm) with crowning key (Ty-alignment), manually by means of push and pull screws, mechanical clamping by means of clamping bars, Material=C45 not hardened.
Delivery with coverstrip and scale ("0" at the left).Delivery without guards.
