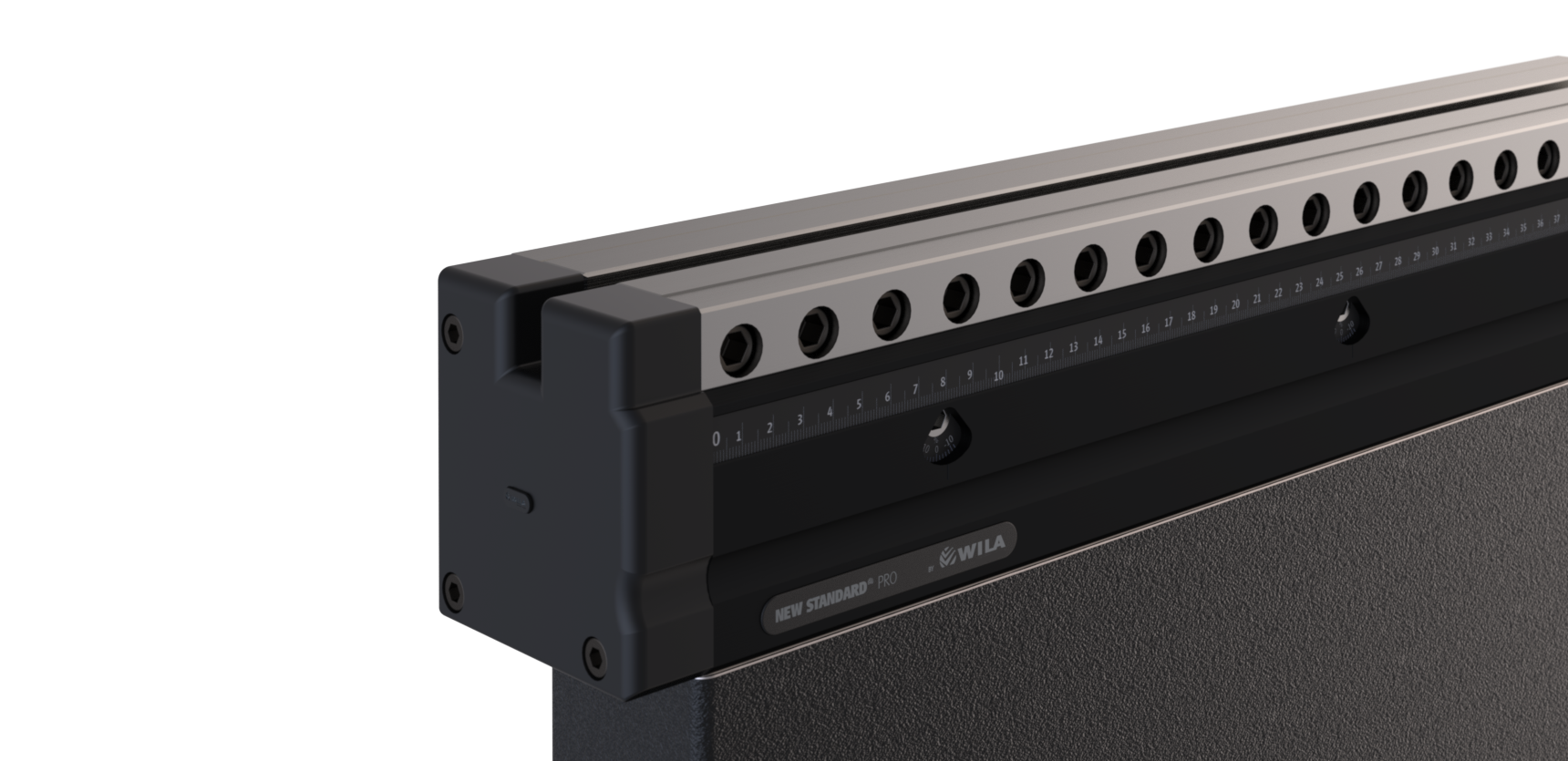

NSCR-I-MC-CNC/UPB

NSCR-I-MC-CNC/UPB

New Standard Pro Crowning
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

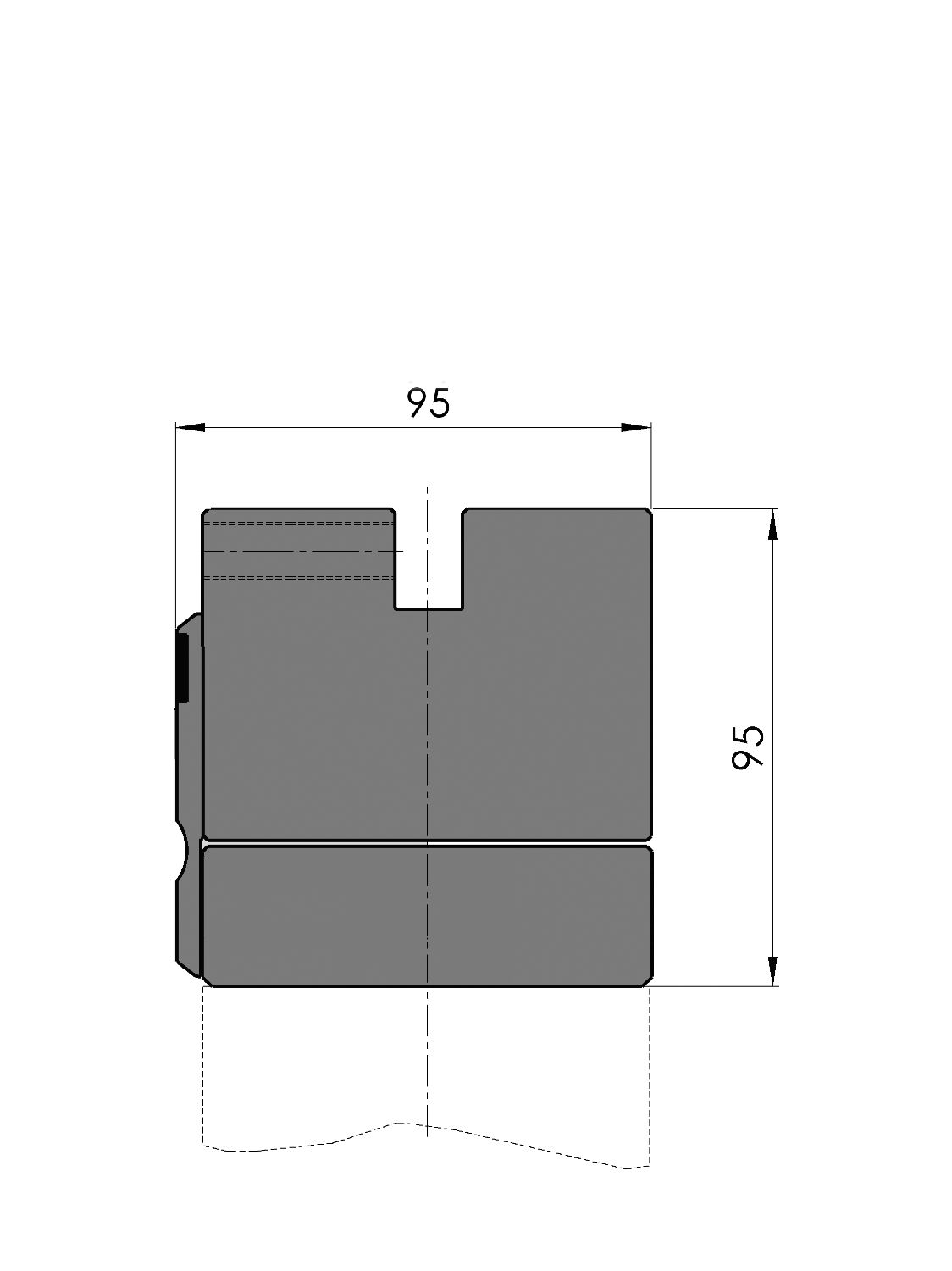

  • Working height H = 95mm
  • Width W = 95mm
  • Max. load = 200ton/m

Description

New Standard Pro Crowning,
Working height=95mm, Width=95mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm.
Crowning: CRM7 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=C45 not hardened, weight: 64.7kg/m, max.load: 200ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left).
Delivery without guards and mounting hardware.
