NSCR-II-MC-CNC/UPB

NSCR-II-MC-CNC/UPB

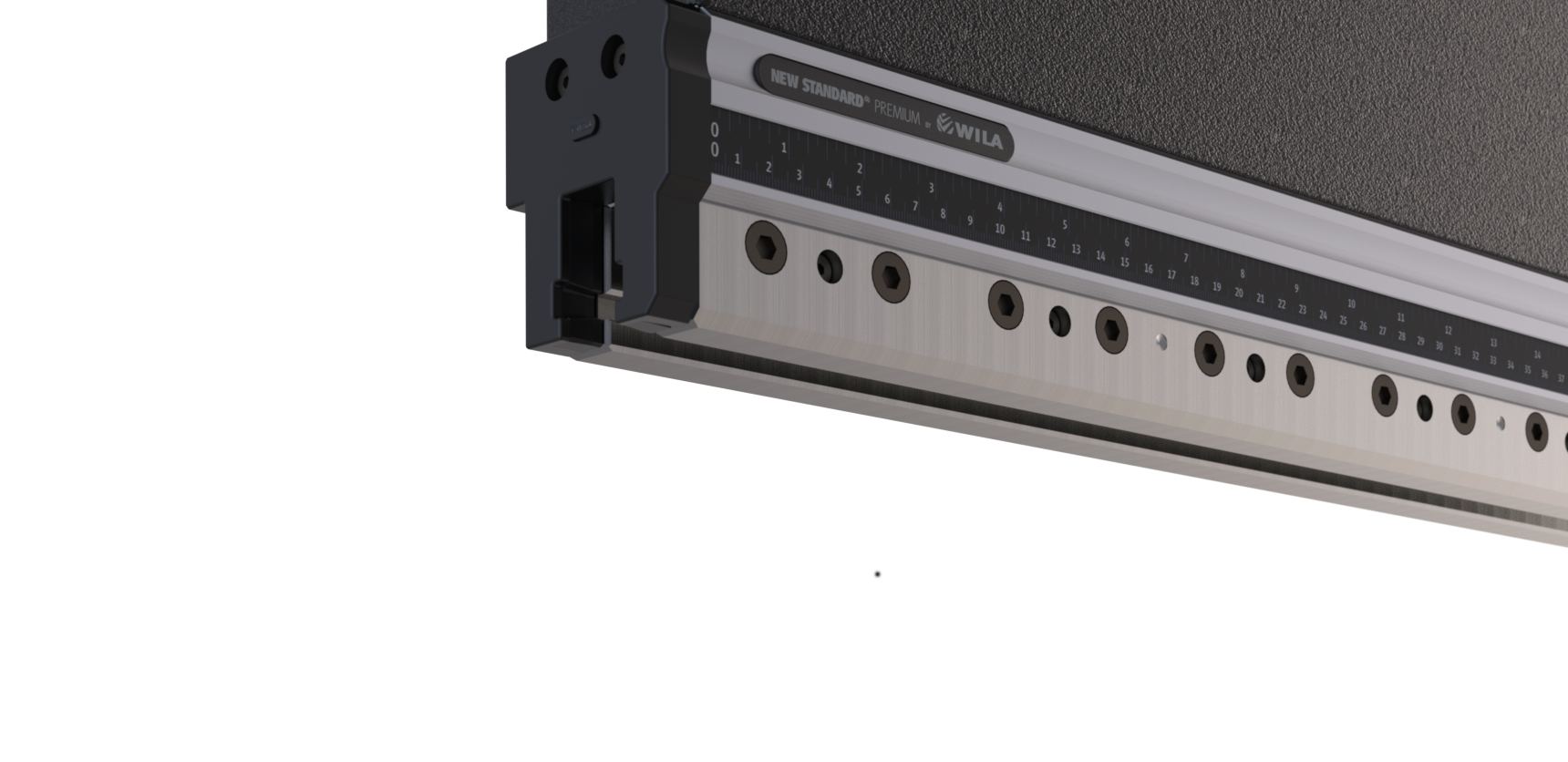

New Standard Premium Crowning
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

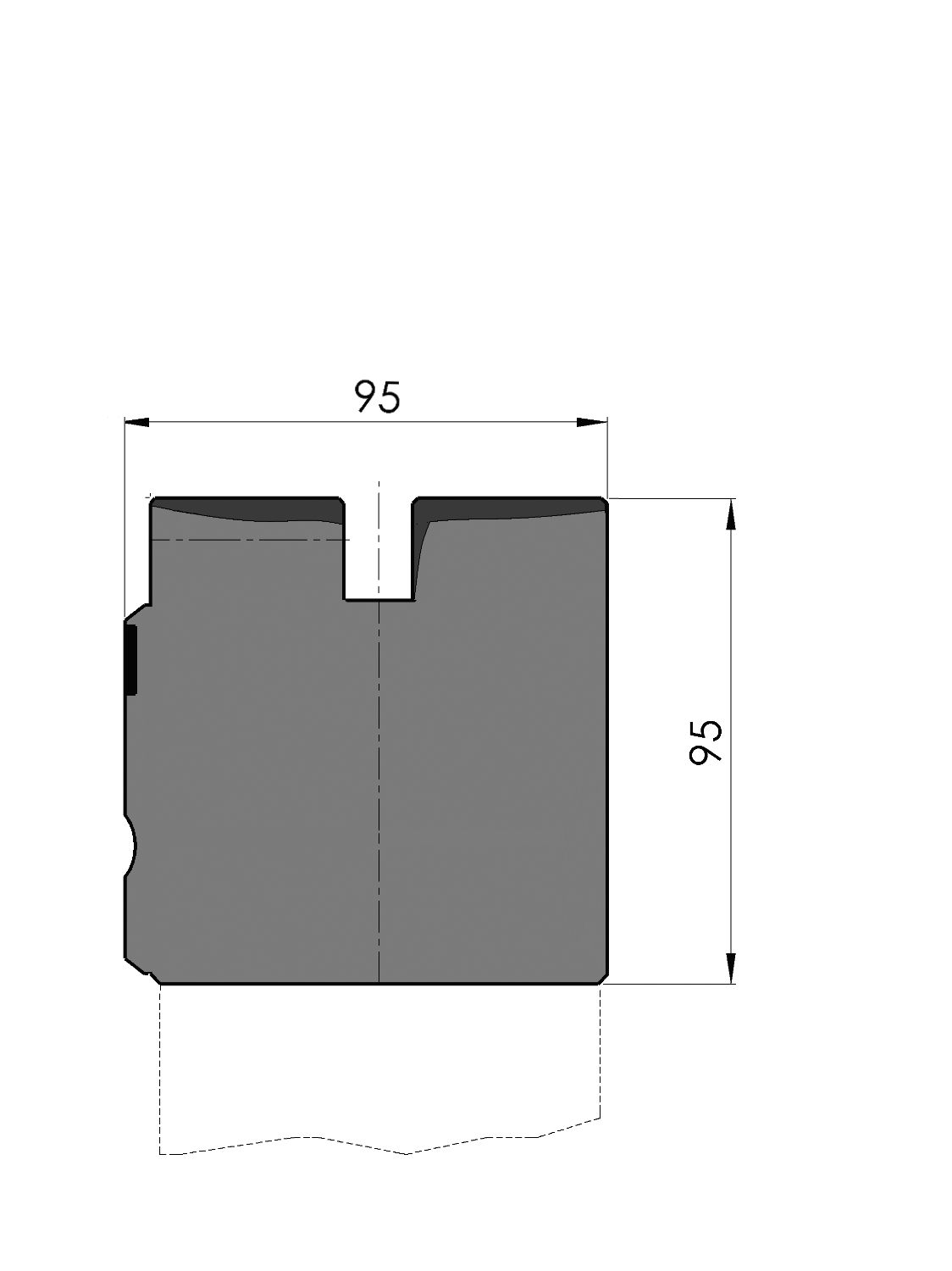

  • Working height H = 95mm
  • Width W = 95mm
  • Max. load = 300ton/m

Description

New Standard Premium Crowning,
Working height=95mm, Width=95mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 25,5mm.
Crowning: CRM12 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment on the cover strip (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 63.5kg/m, max.load: 300ton/m.Delivery with coverstrip, hardenend guards and scale (front side, metric, "0" at the left).
