INZU-005

INZU-005

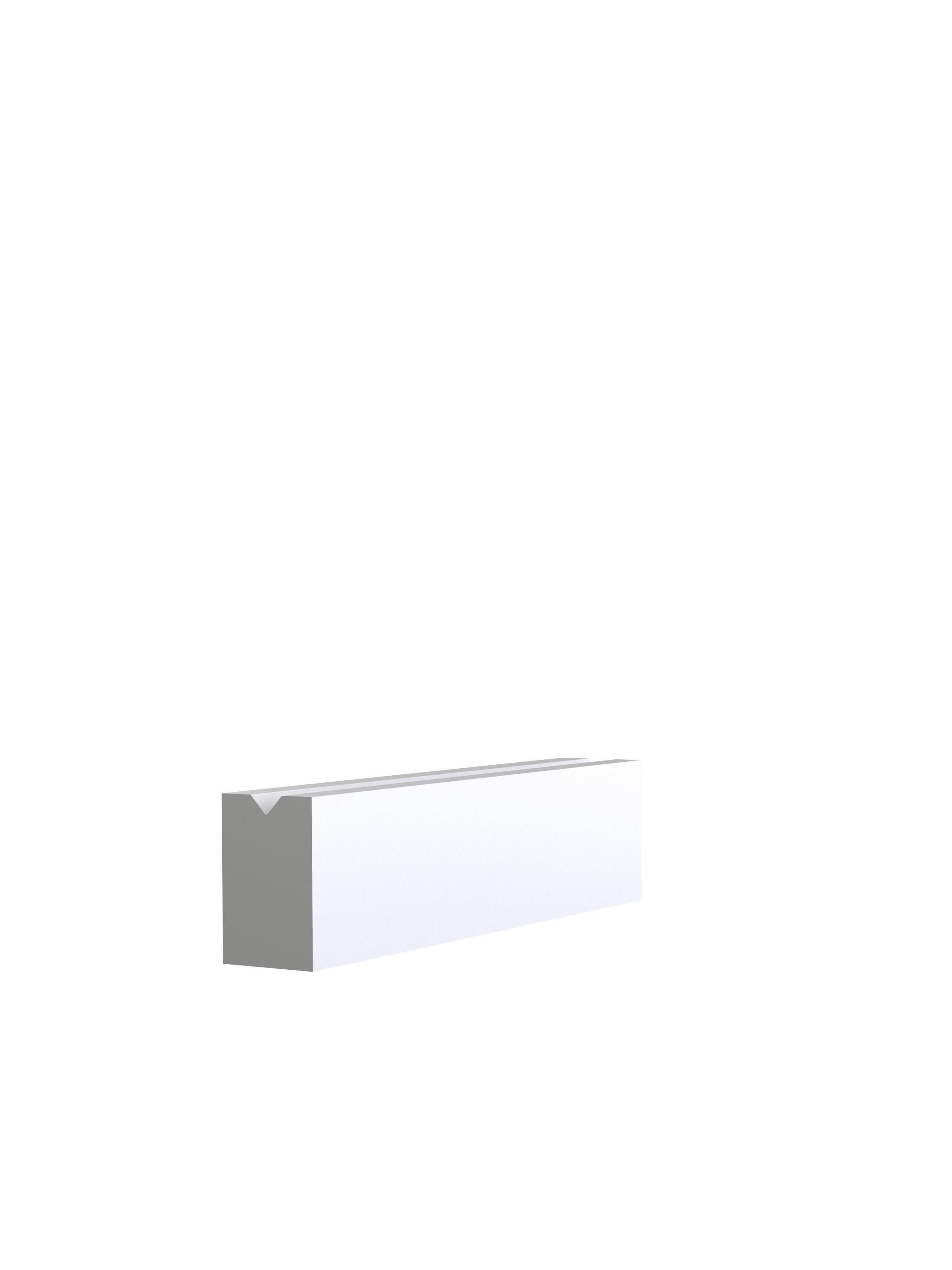

New Standard Non-Marking Accessory
  • Insert

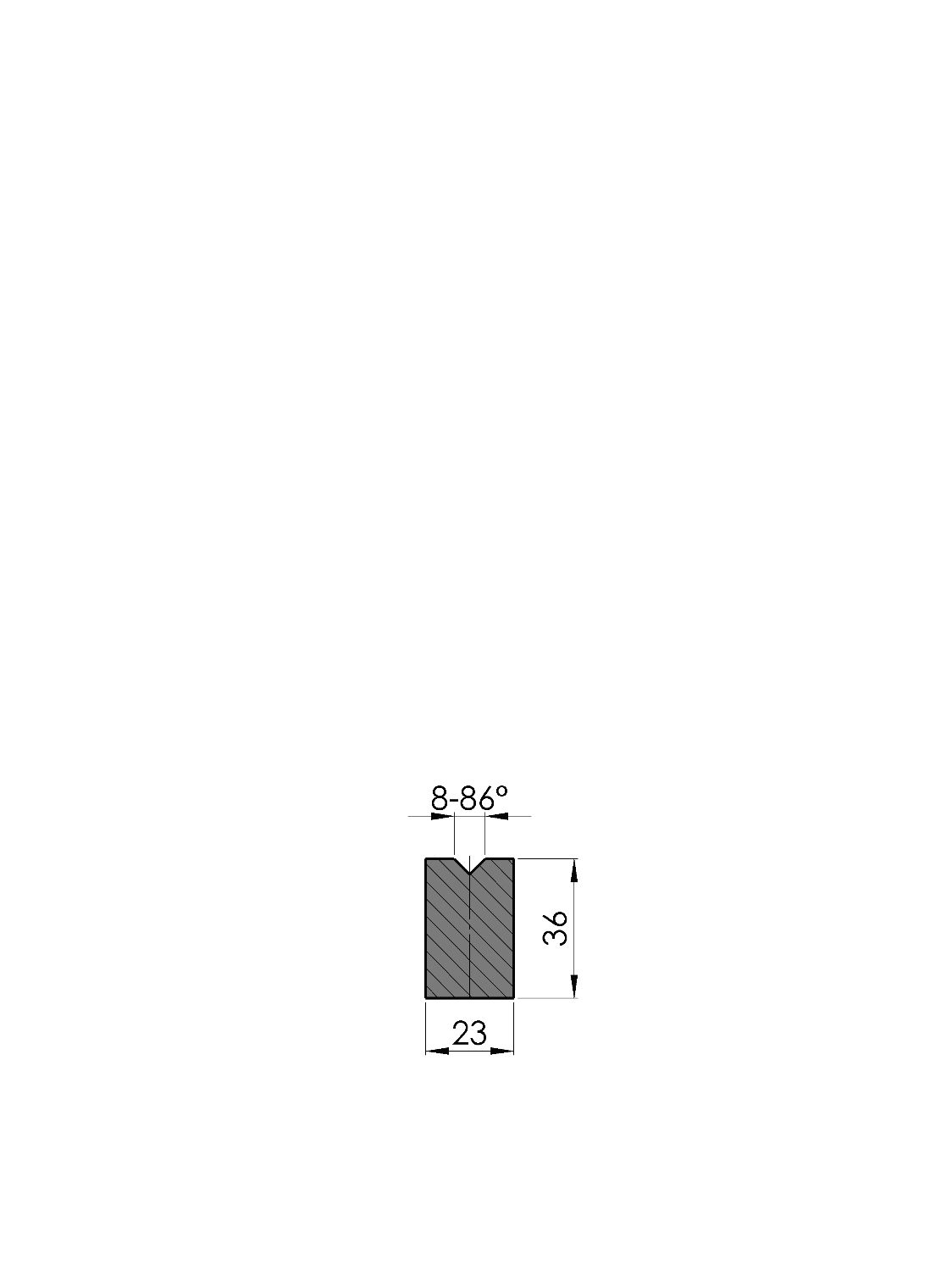

  • Working height H = 36mm
  • Width W= 23mm
  • V-opening = 8mm/86°
  • Radii R = 1mm
  • Material = PA6G, not hardened
  • Weight = 0.93kg/m
  • Max. load = 20ton/m
  • Description

    Insert
    Working height=36mm, Width=23mm, V-opening=8mm/86°, Radii=1mm, Material=PA6G, not hardened, Weight=0.93kg/m, Max. load=20ton/m.
