ASCL-I-HC/AS I

ASCL-I-HC/AS I

American Style Clamping
  • Clamping Type = Hydraulic
  • Adaption = upper adaptation
  • Working height H = 40.6mm
  • Width W = 77.5mm
  • Max. load = 230ton/m

Descripción

American Style Clamping

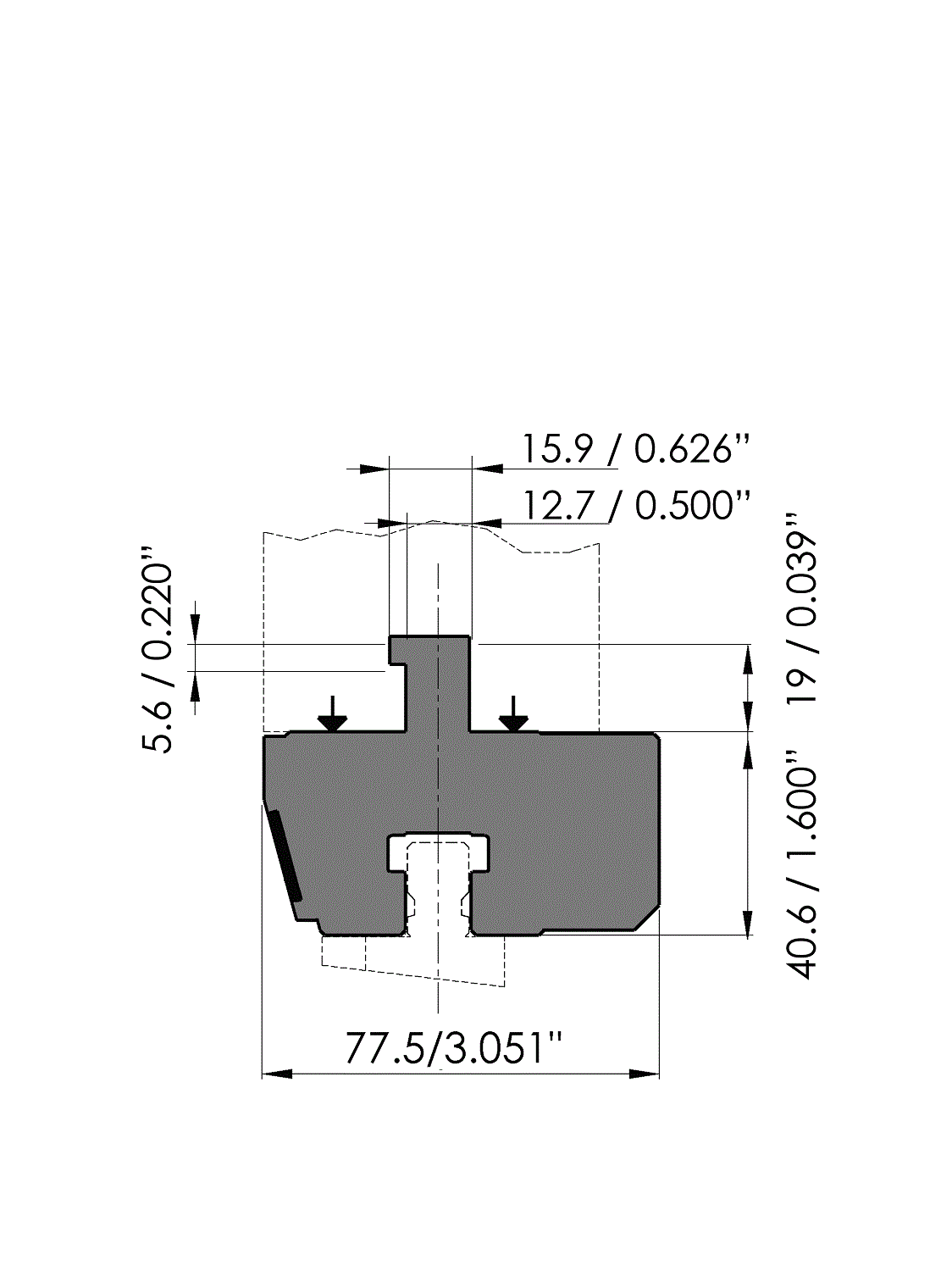

Working height=40.6mm, Width=77.5mm, provided with American Style adaptation, hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened, Weight=1850kg/m, Max. load=230ton/m.
Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
