ASCL-I-HC/ES II

ASCL-I-HC/ES II

American Style Clamping
  • Clamping Type = Hydraulic
  • Adaption = upper adaptation
  • Working height H = 40.6mm
  • Width W = 81mm

Descripción

American Style Clamping

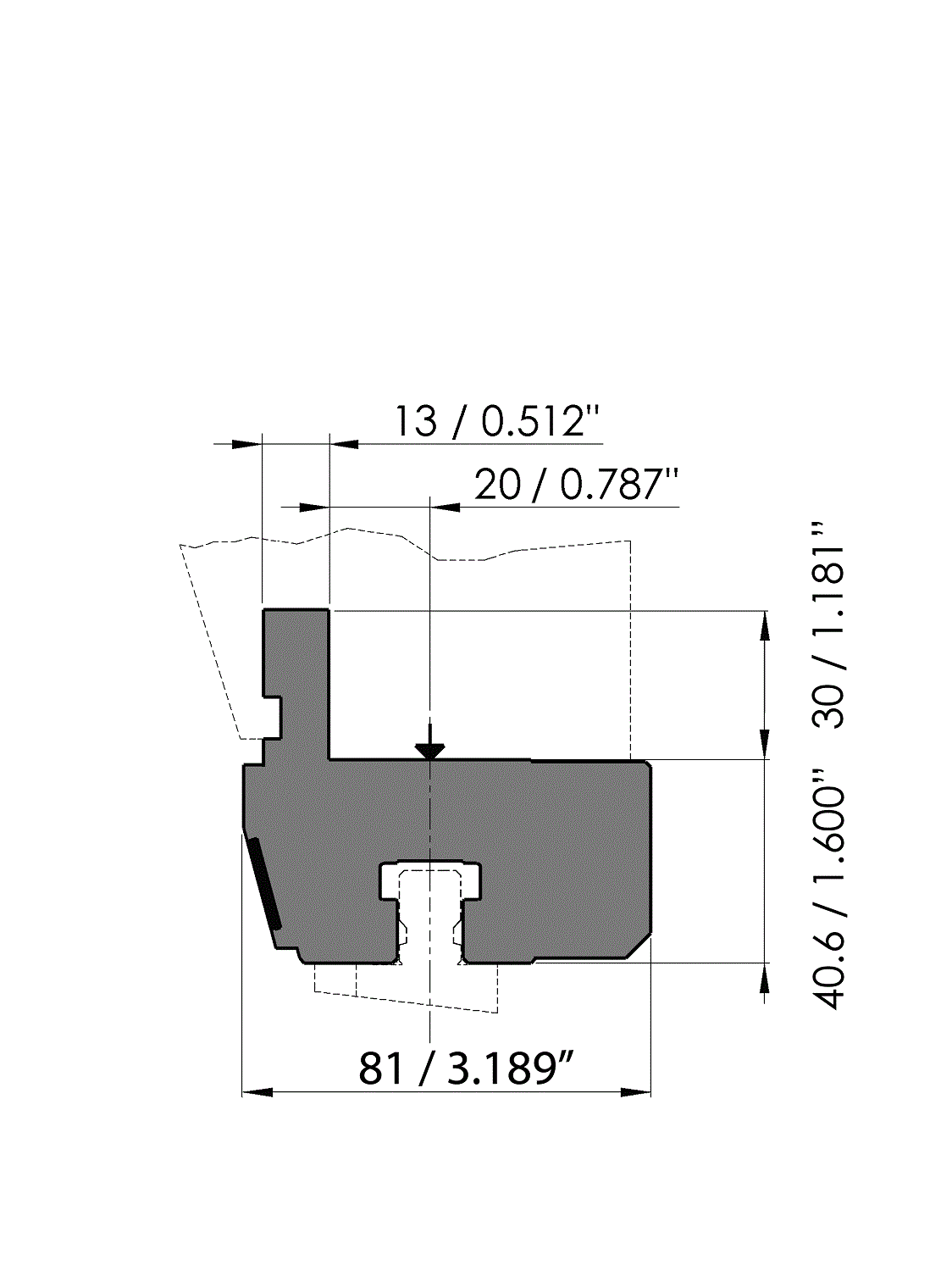

Working height=40.6mm, Width=81mm, provided with Amada adaptation (center line at 20mm) , hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened.
Delivery with coverstrip and scale ("0" at the left).Delivery without hydraulic power pack and guards.
