NSCR-I-SL-CNC/UPB

NSCR-I-SL-CNC/UPB

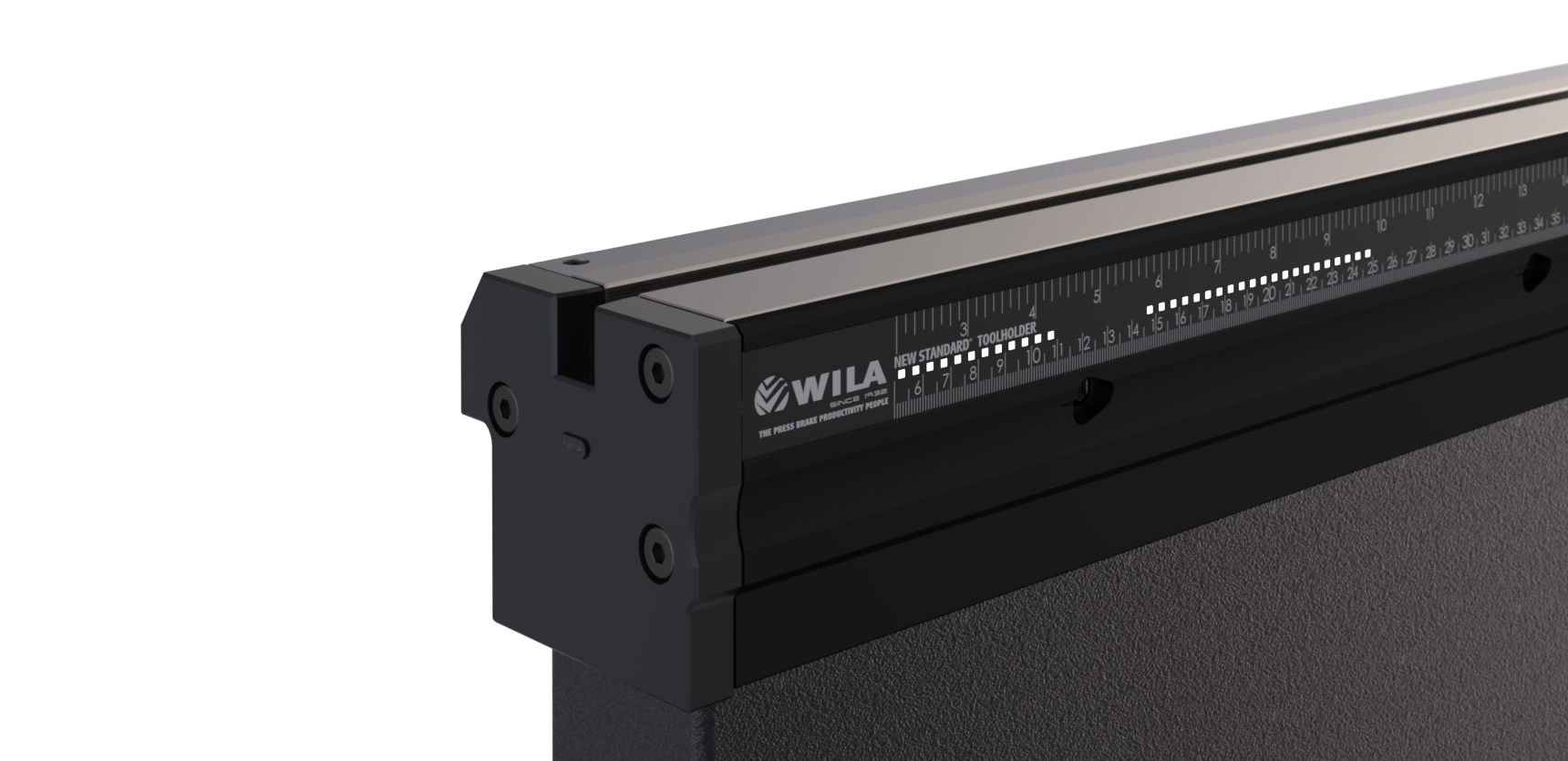

New Standard Pro Crowning
  • Clamping Type = Pneumatic
  • Adaption = UPB hole pattern
  • Vertical Alignment (Ty)
  • Horizontal Alignment (Tx)

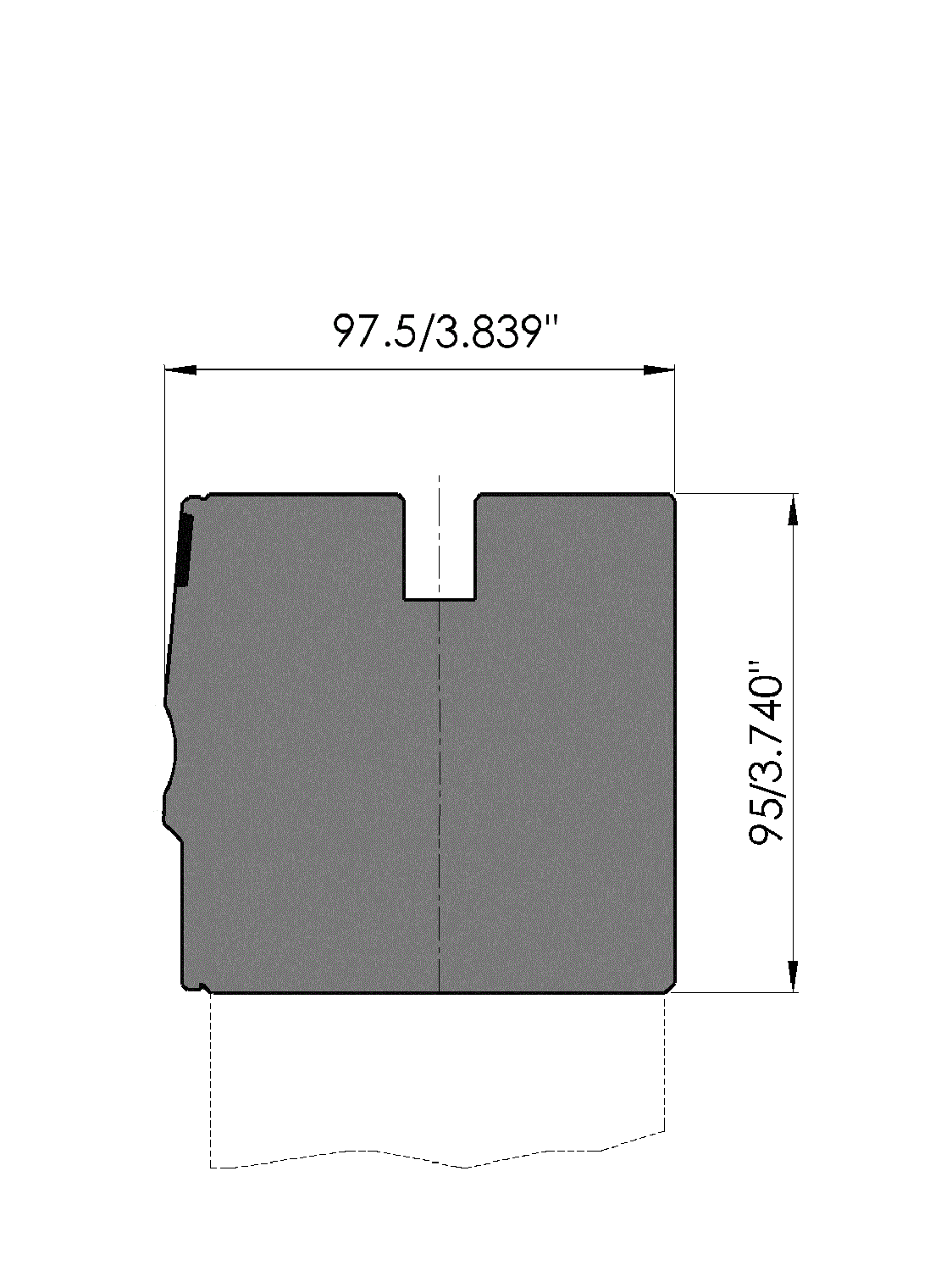

  • Working height H = 95mm
  • Width W = 100mm
  • Max. load = 200ton/m

Descripción

New Standard Pro Crowning with V-lockĀ®.,
Working height=95mm, Width=100mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping.
Crowning: CRM7 motorized (400V, 50Hz, 3Ph) at the right hand side, Tx-alignment, Ty-alignment behind the cover strip (manually by means of single point adjustment), Material=C45 not hardened, max.load: 200ton/m.Delivery with coverstrip, guards and scale (front side, Inch-metric, "0" at the left).
