NSCL-I-MC/UPB

NSCL-I-MC/UPB

New Standard Pro Clamping
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Working height H = 80mm
  • Width W = 61mm

Descripción

New Standard Pro Clamping

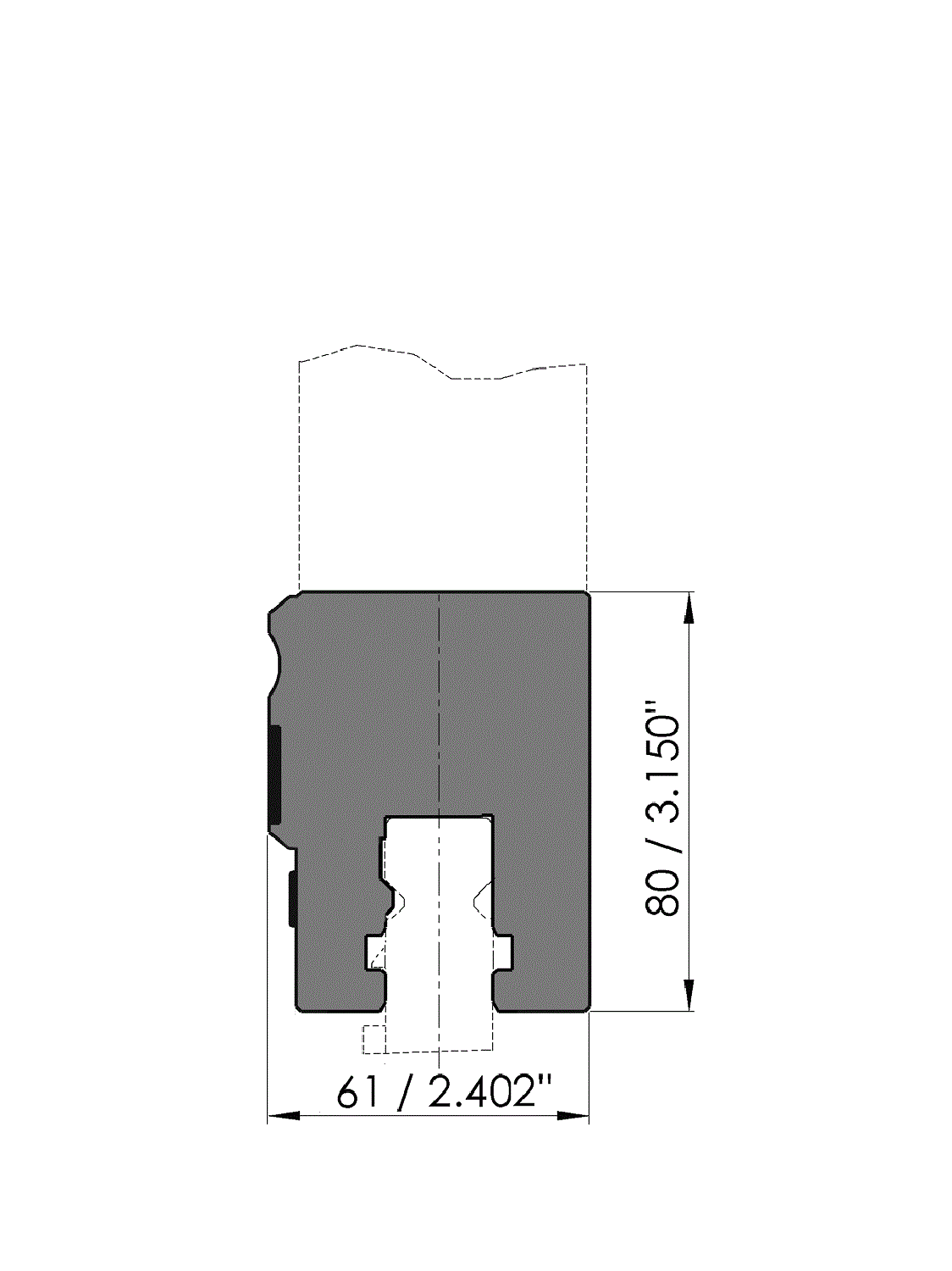

Working height=80mm, Width=61mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, mechanical clamping by means of clamping bars, Material=C45 not hardened.
Delivery with coverstrip and guards scale ("0" at the left).Delivery without guards.
