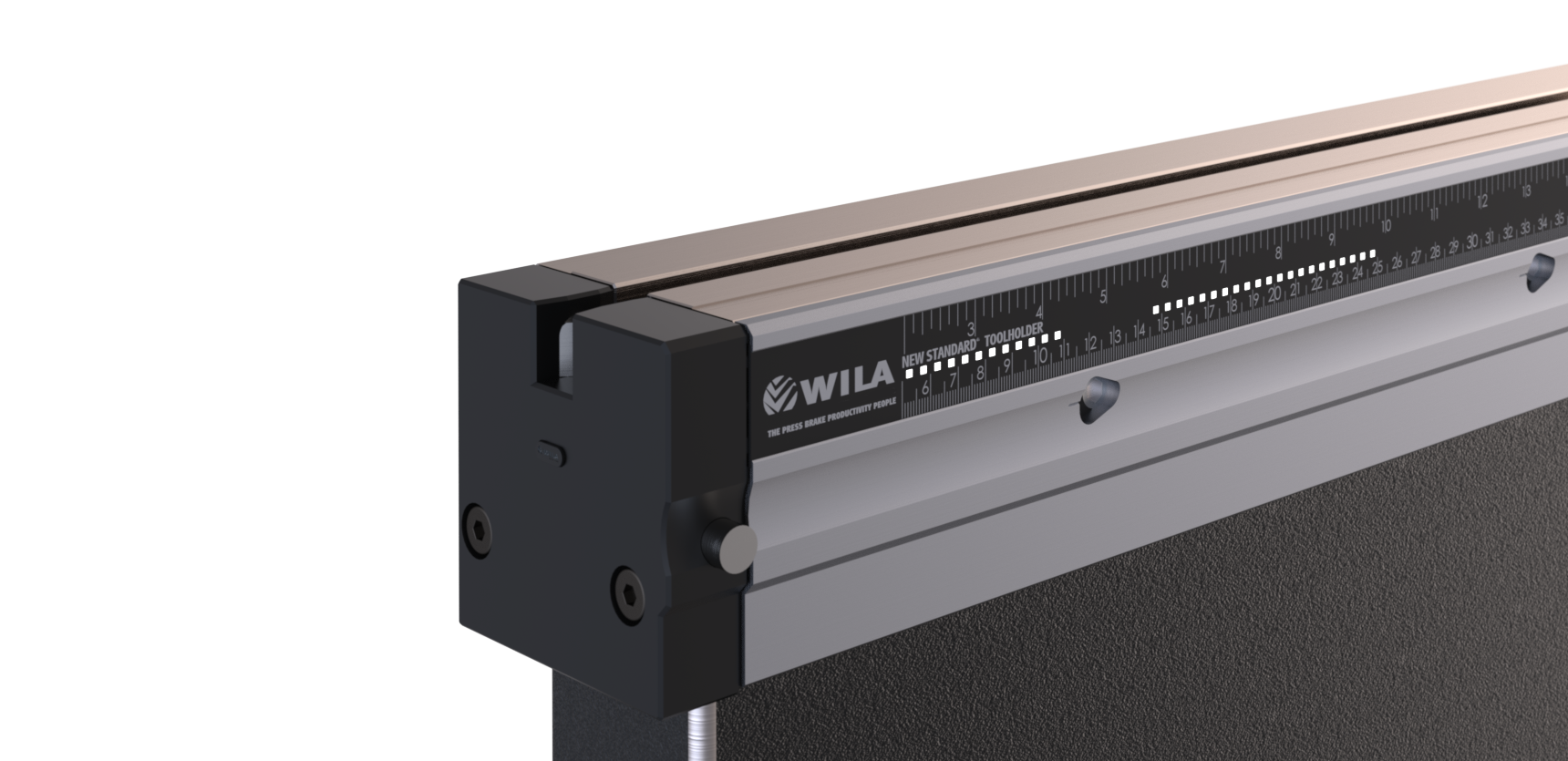

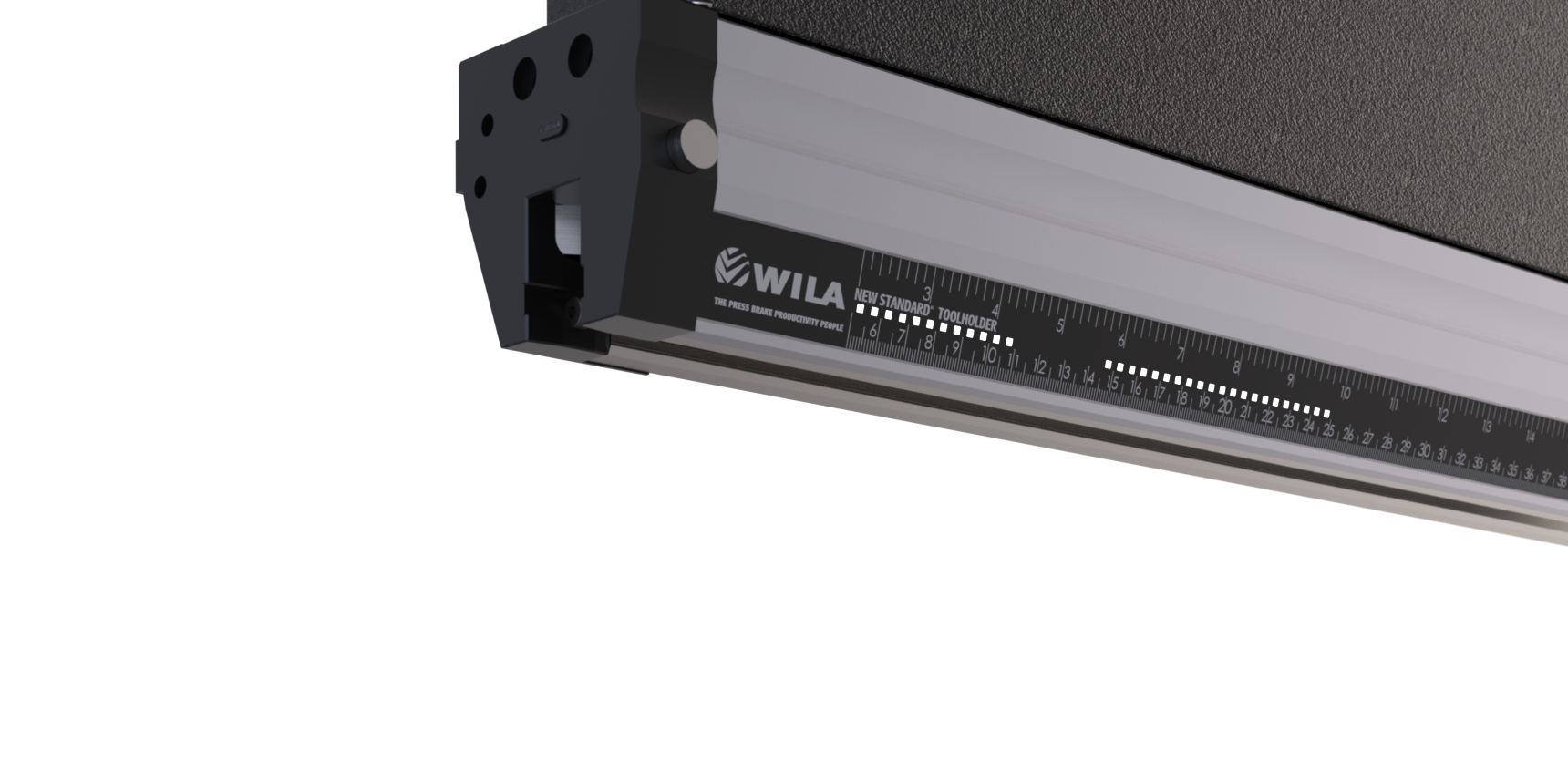

New Standard Premium Clamping

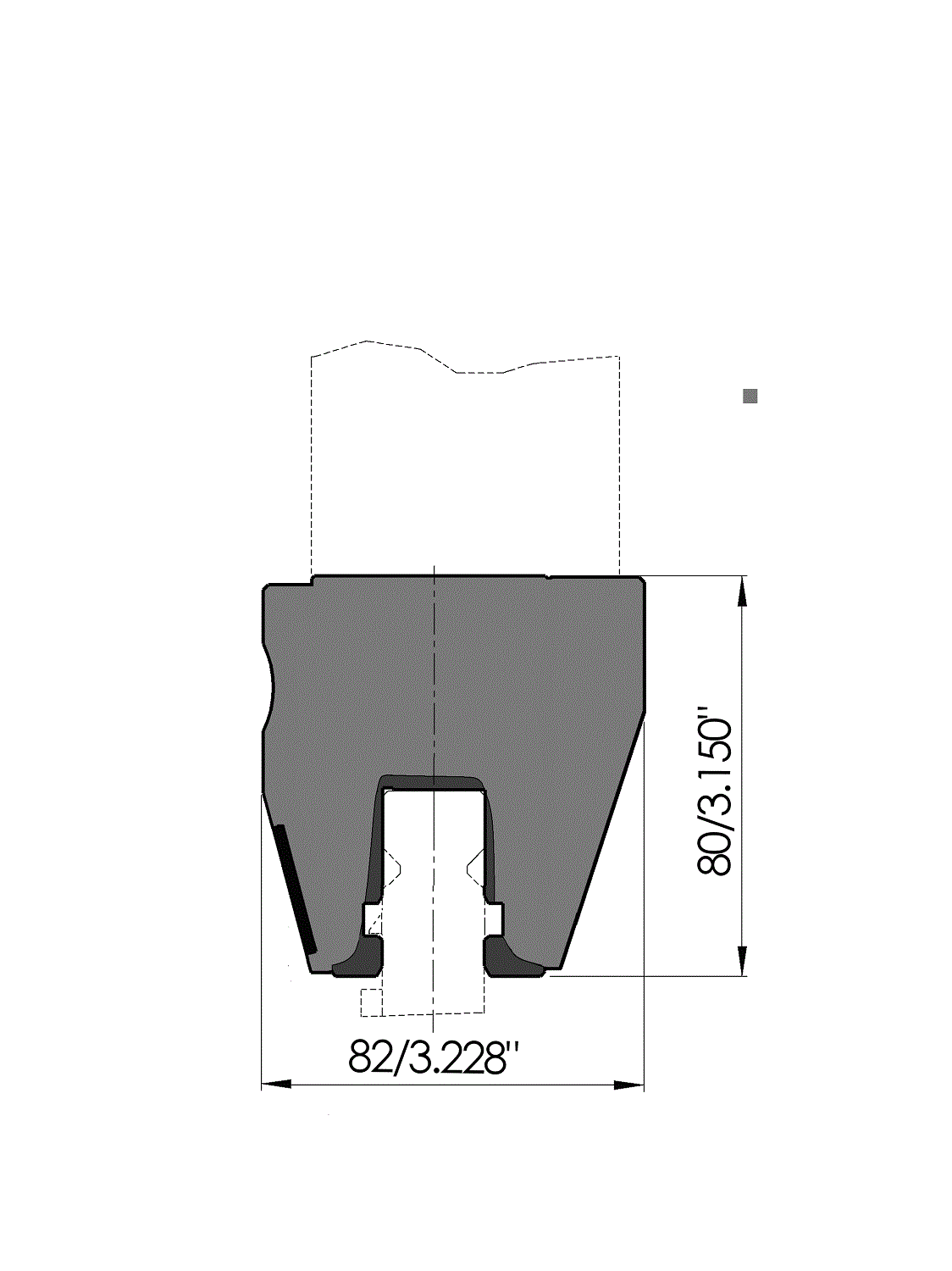

Working height=80mm, Width=82mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left top, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).
Delivery with coverstrip, guards and scale ("0" at the left).Delivery without hydraulic power pack.
