OB-I-HC-TY/ES IV

OB-I-HC-TY/ES IV

New Standard Pro Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = tang
  • Vertical Alignment (Ty)
  • Working height H = 75mm
  • Width W = 76mm
  • Max. load = 200ton/m

Description

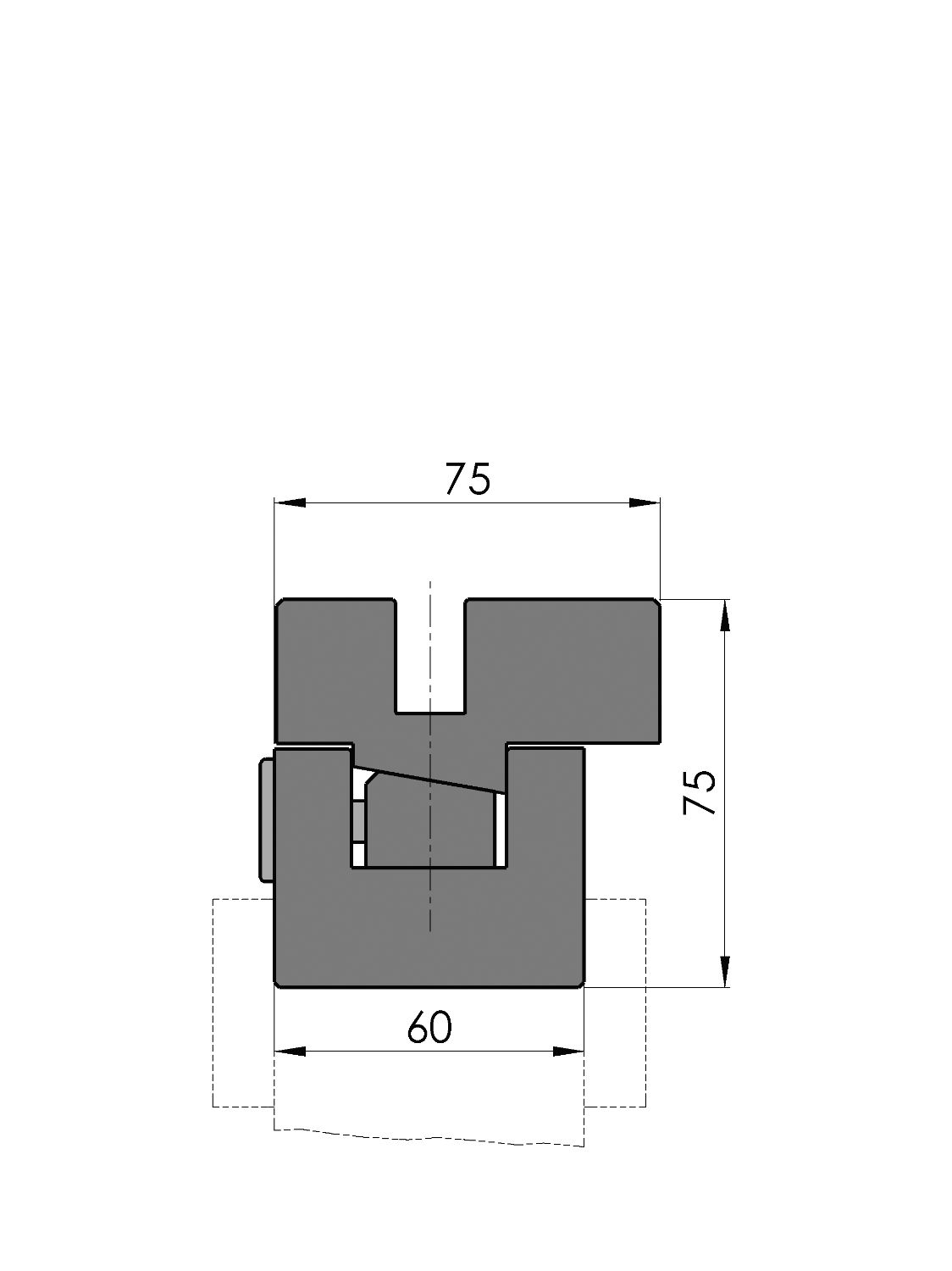

Custom Style New Standard Pro bottom tool holder,
Working height=75mm, Width=76mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened, weight: 33.3kg/m, max.load: 200ton/m.
Delivery without hydraulic power pack.
