OB-II-SL/UPB

OB-II-SL/UPB

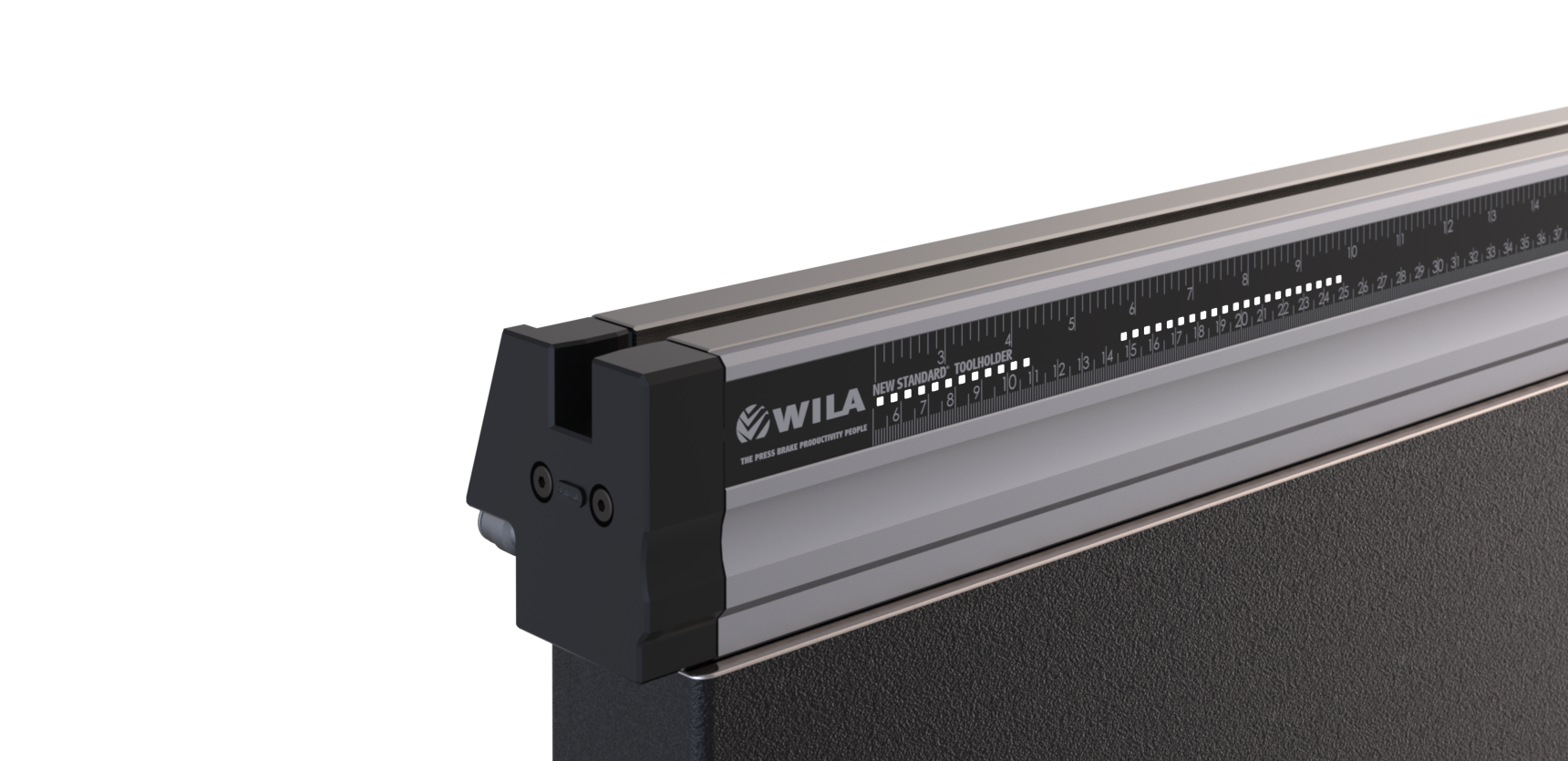

New Standard Premium Bottom Tool Holder
  • Clamping Type = Pneumatic
  • Adaption = UPB hole pattern
  • Horizontal Alignment (Tx)
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

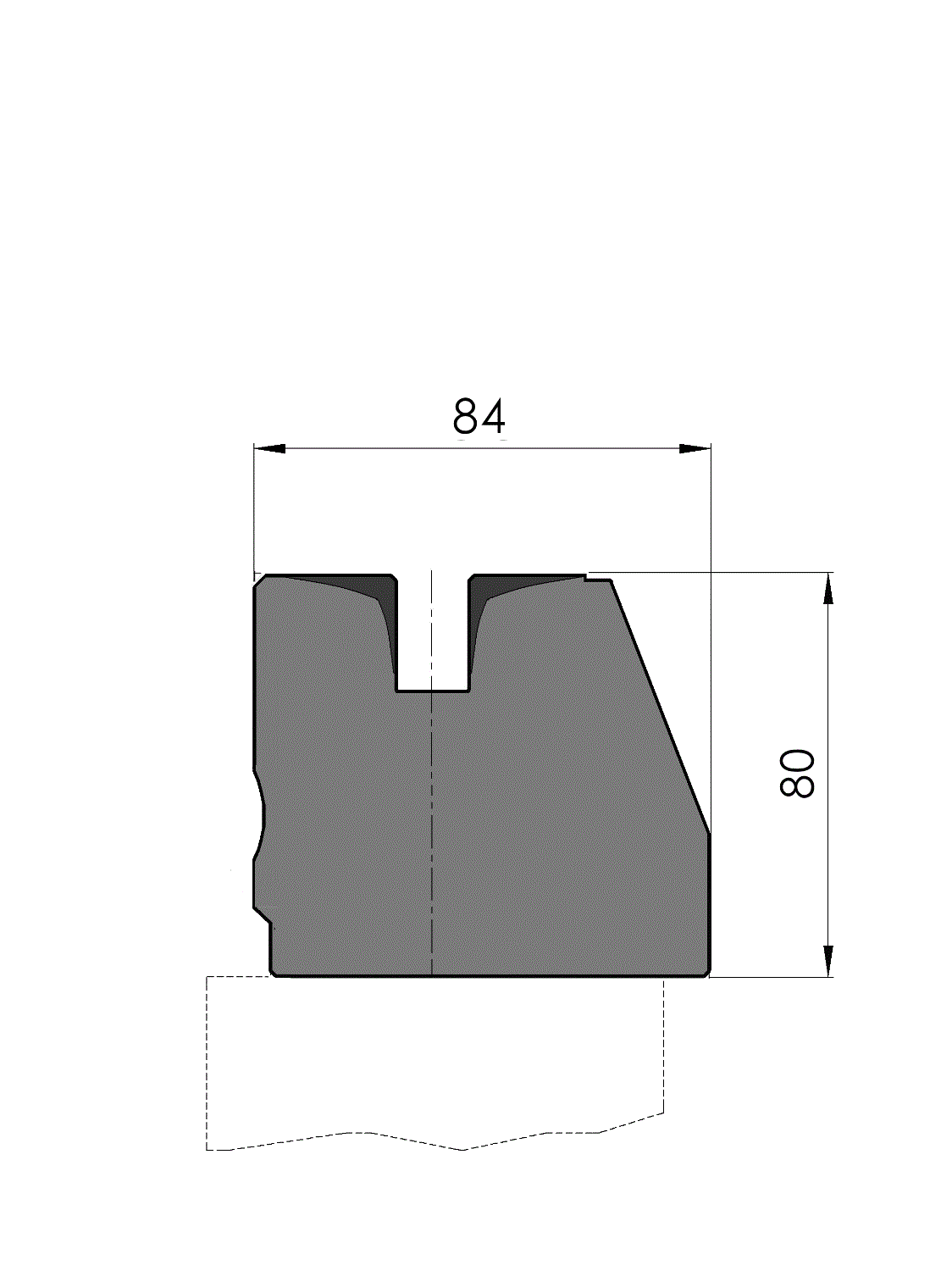

  • Working height H = 80mm
  • Width W = 84mm
  • Max. load = 200ton/m

Description

Custom Style New Standard Premium bottom tool holder,
Working height=80mm, Width=84mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, pneumatic clamping, Tx-alignment, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 30kg/m, max.load: 200ton/m.Delivery with coverstrip, hardenend guards and scale (front side, Inch-metric, "0" at the left).
