OB-II-HC/UPB

OB-II-HC/UPB

New Standard Premium Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern
  • Horizontal Alignment (Tx)
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

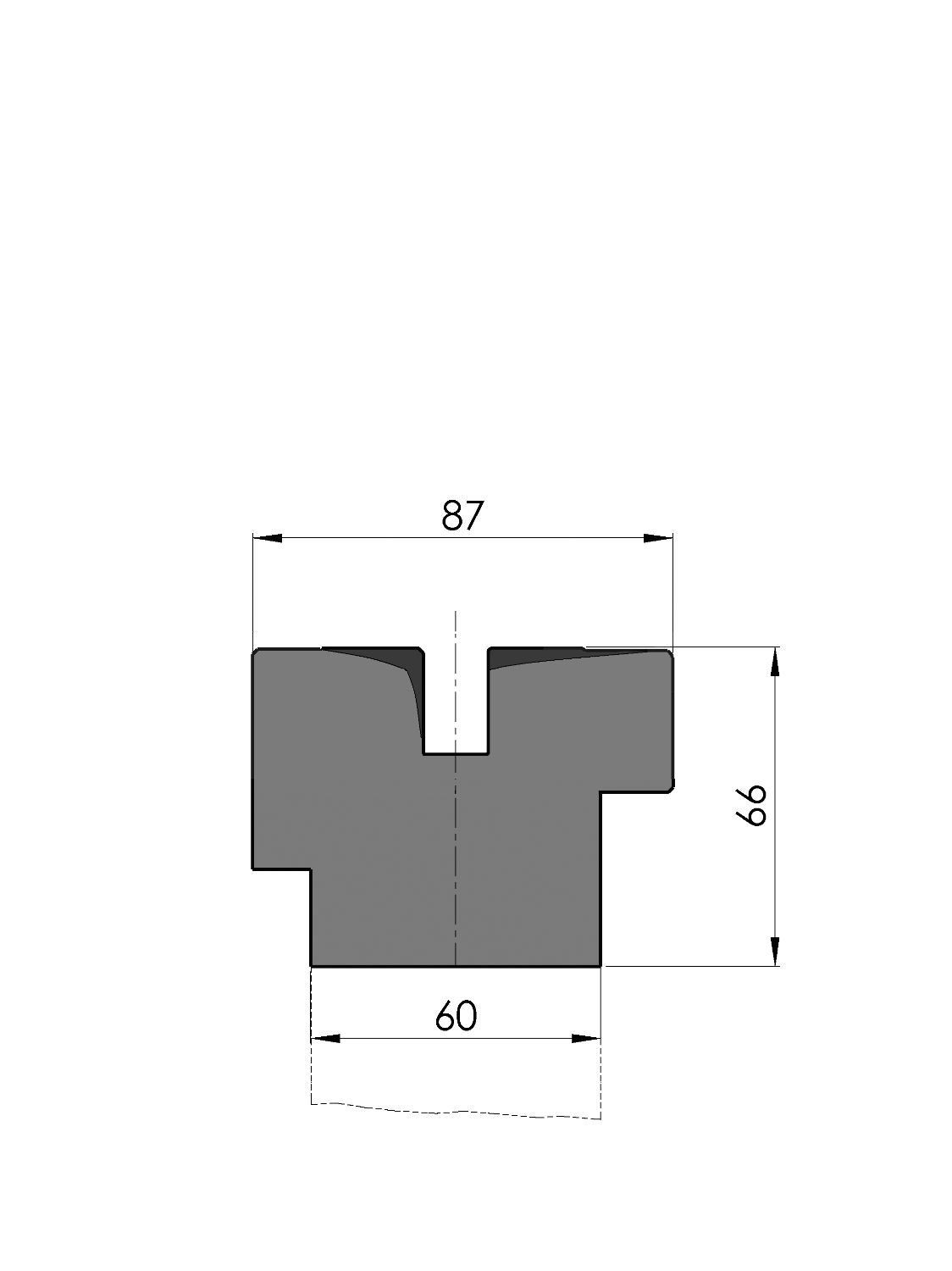

  • Working height H = 66mm
  • Width W = 87mm
  • Max. load = 300ton/m

Description

Custom Style New Standard Premium bottom tool holder,
Working height=66mm, Width=87mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Tx-alignment, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 33.4kg/m, max.load: 300ton/m.hardenend
Delivery without hydraulic power pack.
