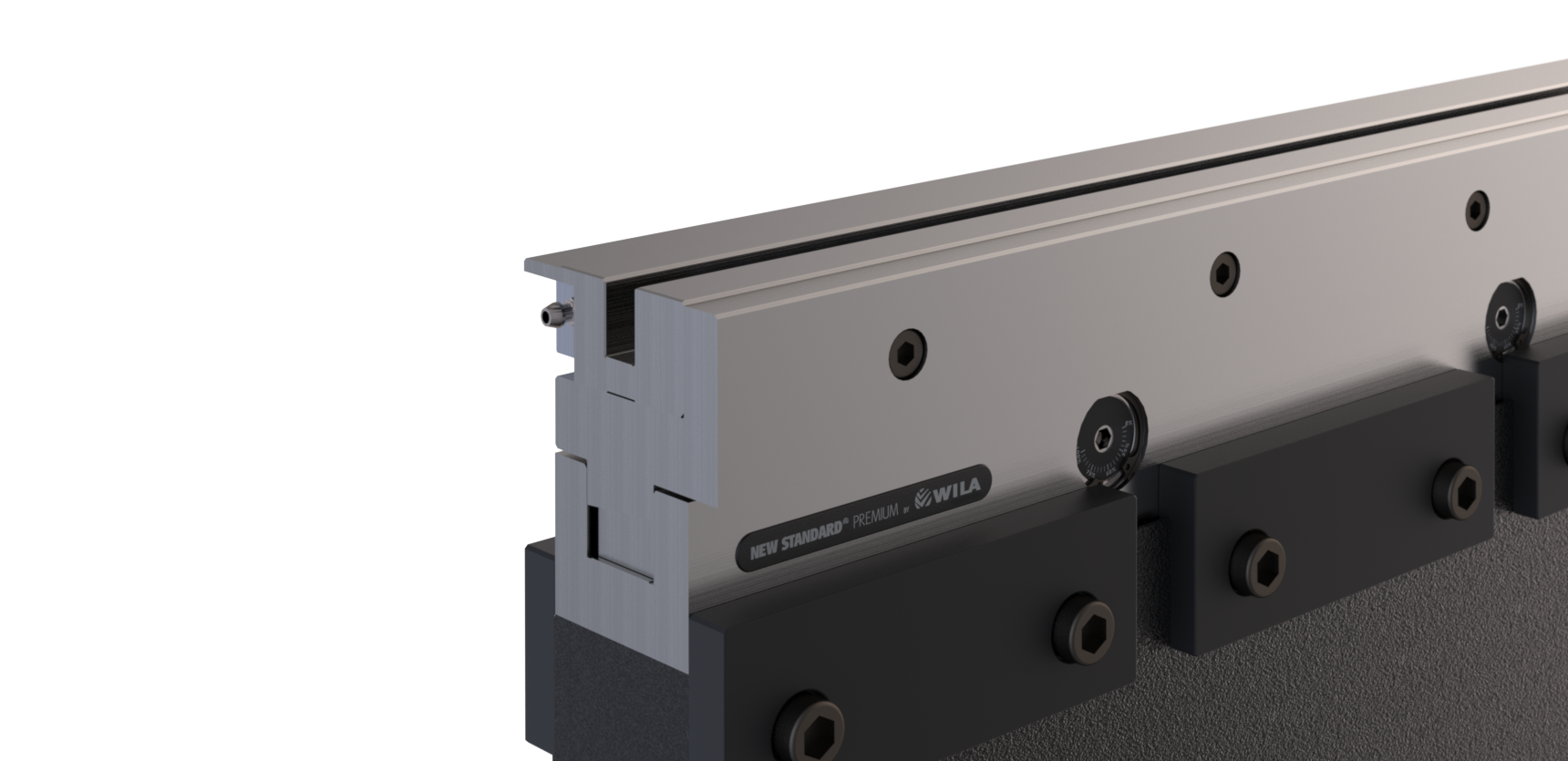

OB-II-HC-TY/ES IV

OB-II-HC-TY/ES IV

New Standard Premium Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = tang
  • Vertical Alignment (Ty)
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

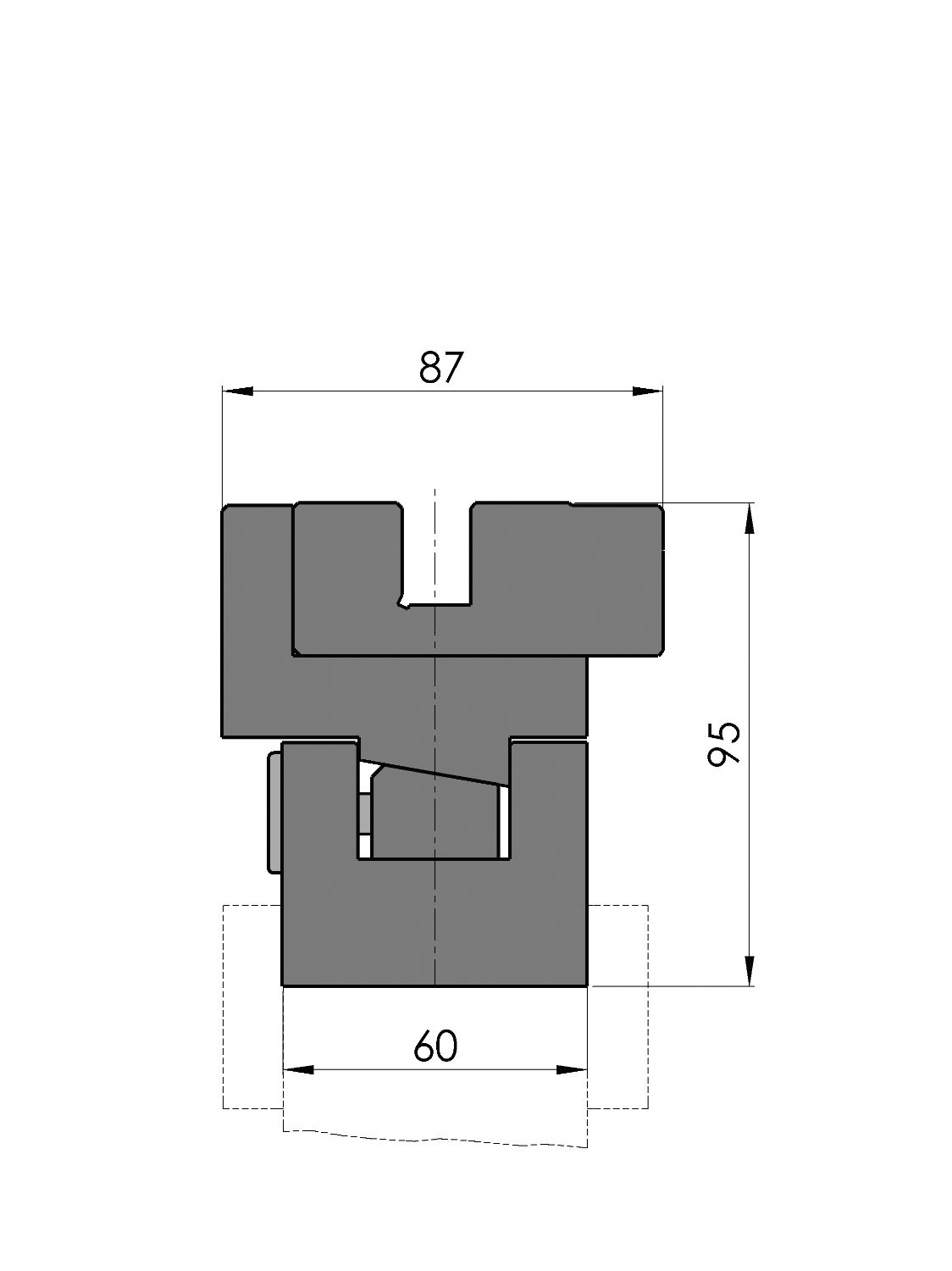

  • Working height H = 95mm
  • Width W = 87mm
  • Max. load = 300ton/m

Description

Custom Style New Standard Premium bottom tool holder,
Working height=95mm, Width=87mm, provided with Amada adaptation Width=60.00mm, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), weight: 46.7kg/m, max.load: 300ton/m.hardenend
Delivery without hydraulic power pack.
