NSCL-I-HC/UPB

NSCL-I-HC/UPB

New Standard Pro Clamping
  • Clamping Type = Hydraulic
  • Adaption = UPB
  • Working height H = 80mm
  • Width W = 88mm
  • Max. load = 250ton/m

Description

New Standard Pro Clamping

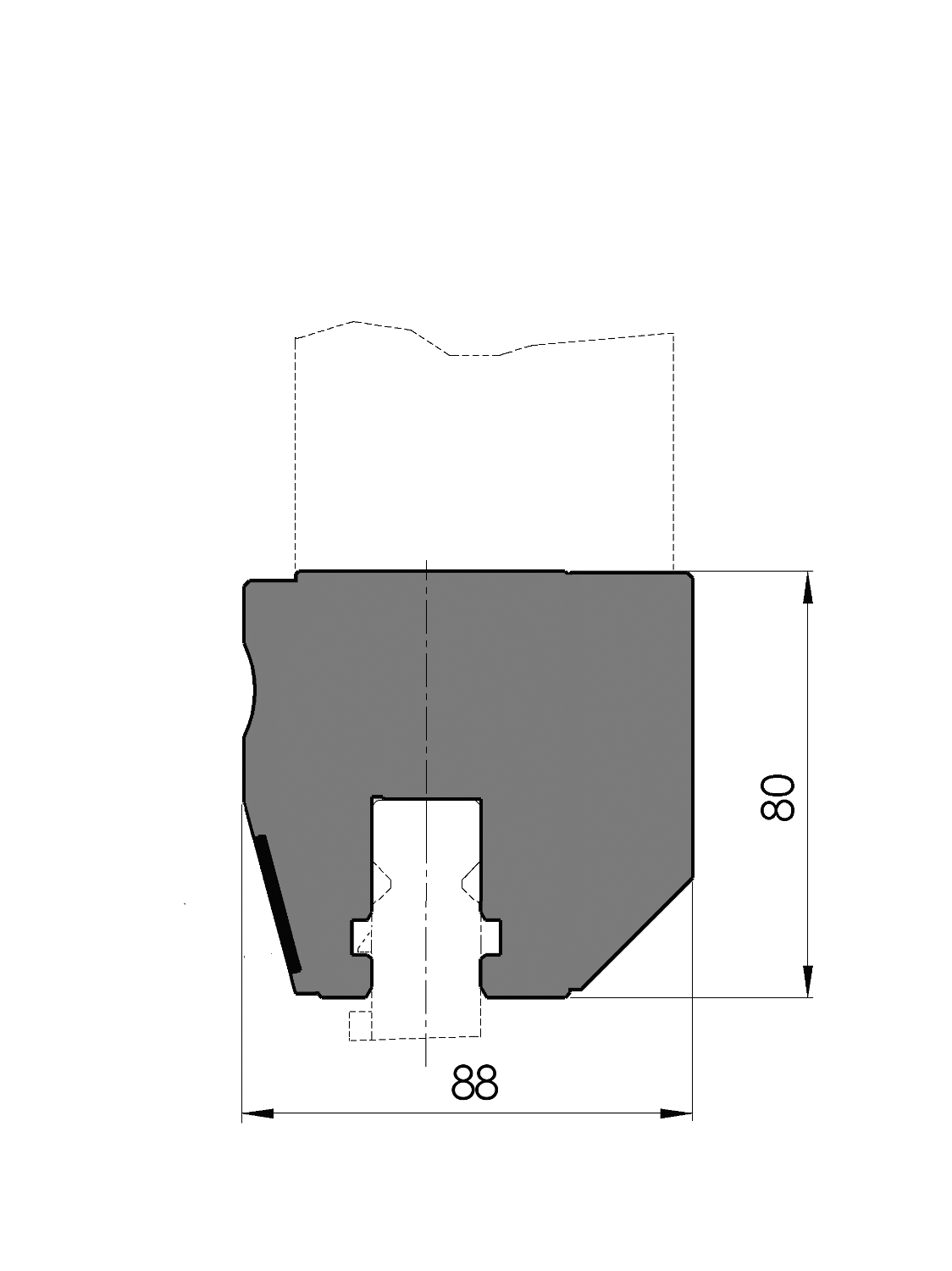

Working height=80mm, Width=88mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left and right top, Material=C45 not hardened, Weight=32kg/m, Max. load=250ton/m.
Delivery with coverstrip, and scale ("0" at the left).Delivery without hydraulic power pack.
