NSCL-II-SL/UPB

NSCL-II-SL/UPB

New Standard Premium Clamping
  • Clamping Type = Pneumatic
  • Adaption = UPB
  • Pressure surfaces CNC-Deephardened ® (2-4mm / 56-60 HRC)

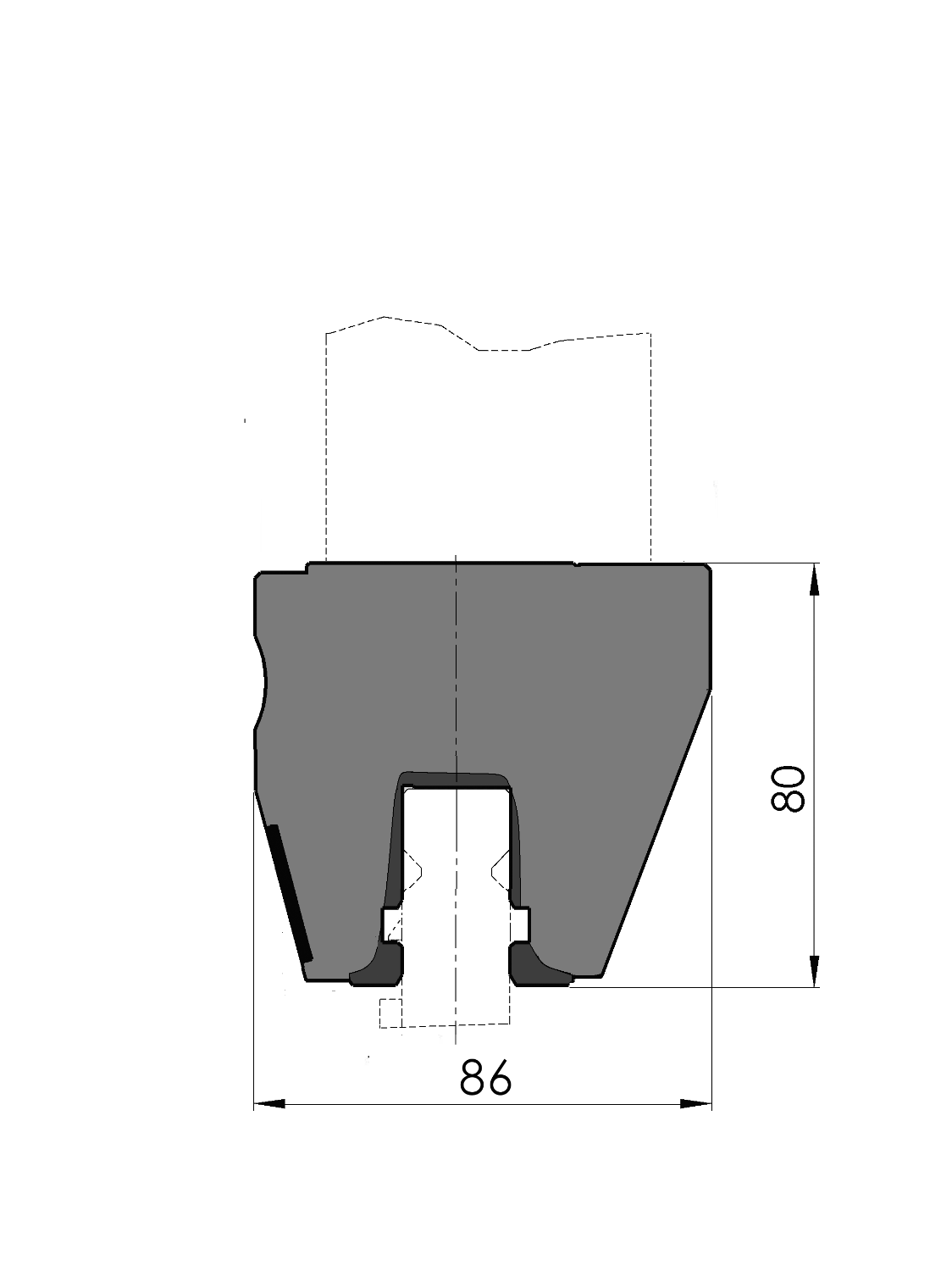

  • Working height H = 80mm
  • Width W = 86mm
  • Max. load = 200ton/m

Description

New Standard Premium Clamping
Working height=80mm, Width=86mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, pneumatic clamping, left and right rear, Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc), Weight=33kg/m, Max. load=200ton/m.
Delivery with coverstrip, hardened and scale ("0" at the left).
