NSCL-I-HC/UPB

NSCL-I-HC/UPB

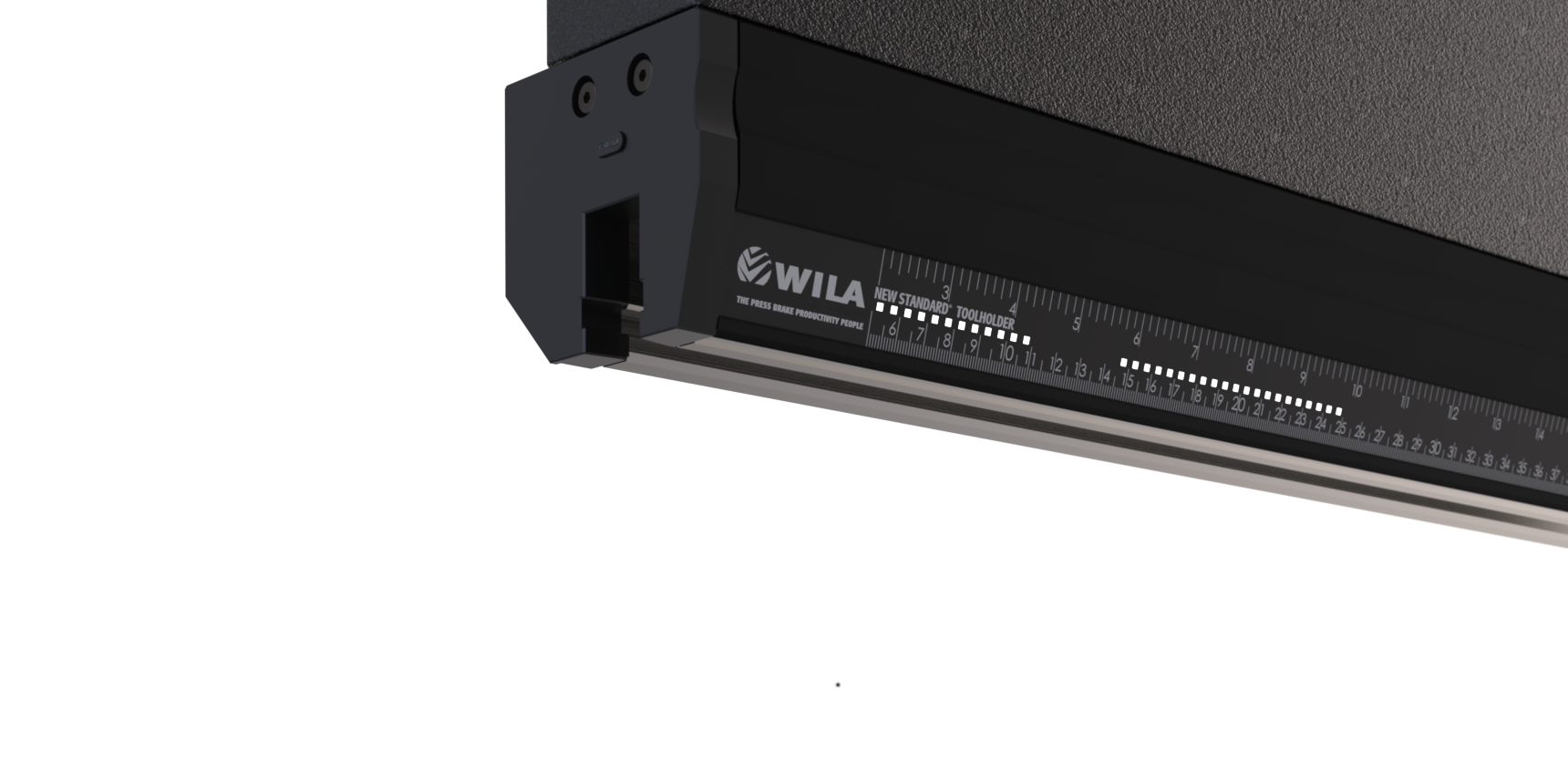

New Standard Pro Clamping
  • Clamping Type = Hydraulic
  • Adaption = UPB hole pattern

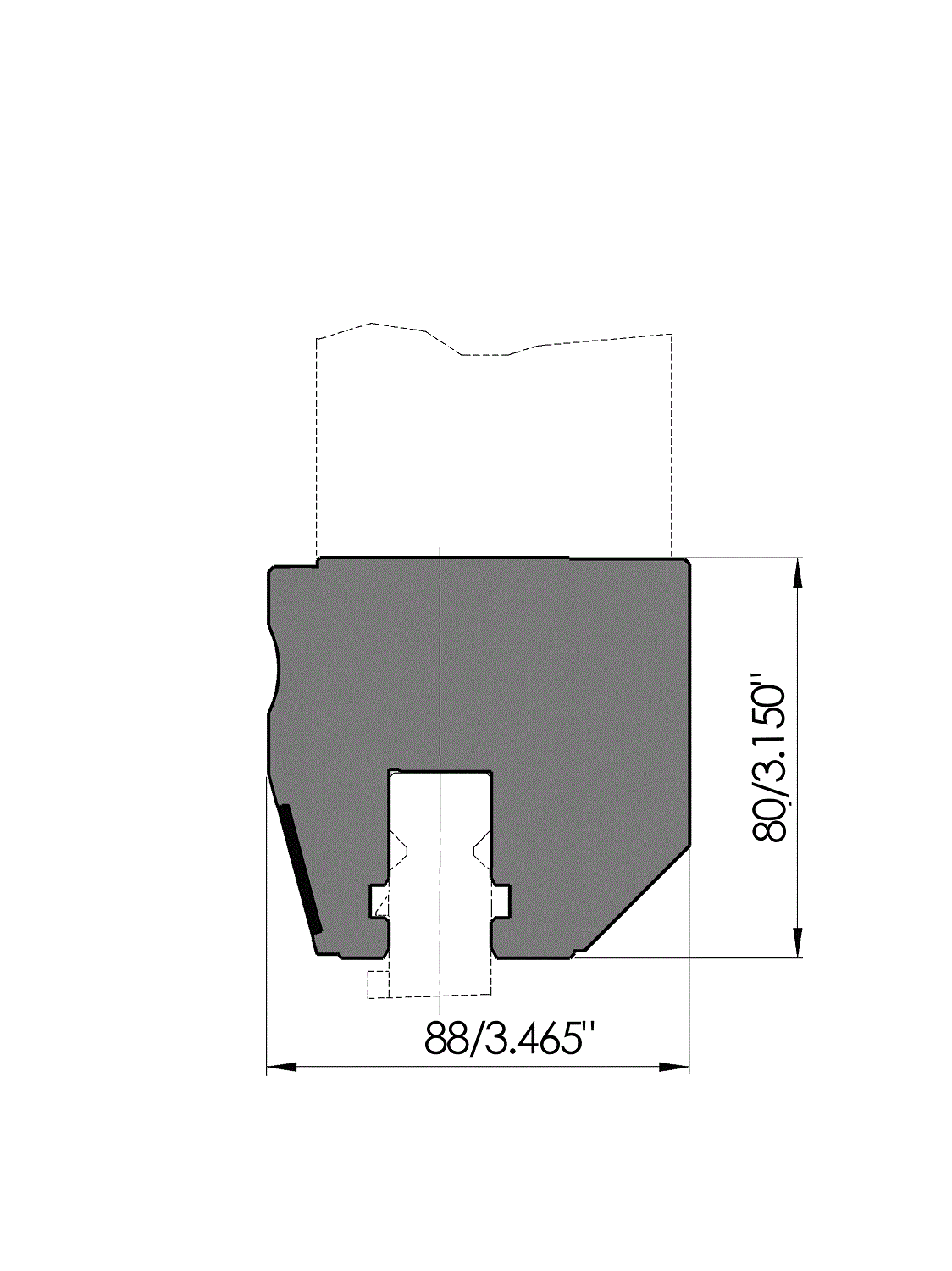

  • Working height H = 80mm
  • Width W = 88mm

Descripción

New Standard Pro Clamping
Working height=80mm, Width=88mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364 with Tx-alignment, hydraulic clamping (max. 50bar), oil supply ø10mm, left top, Material=C45 not hardened.
Delivery with coverstrip and guards scale ("0" at the left).Delivery without hydraulic power pack and guards.
