OB-HD-I-HC/UPB

OB-HD-I-HC/UPB

New Standard Pro Bottom Tool Holder
  • Clamping Type = Hydraulic
  • Adaption = Customized hole pattern

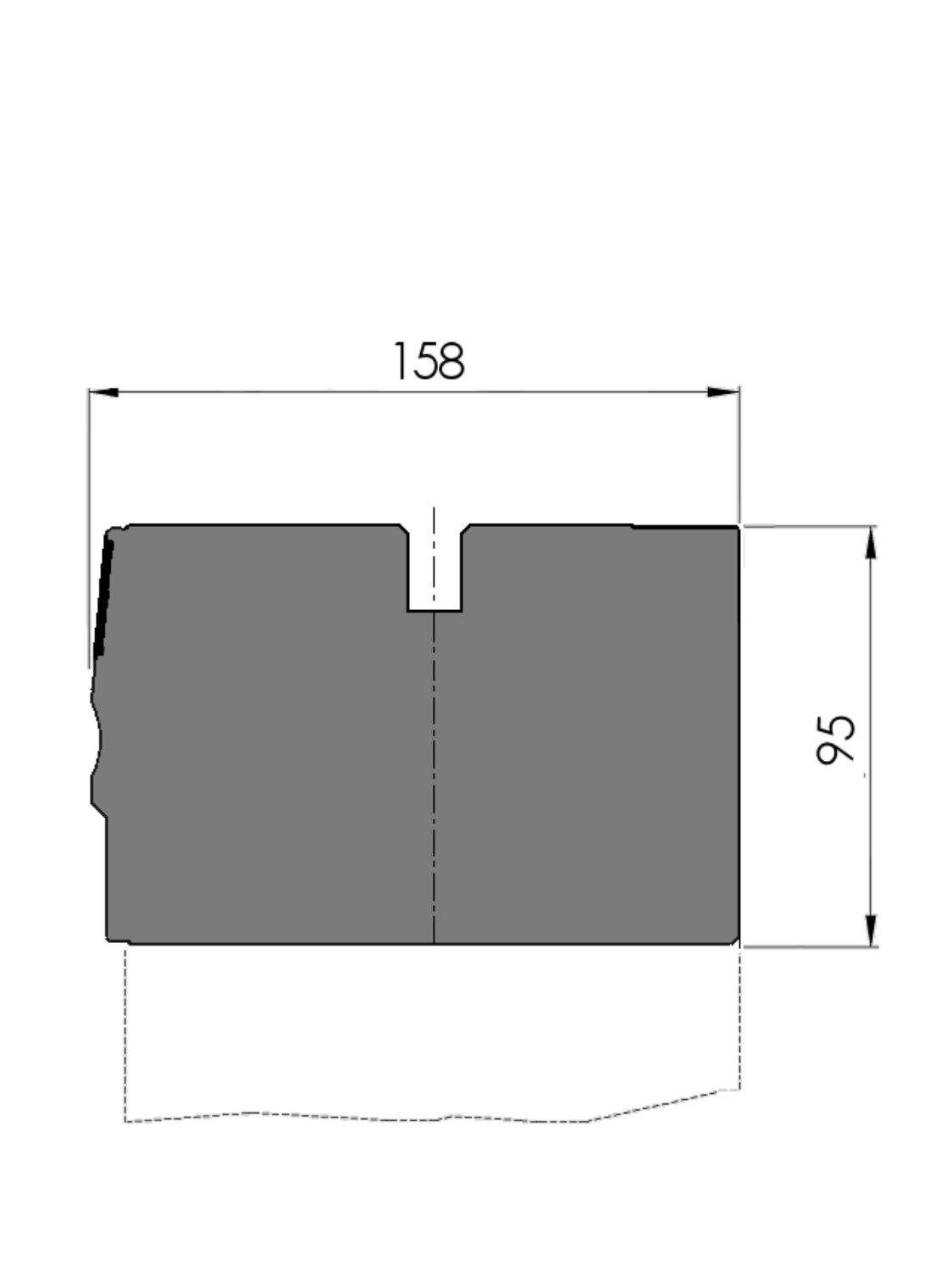

  • Working height H = 95mm
  • Width W = 158mm
  • Max. load = 500ton/m

Description

Custom Style New Standard Pro bottom tool holder,
Working height=95mm, Width=158mm, provided with hole pattern which is suitable for the fixing holes according to your requirements , hydraulic clamping (max. 50bar), oil supply ø10mm, left-rear, Material=C45 not hardened, weight: 112kg/m, max.load: 500ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left).
Delivery without hydraulic power pack.
