OB-HD-I-MC/UPB

OB-HD-I-MC/UPB

New Standard Pro Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = UPB hole pattern
  • Horizontal Alignment (Tx)

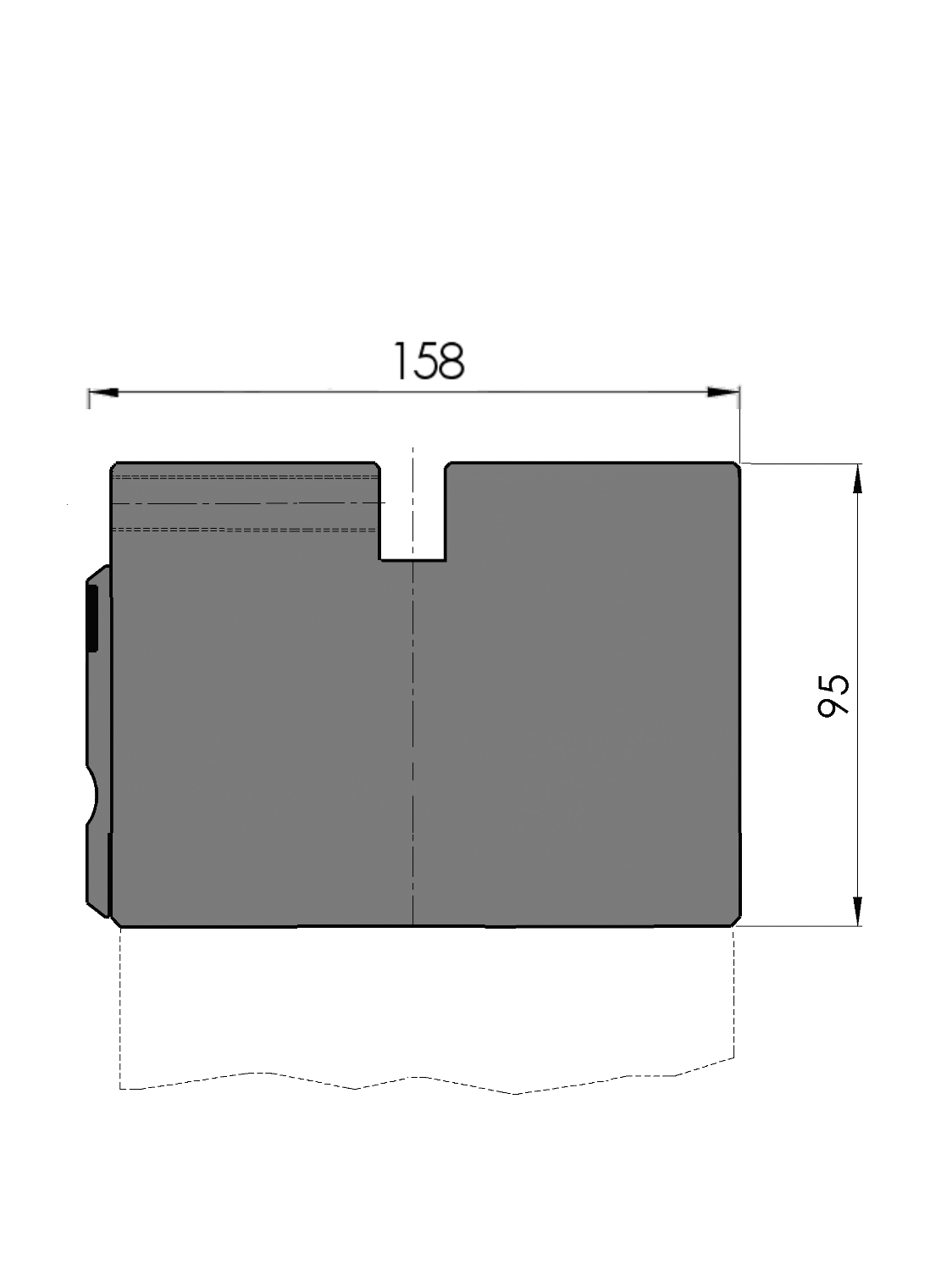

  • Working height H = 95mm
  • Width W = 158mm
  • Max. load = 500ton/m

Description

Custom Style New Standard Pro bottom tool holder,
Working height=95mm, Width=158mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, mechanical clamping by means of set screws M12 pitch 100mm, Tx-alignment, Material=C45 not hardened, max.load: 500ton/m.Delivery with coverstrip and scale (front side, metric, "0" at the left).
