New Standard Tool Holders

New Standard Tool Holders (Clamping, Crowning and Bottom Tool Holders) make it possible to change tools very quickly. When combined with our state of the art New Standard Tooling they also provide maximum accuracy, flexibility, durability and safety.

Efficient tool change

Our wide product range helps to efficiently change your press brake tools, whether hydraulic, mechanical or pneumatic. Award-winning innovations like Safety-Click®, Smart Tool Locator® and the WILA E2M® (Easy to Move) system make changing even the heaviest tools easier and safer.

New Standard Clamping

  • Innovative and extremely fast clamping systems
  • Can be installed on any press brake thanks to the UPB concept
  • Equipped with Guards
  • Suitable for New Standard top tools
  • Horizontal and vertical change of tooling
  • Available with hydraulic, pneumatic or manual clamping
View products

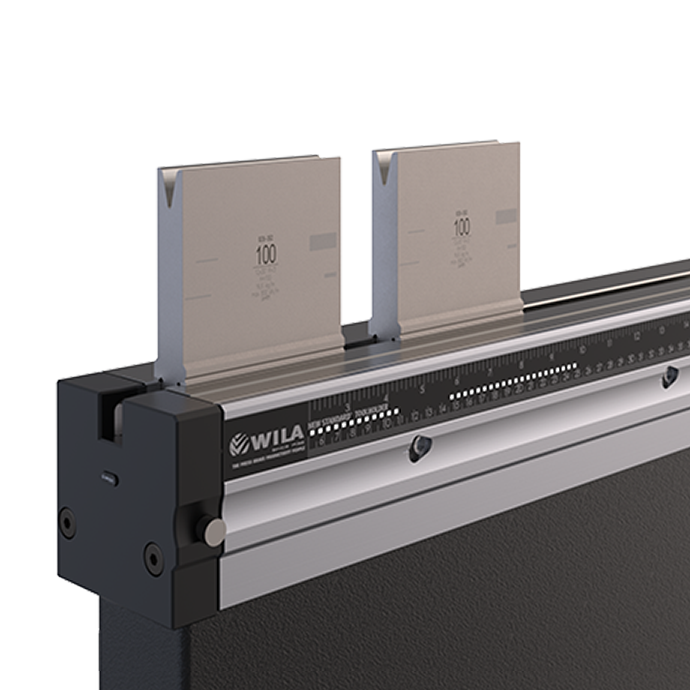

New Standard Crowning

  • Tailored to each individual press brake
  • Perfect compensation for deflection, resulting in a consistent bend angle over the entire length of the machine
  • Using a range of patented adjustable wedges known as WILA Wave Wedges
  • Top-quality materials that ensure a long life
  • Can be operated CNC-controlled or by hand
View products

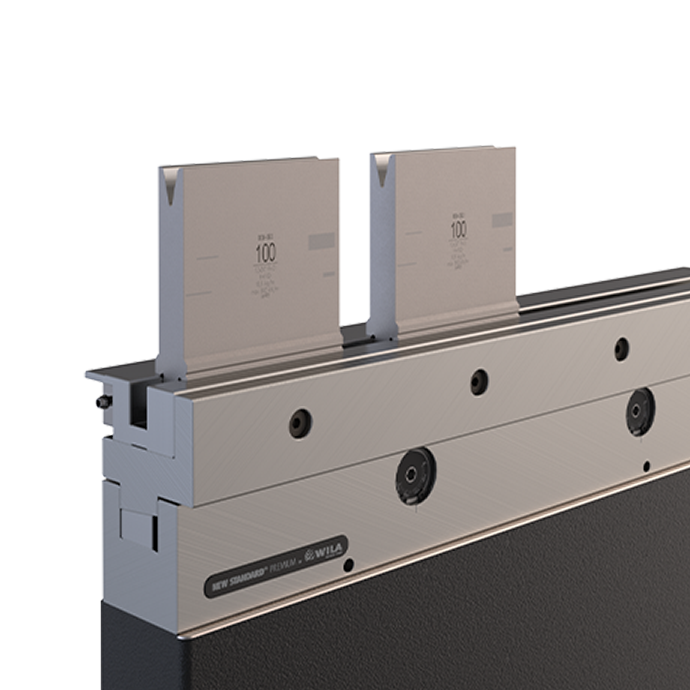

New Standard Bottom Tool Holders

  • Ideal for press brakes that do not require a crowning system, or for press brakes with a crowning system already incorporated into the lower beam
  • Compact design with fully integrated clamping system for dies
  • Available with hydraulic, pneumatic or manual clamping
View products


Thank you for your interest!

Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.

Guest download Sign in
Already have an account? Sign in

Premium or Pro

New Standard Premium Tool Holders are the ultimate in accuracy and performance. New Standard Pro Tool Holders are a high quality alternative. Check out the differences.

Load bearing and clamping surfaces are fully CNC-Deephardened® (ca. 56 HRC, 2-4mm) for maximum durability
Great value for investment - comparable performance with New Standard Premium, but without hardened surfaces to reduce cost
Working surfaces are precision ground to ± 0.01 mm / 0.0004″
Working surfaces are precision ground to ± 0.02 mm / 0.0008"
Capable of clamping tool segments as small as 10 mm in length
Capable of clamping tool segments as small as 15 mm in length
Load capacity of up to 300 tons per meter
Load capacity of up to 250 tons per meter
Self-seating of tools up to 300 kg per meter depending on clamping method
Self-seating of tools up to 250 kg per meter depending on clamping method

Manual, Hydraulic or Pneumatic

Our clamping and crowning systems offer the ultimate solution when it comes to efficiently changing tools - whether hydraulic, manual or pneumatic. We have created an overview of the most important differences.

An effective economical solution for less frequent tool changes
Clamping bolts are used to center the tools in the required position. When tools are changed less frequently, a manual clamping system in which the bolts are tightened by hand can be sufficient.
High efficiency for fast and frequent tool changes
Ideal to meet the most demanding requirements with fast clamping and alignment. A flexible hose running the length of the system is used to transfer oil pressure to the tool via hardened clamping pins for maximum reliability. After the clamping system is activated, all tools are automatically positioned, centered and aligned.
Powerful Self-Locking® Performance
Tools can be locked and released extremely quickly using air pressure, while clamping force is provided by our patented Self-Locking® mechanism. This unique combination results in a much faster tool change and increases your productivity in the long run.

All New Standard Tool Holders

The Universal Press Brake Concept (UPB) makes it possible to install New Standard Clamping Systems on any press brake. When used in combination with WILA New Standard Tooling these tool holders offer maximum productivity.
