OB-I-MC-TY/ES IV

OB-I-MC-TY/ES IV

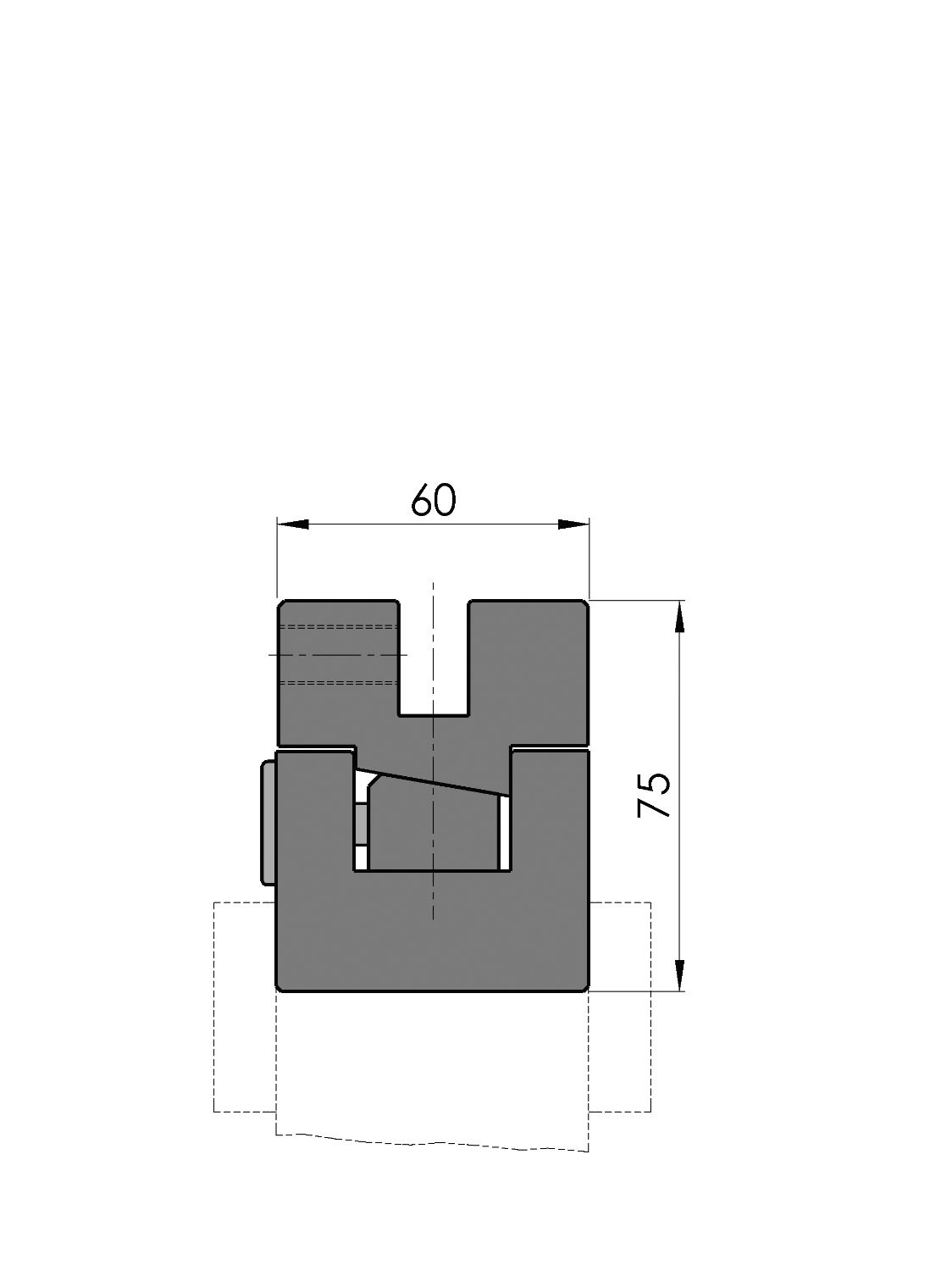

New Standard Pro Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption = tang
  • Vertical Alignment (Ty)
  • Working height H = 75mm
  • Width W = 60mm

Description

New Standard Pro Custom Style bottom tool holder,
Working height=75mm, Width=60mm, provided with Amada adaptation Width=60.00mm, mechanical clamping by means of set screws M12 pitch 102mm with centre 1000mm pitch 25.50mm, Ty-alignment (manually by means of single point adjustment), Material=C45 not hardened.
