New Standard Premium Custom Style bottom tool holder,

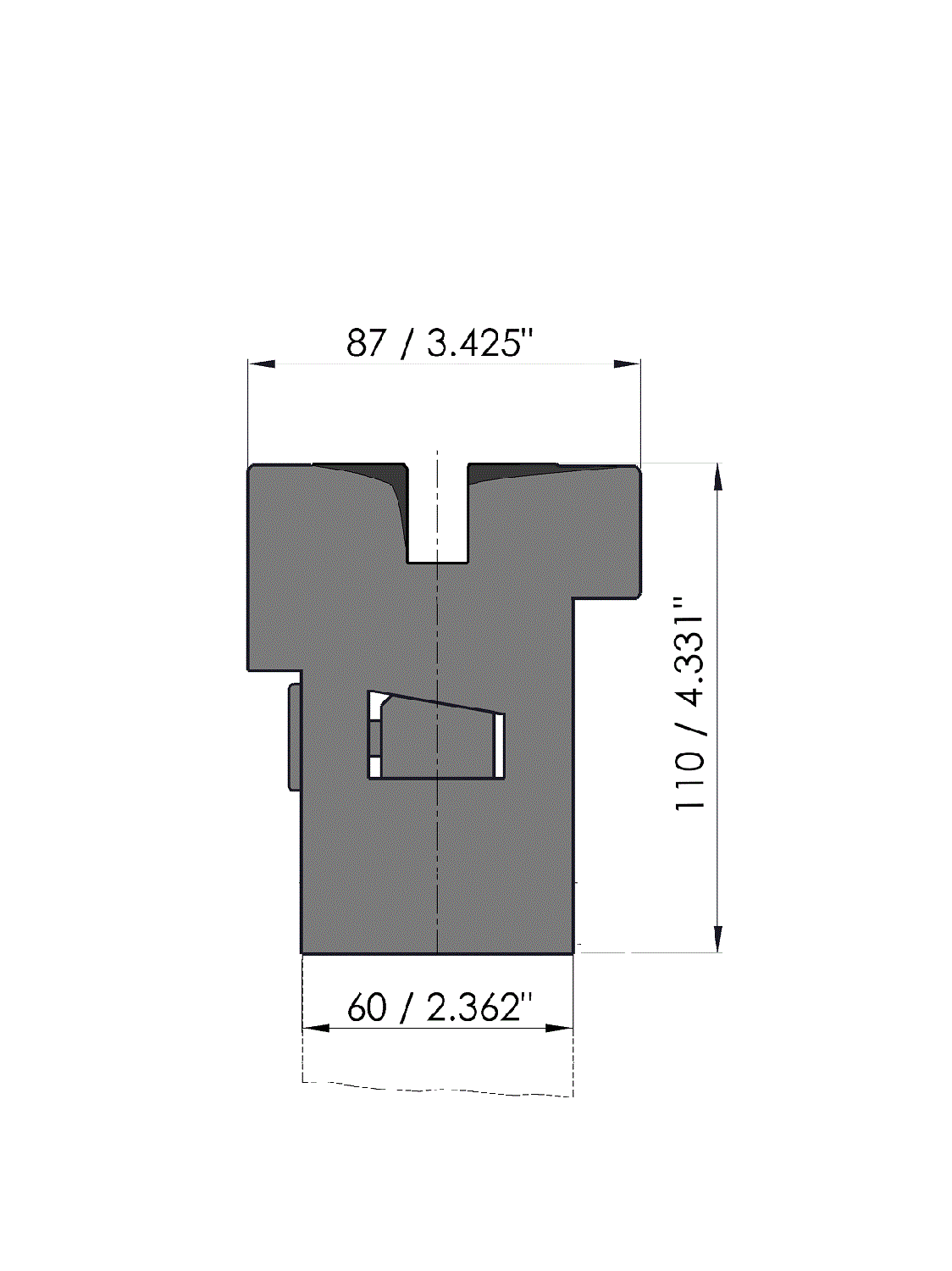

Working height=110mm, Width=87mm, provided with UPB-hole pattern which is suitable for the fixing holes according to drawing no.: 31364, hydraulic clamping (max. 50bar), oil supply ø10mm, left-end, Tx-alignment, Ty-alignment (manually by means of single point adjustment), Material=CR-MO, pressure and reference surfaces CNC-Deephardened® (2-4mm / 56-60HRc).hardenend
Delivery without hydraulic power pack.
