NSCL-I-HC-TY/ES I

NSCL-I-HC-TY/ES I

New Standard Pro Clamping
  • Clamping Type = Hydraulic
  • Adaption = upper adaptation

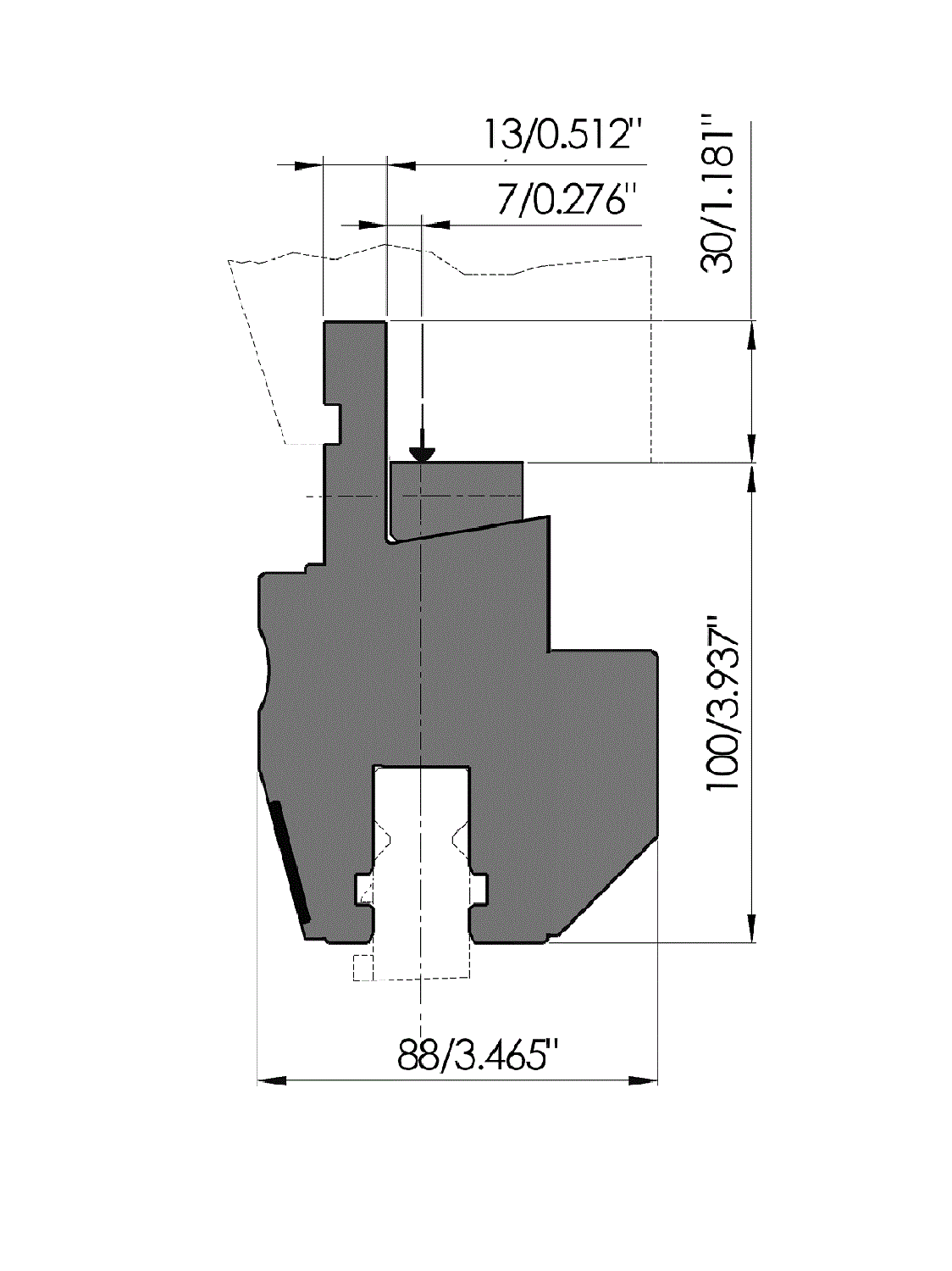

  • Working height H = 100mm
  • Width W = 88mm

Description

New Standard Pro Clamping
Working height=100mm, Width=88mm, provided with Amada adaptation (center line at 7mm) with crowning key (Ty-alignment), manually by means of push and pull screws, hydraulic clamping (max. 50bar), oil supply ø10mm, left end, Material=C45 not hardened.
Delivery with coverstrip and guards scale ("0" at the left).Delivery without hydraulic power pack and guards.
