INZU-002/Z10

INZU-002/Z10

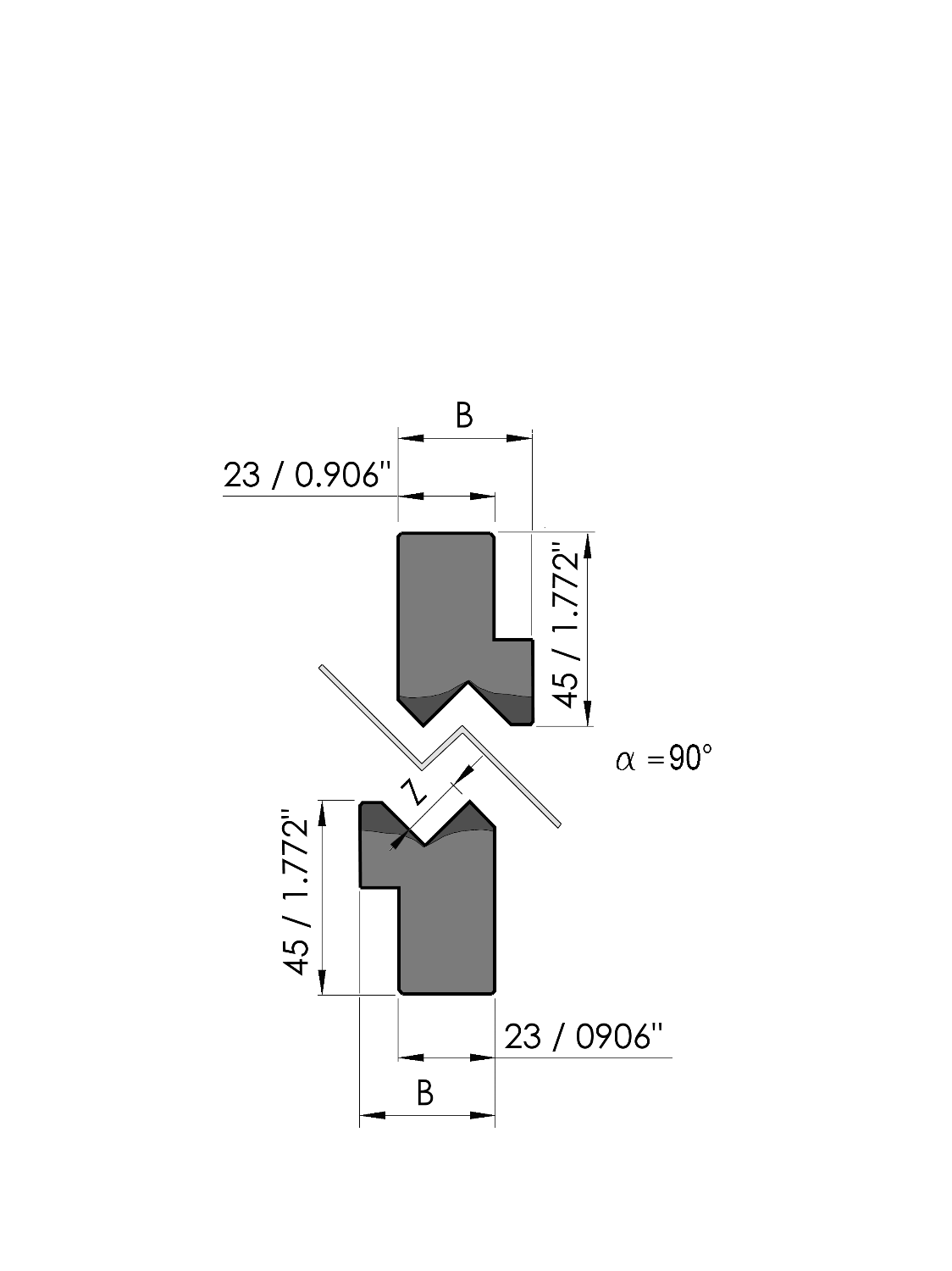

New Standard Insert for Offset and Flattening
  • Insert
  • set of 2 parts
  • Width W= 27mm
  • Z = 10mm/90°
  • CNC-Deephardened® (at least 4mm / 56-60HRc)
  • Material = C45
  • Weight = 16.12kg/m
  • Max. load = 100ton/m
  • Description

    Insert
    set of 2 parts, Width=27mm, Z=10mm/90°, CNC-Deephardened® (at least 4mm / 56-60HRc), Material=C45, Weight=16.12kg/m, Max. load=100ton/m.
