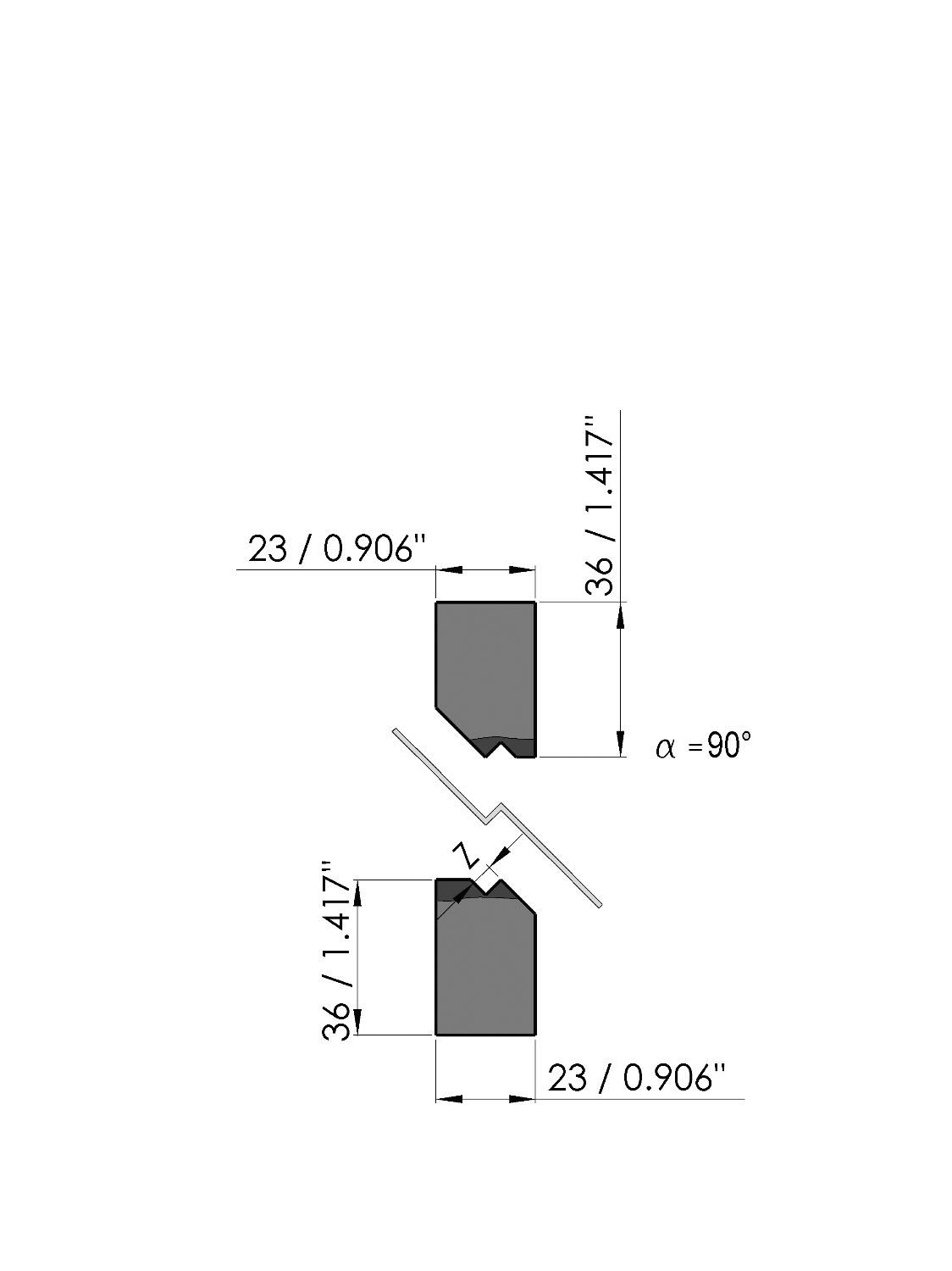

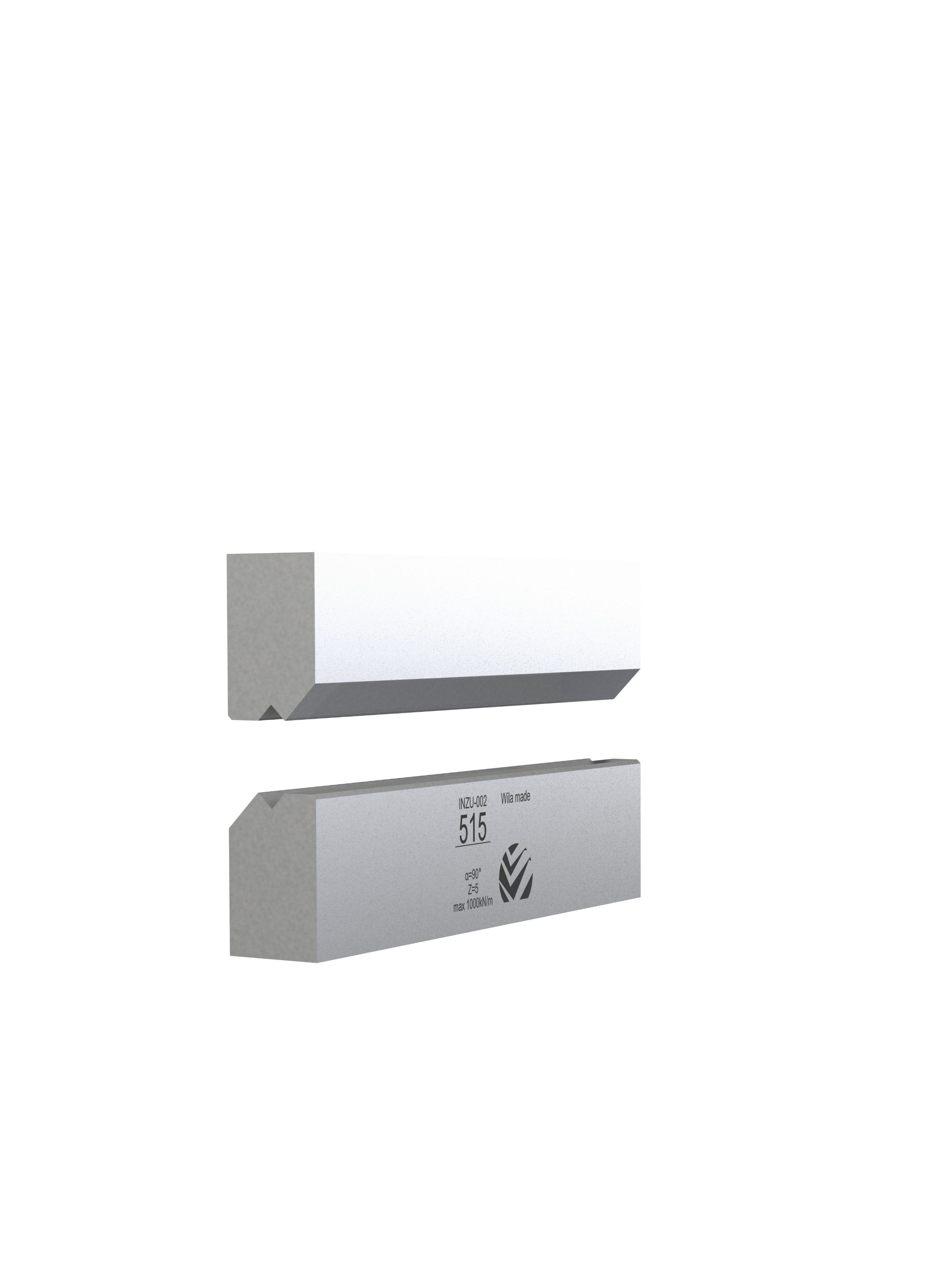

Insertset of 2 parts, Width=23mm, Z=3.50mm/90°, CNC-Deephardened® (at least 4mm / 56-60HRc), Material=C45, Weight=12kg/m, Max. load=100ton/m.
Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.
New Standard holderWorking height H = 98mm Width W = 50mmMax. load = 100 ton/m
New Standard holderWorking height H = 74mm Width W = 60mmMax. load = 100 ton/m
New Standard holderWorking height H = 100mm Width W = 60mmMax. load = 100 ton/m
