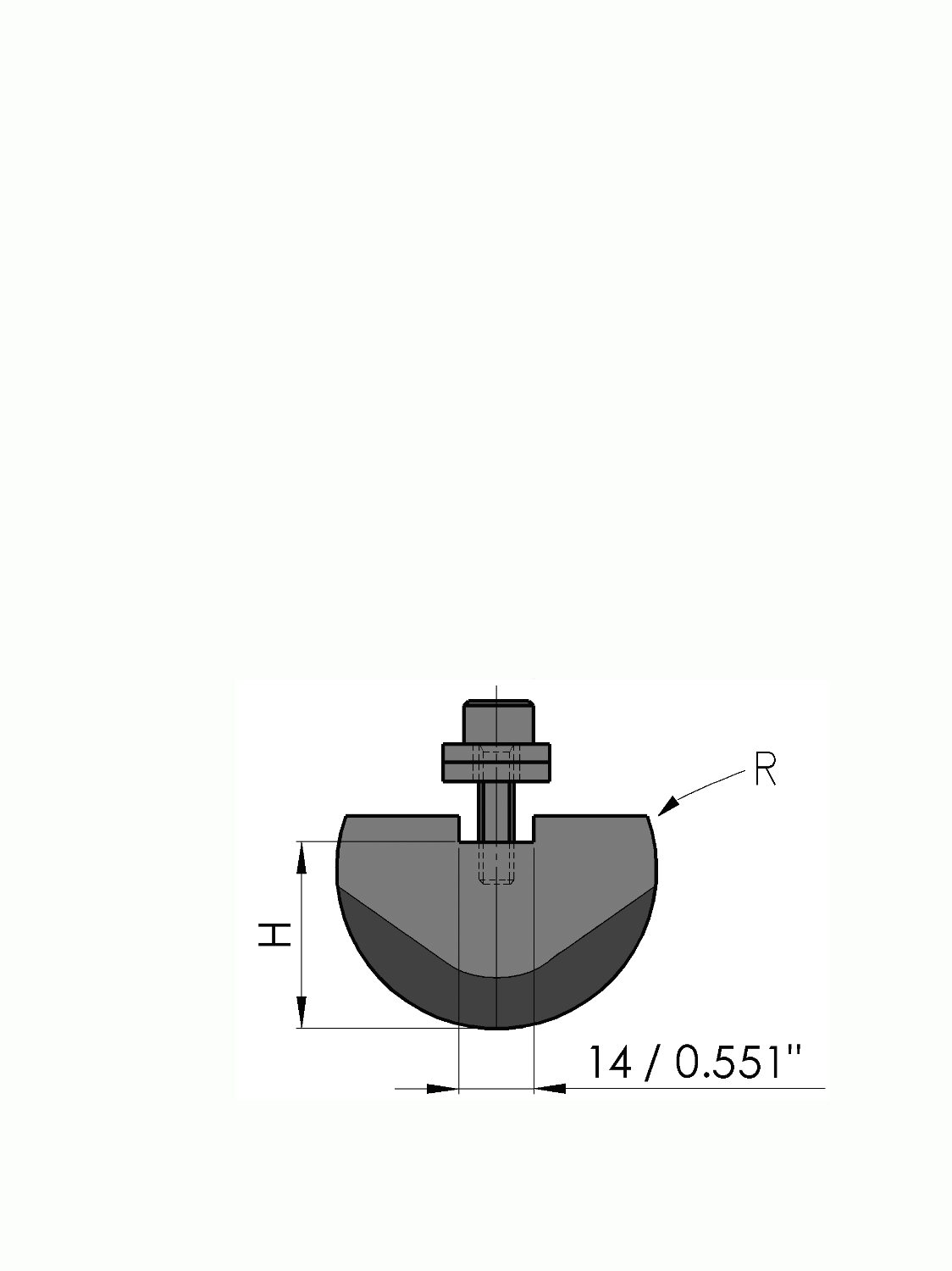

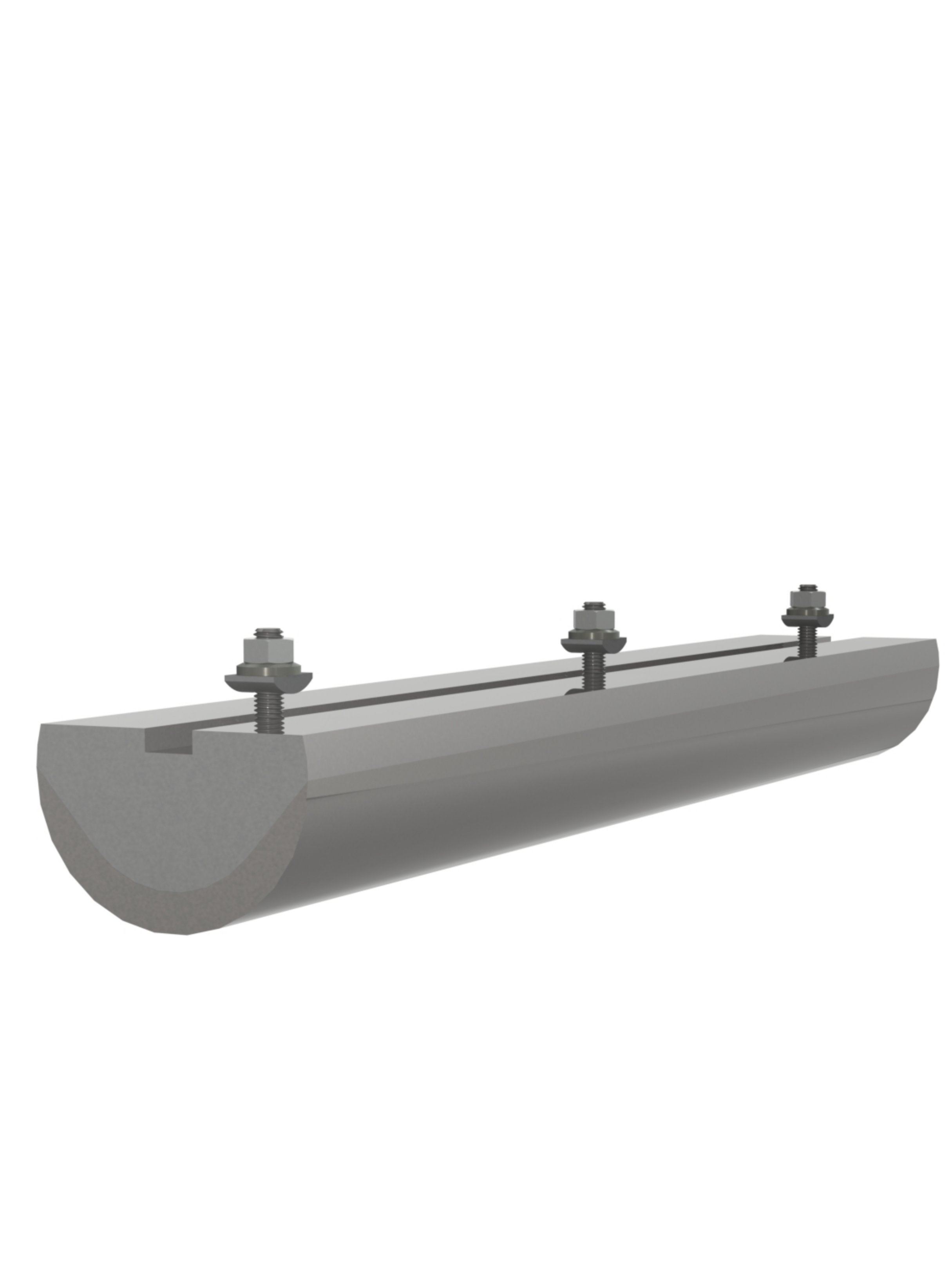

Radius toolWorking height=45mm, Width=80mm, Radius=40mm, CNC-Deephardened® (at least 4mm / 56-60HRc), Material=C45, Weight=27.94kg/m, Max. load=250ton/m.
Please leave your email address and we'll send you a download link straight away. Or register for MyWILA and get immediate access to all WILA online content.
New Standard holderWorking height H = 88mm Width W = 20mmMax. load = 160 ton/m
New Standard holderWorking height H = 163mm Width W = 20mmMax. load = 160 ton/m
New Standard holderWorking height H = 163mm Width W = 50mmMax. load = 250 ton/m
