OB-953

OB-953

Custom Style Bottom Tool Holder
  • Clamping Type = Mechanical
  • Adaption =

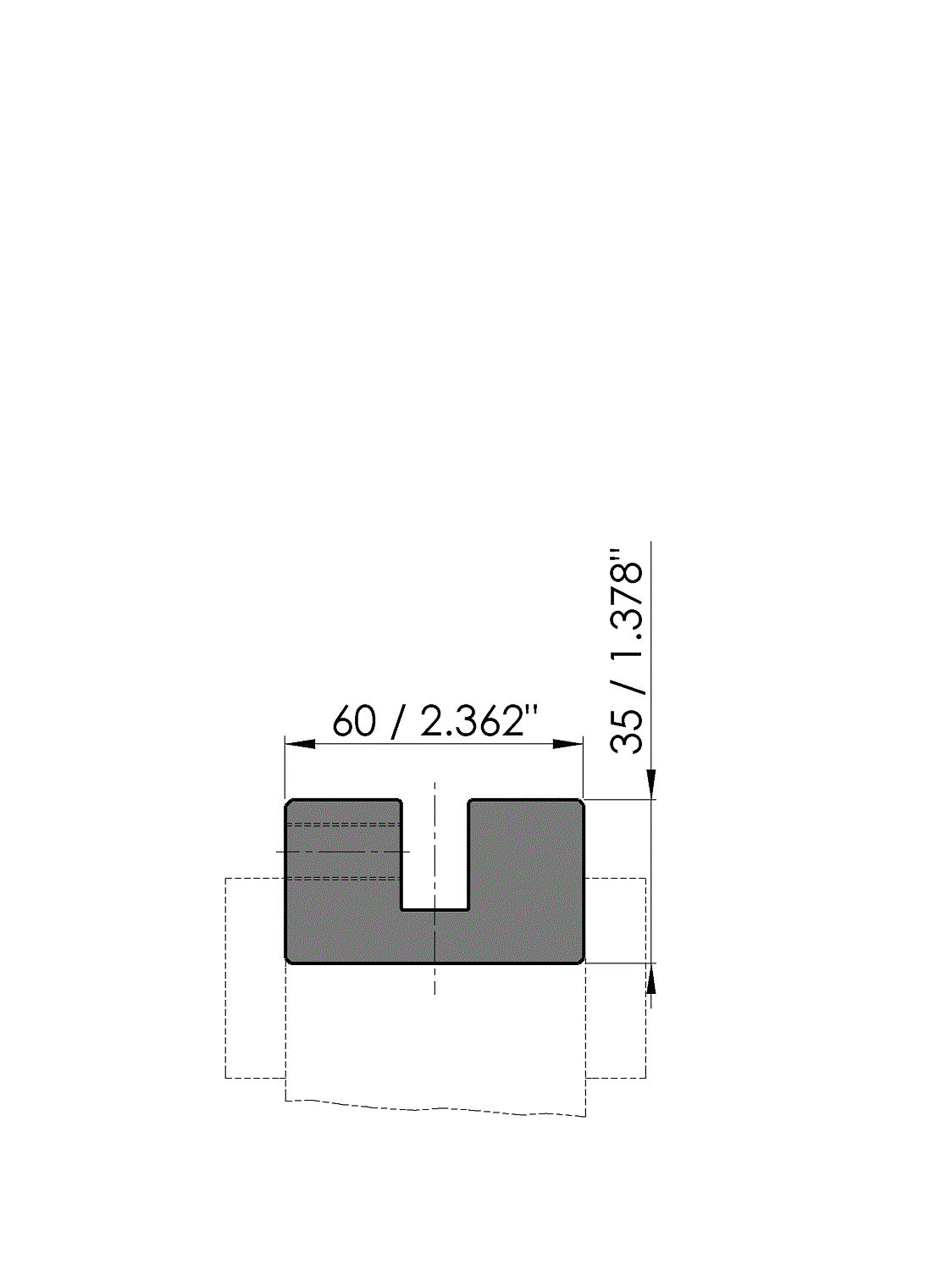

  • Working height H = 35mm
  • Width W = 60mm
  • Max. load = 200ton/m

Description

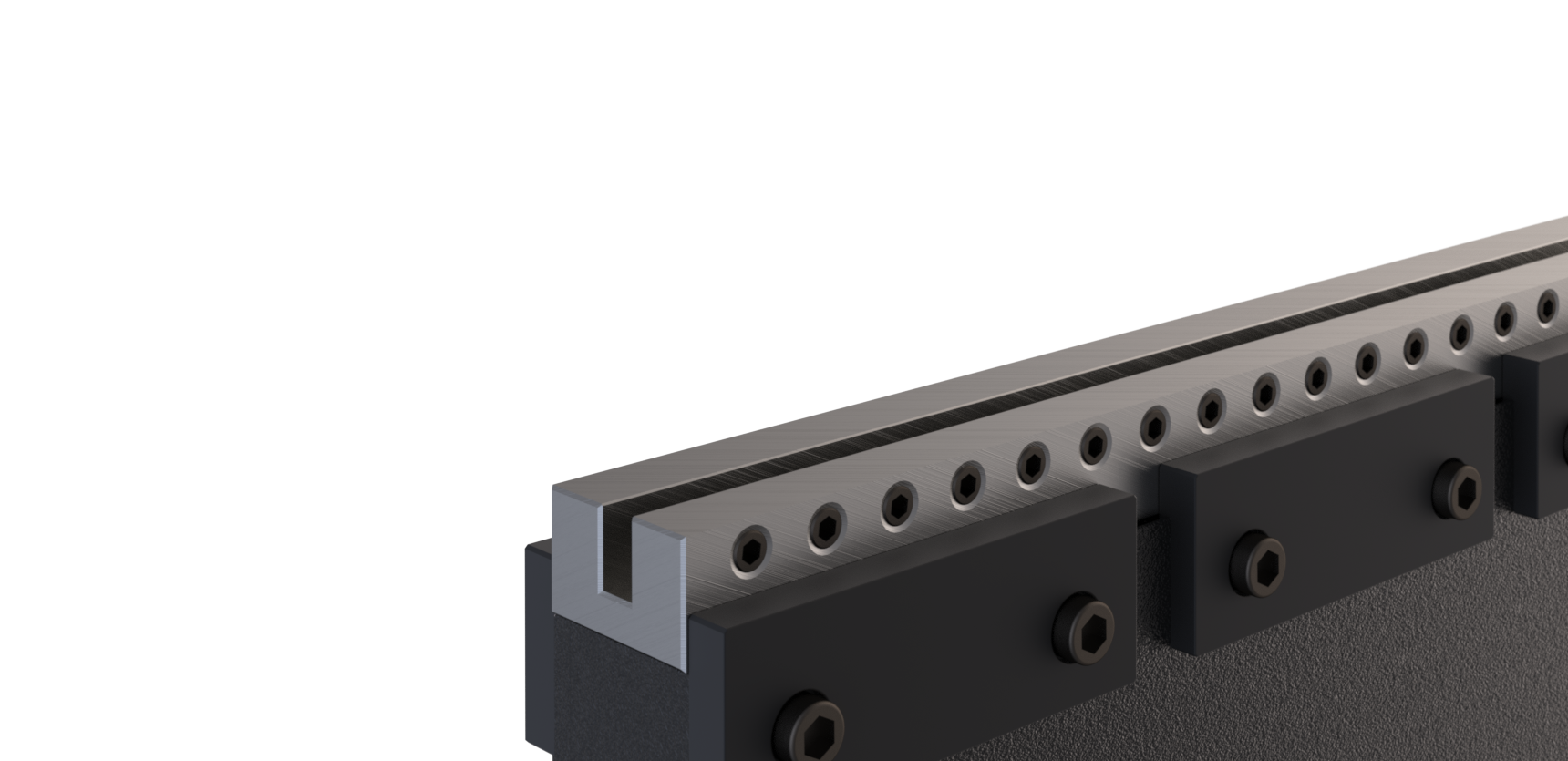

Custom Style bottom tool holder,
Working height=35mm, Width=60mm, mechanical clamping by means of set screws M12 pitch 100mm with centre 1000mm pitch 25mm, Material=C45, weight: 14.65kg/m, max.load: 200ton/m.
