BIU-804

BIU-804

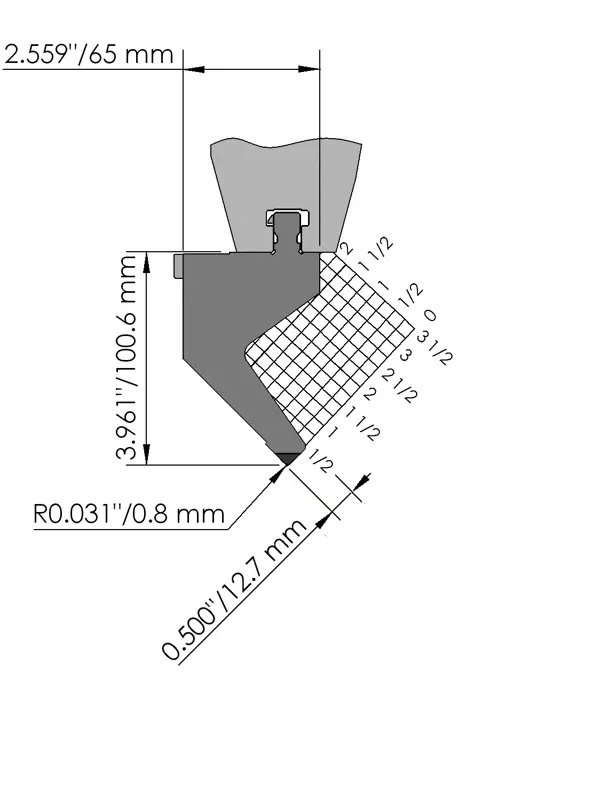

American Style Top Tool
  • Working height H = 100.6mm
  • Tip angle α = 90°
  • Radius R = 0.8mm
  • CNC-Deephardened® (≥ 4mm / 52-60HRC)
  • Max. load = 100ton/m

Description

American Style top tool with Working height H=100.6mm, α=90°, Radius=0.8mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=100ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
