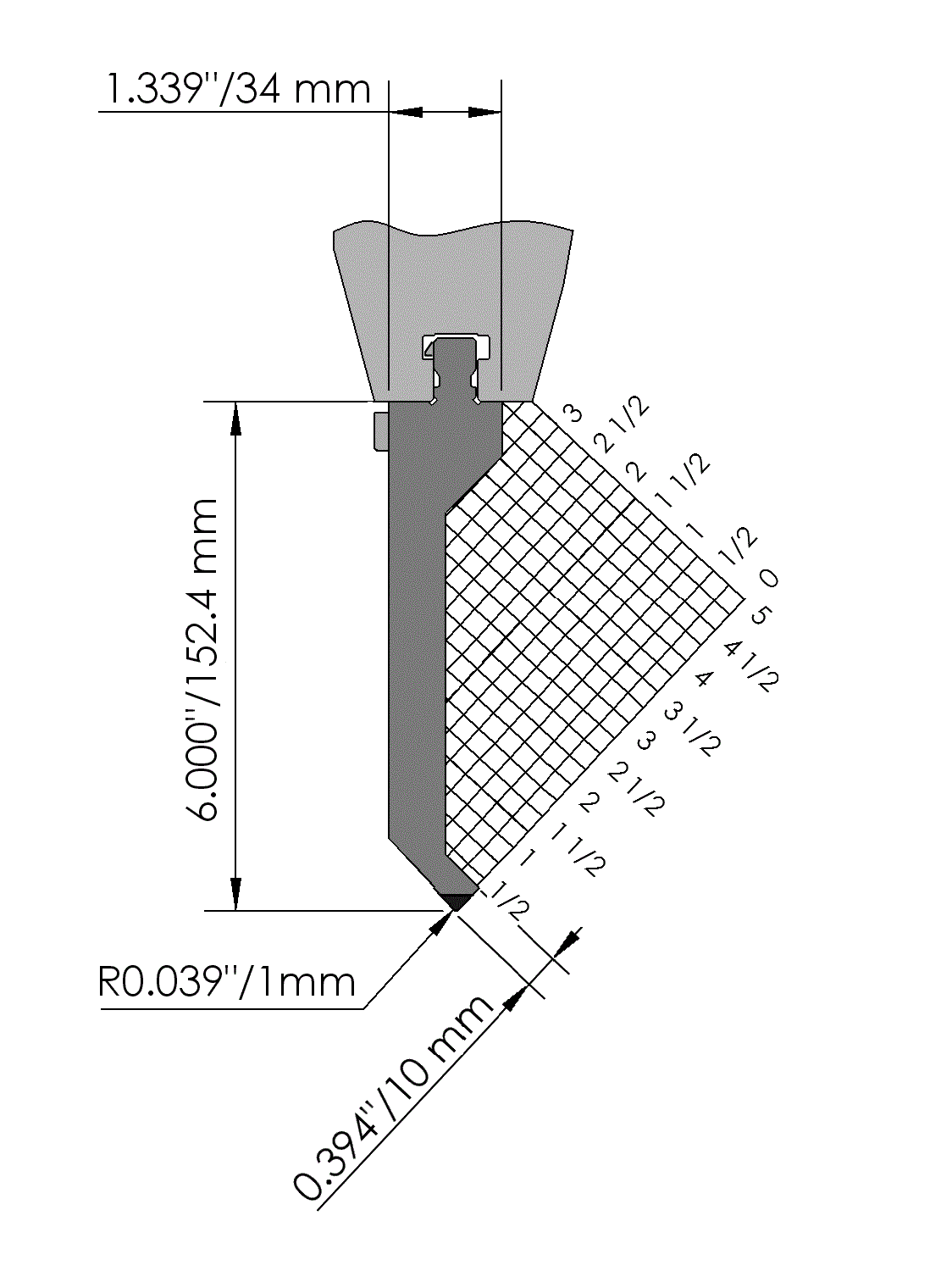

American Style top tool with Working height H=152.4mm, α=86°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=75ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
