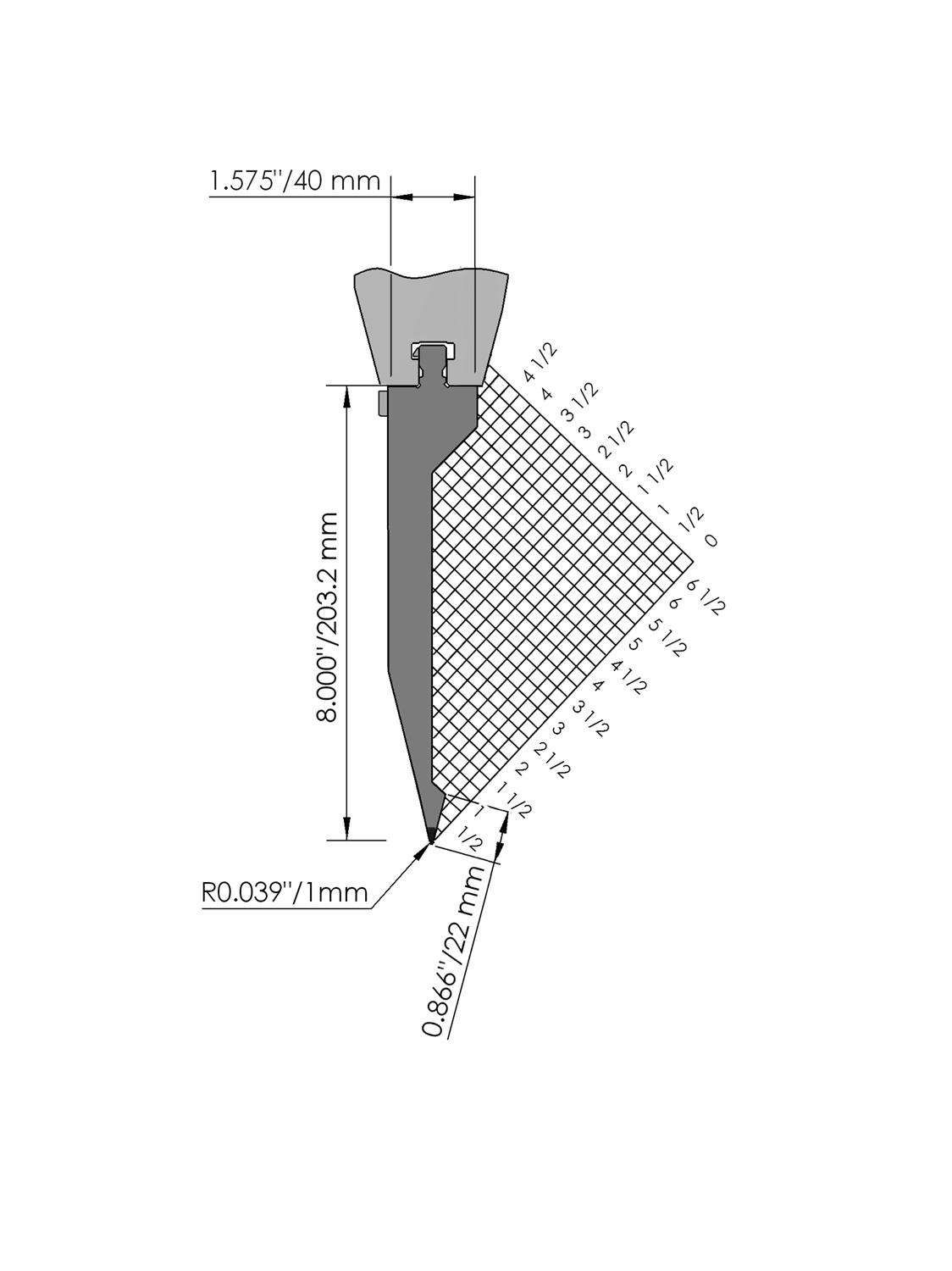

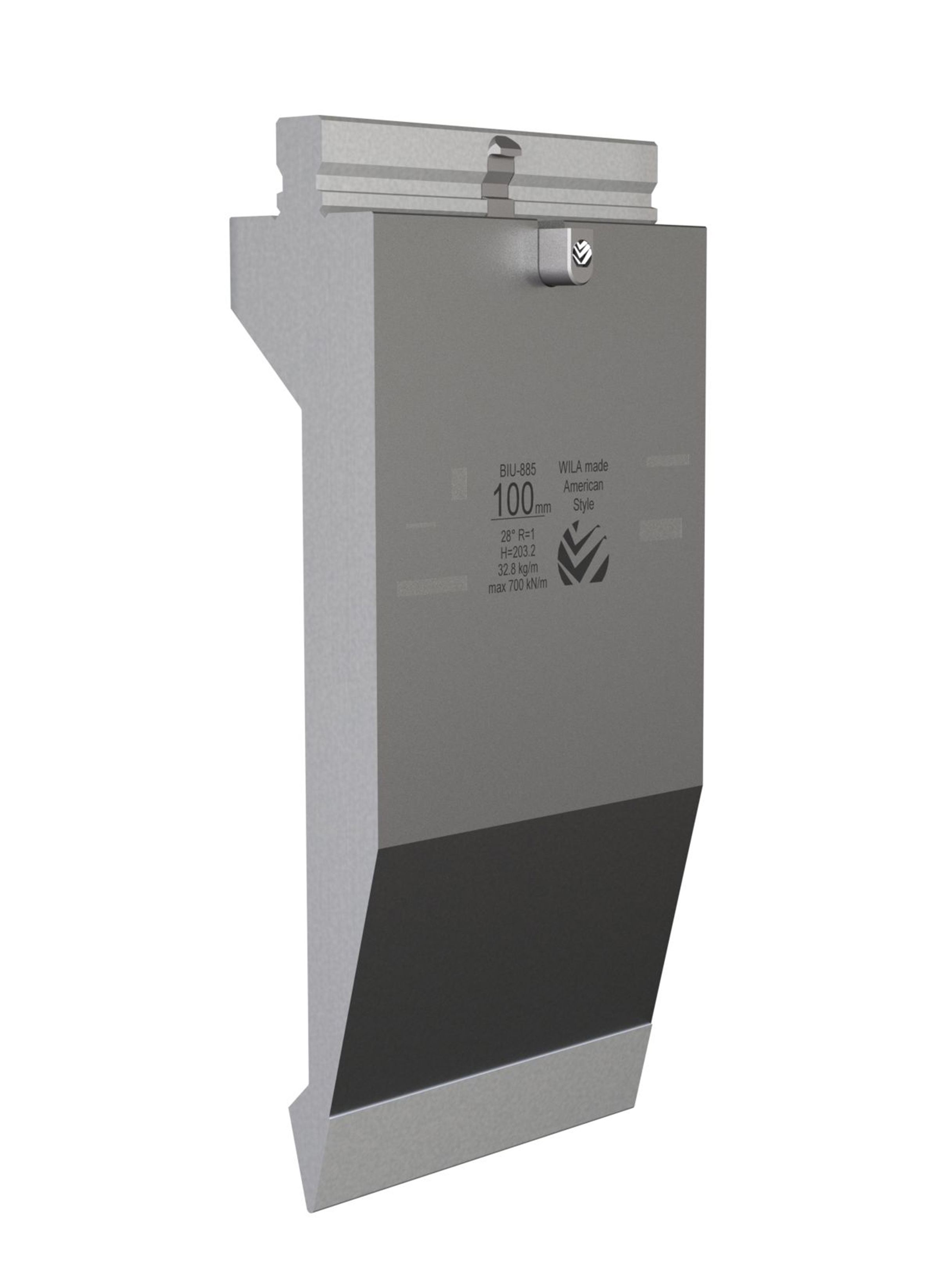

American Style top tool with Working height H=203.2mm, α=28°, Radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=70ton/m. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
