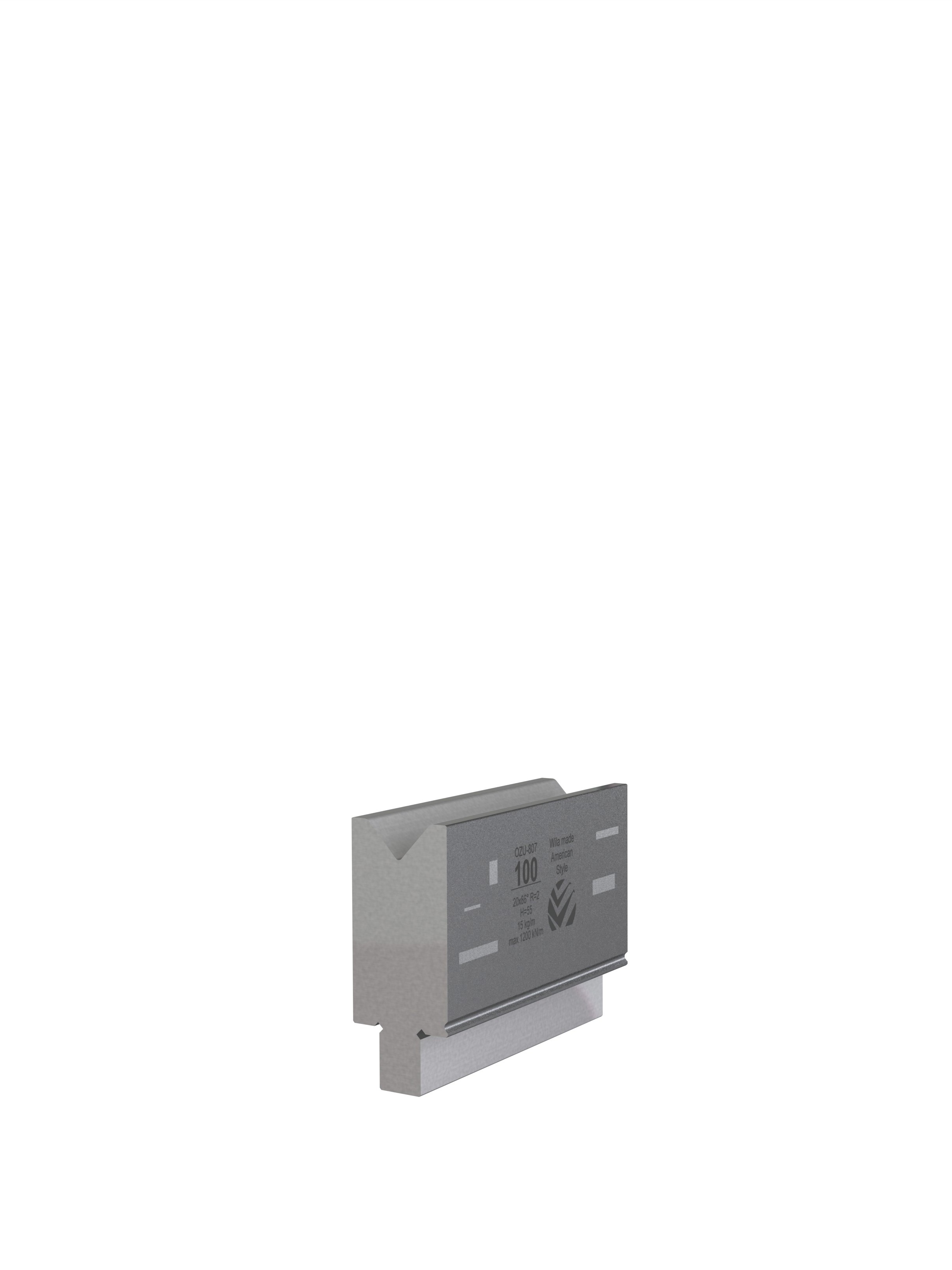

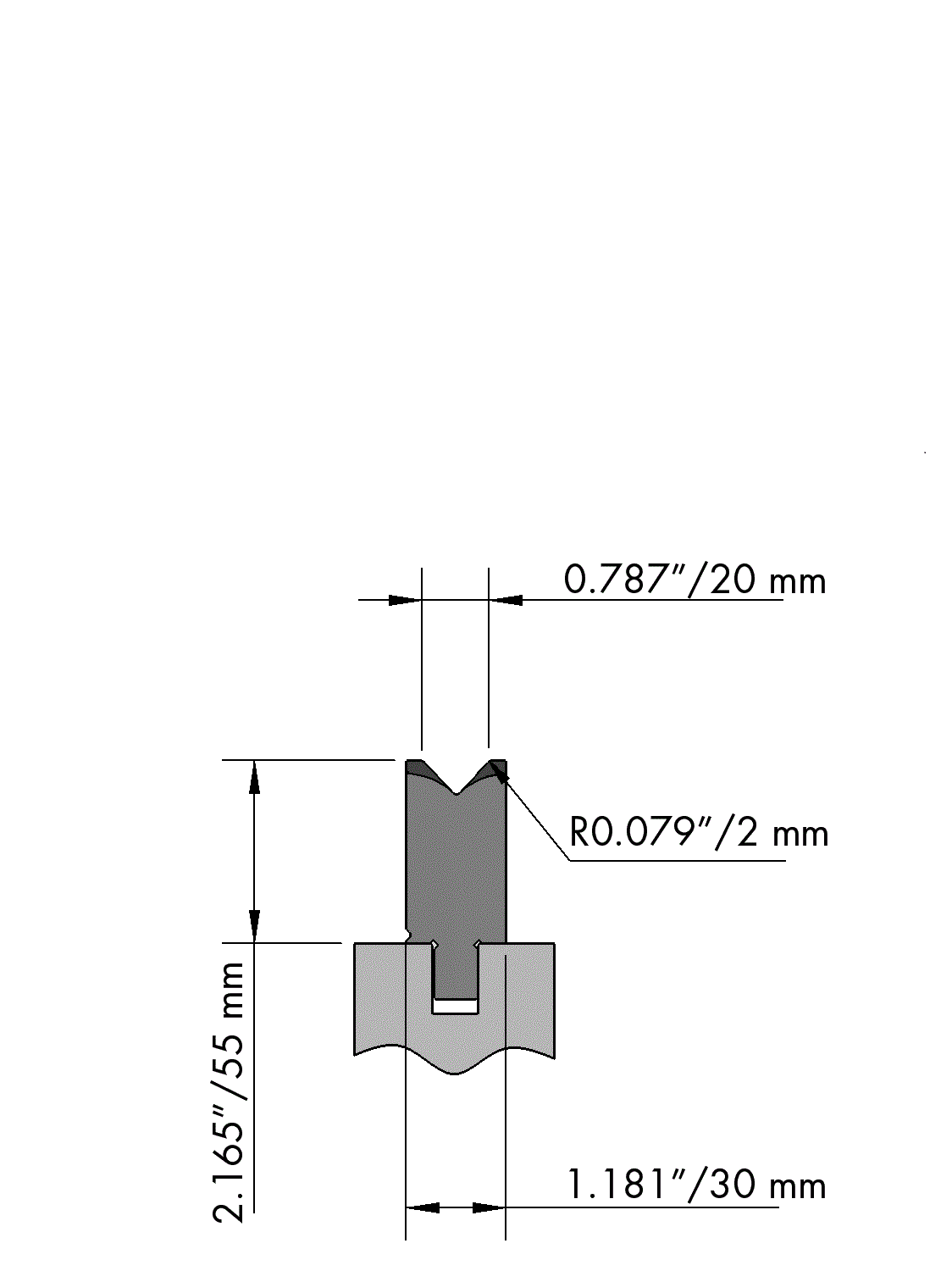

American Style bottom tool Working height=55mm, V-opening=20mm/86°, Bending radius=2mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO
