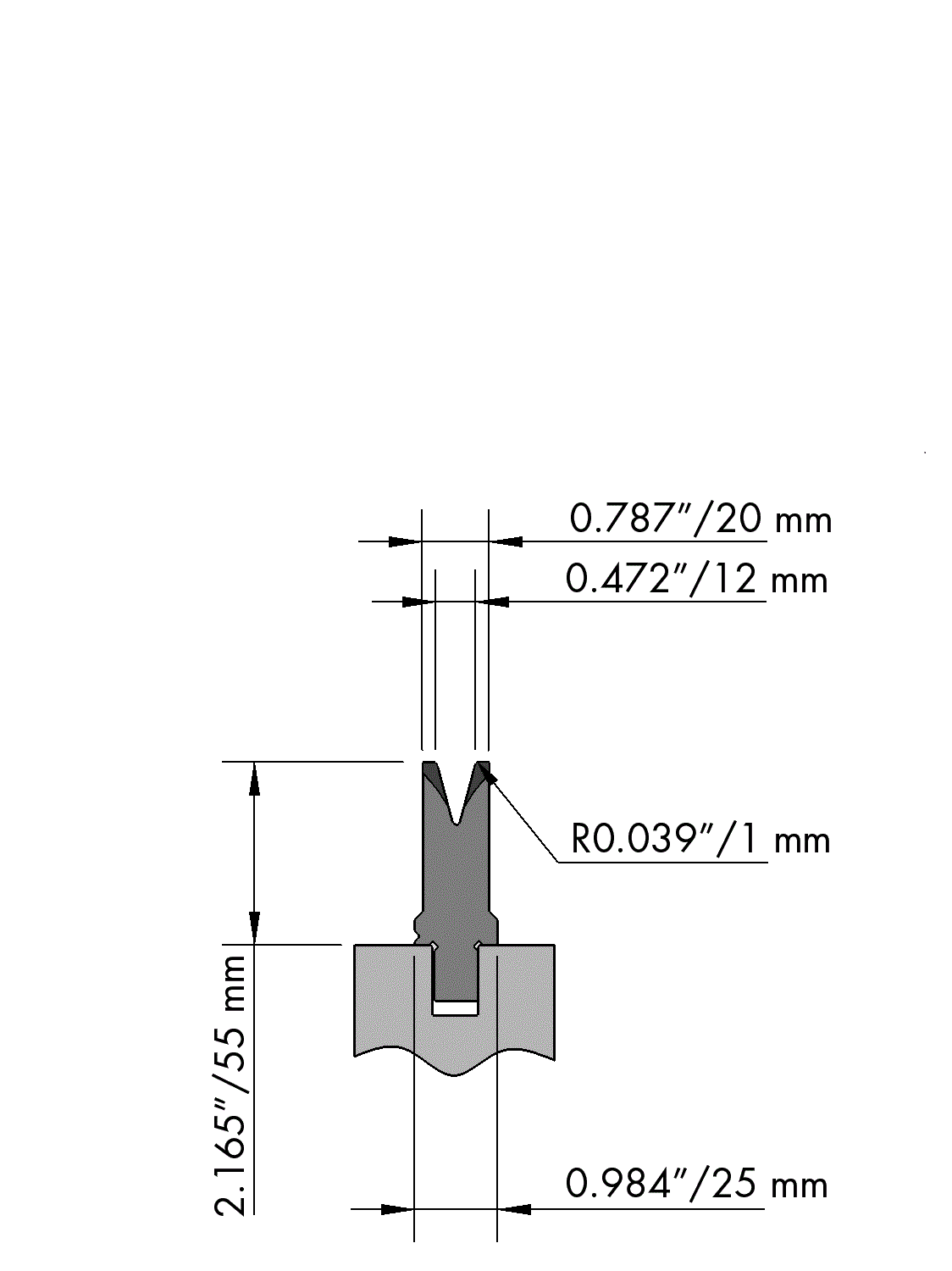

American Style bottom tool Working height=55mm, V-opening=12mm/30°, Bending radius=1mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°).
