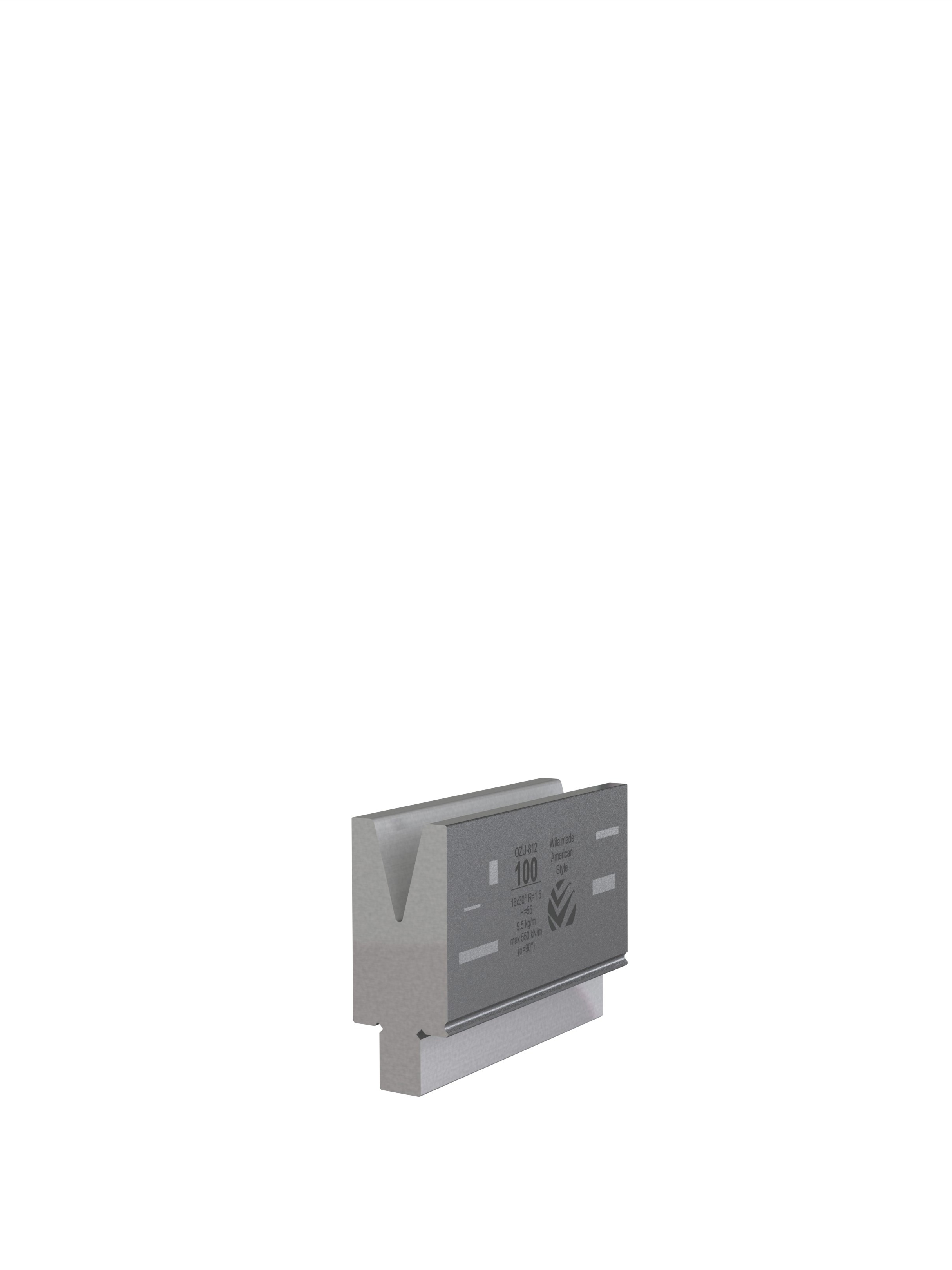

OZU-812

OZU-812

American Style Bottom Tool

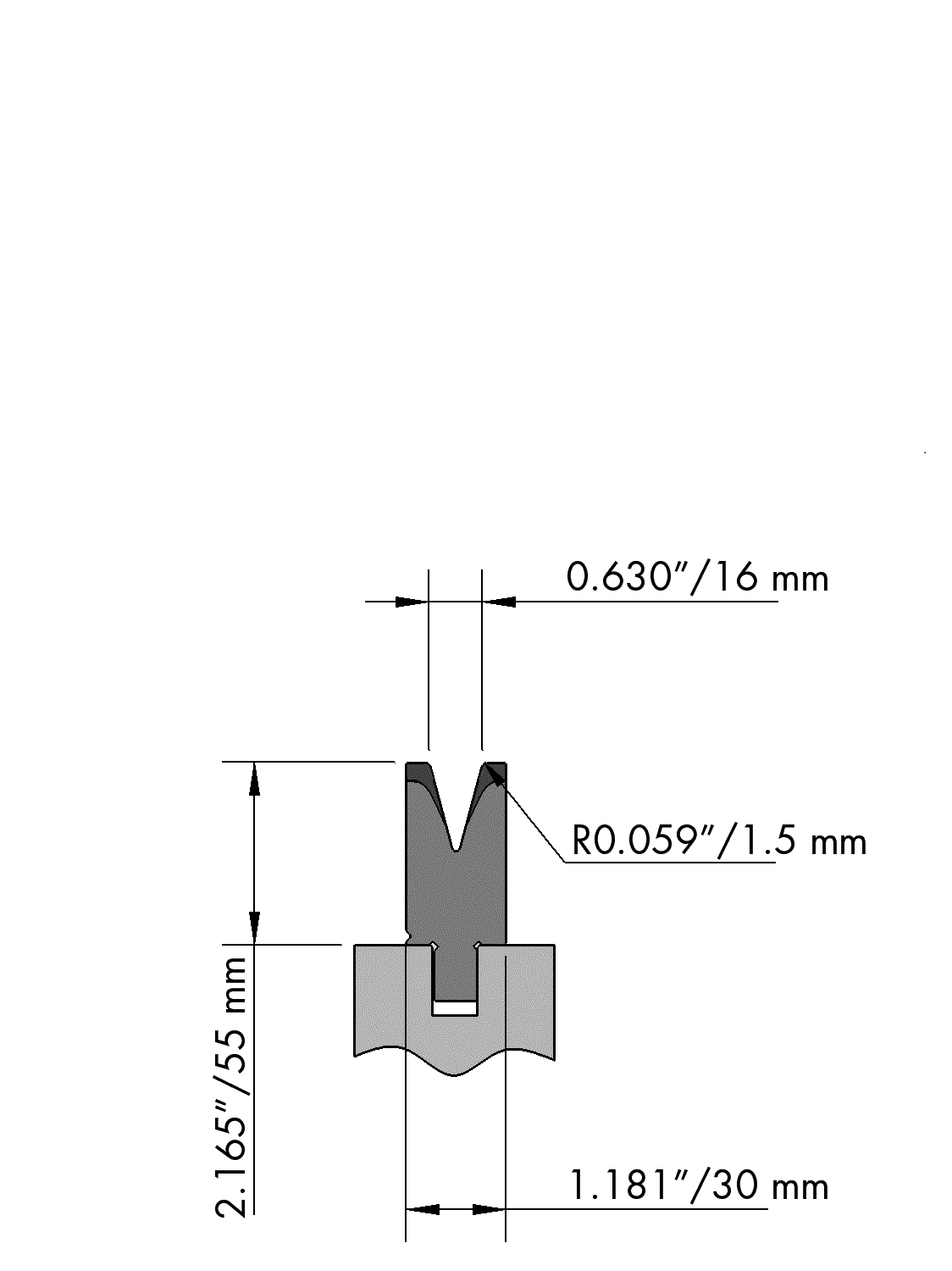

  • Working height = 55mm
  • V-opening = 16mm/30°
  • Radius = 1.5mm
  • CNC-Deephardened® (at least 4mm / 52-60HRc)
  • Max. load = 80ton/m (α = 90°)

Description

American Style bottom tool Working height=55mm, V-opening=16mm/30°, Bending radius=1.5mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=80ton/m (α=90°).
