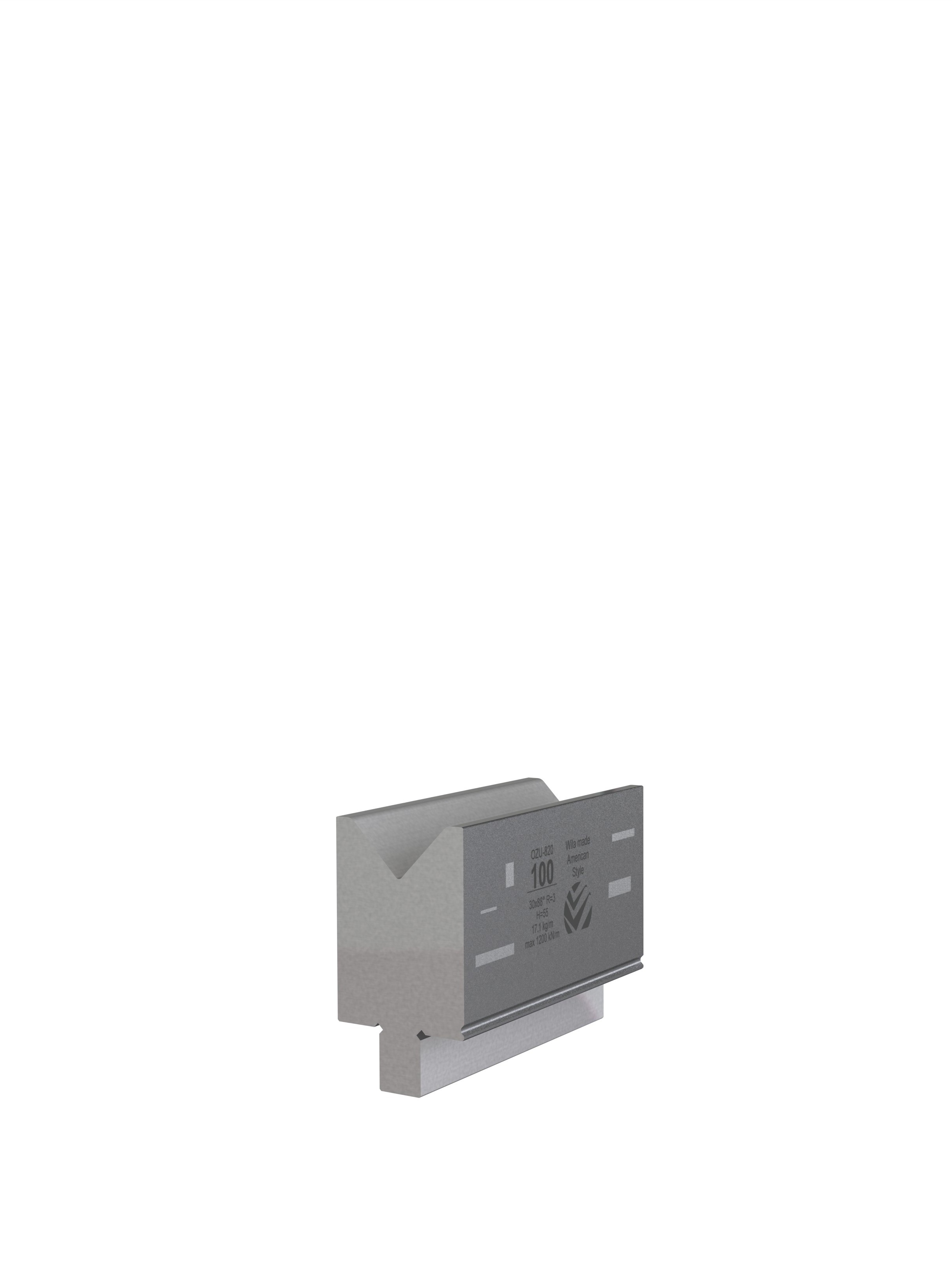

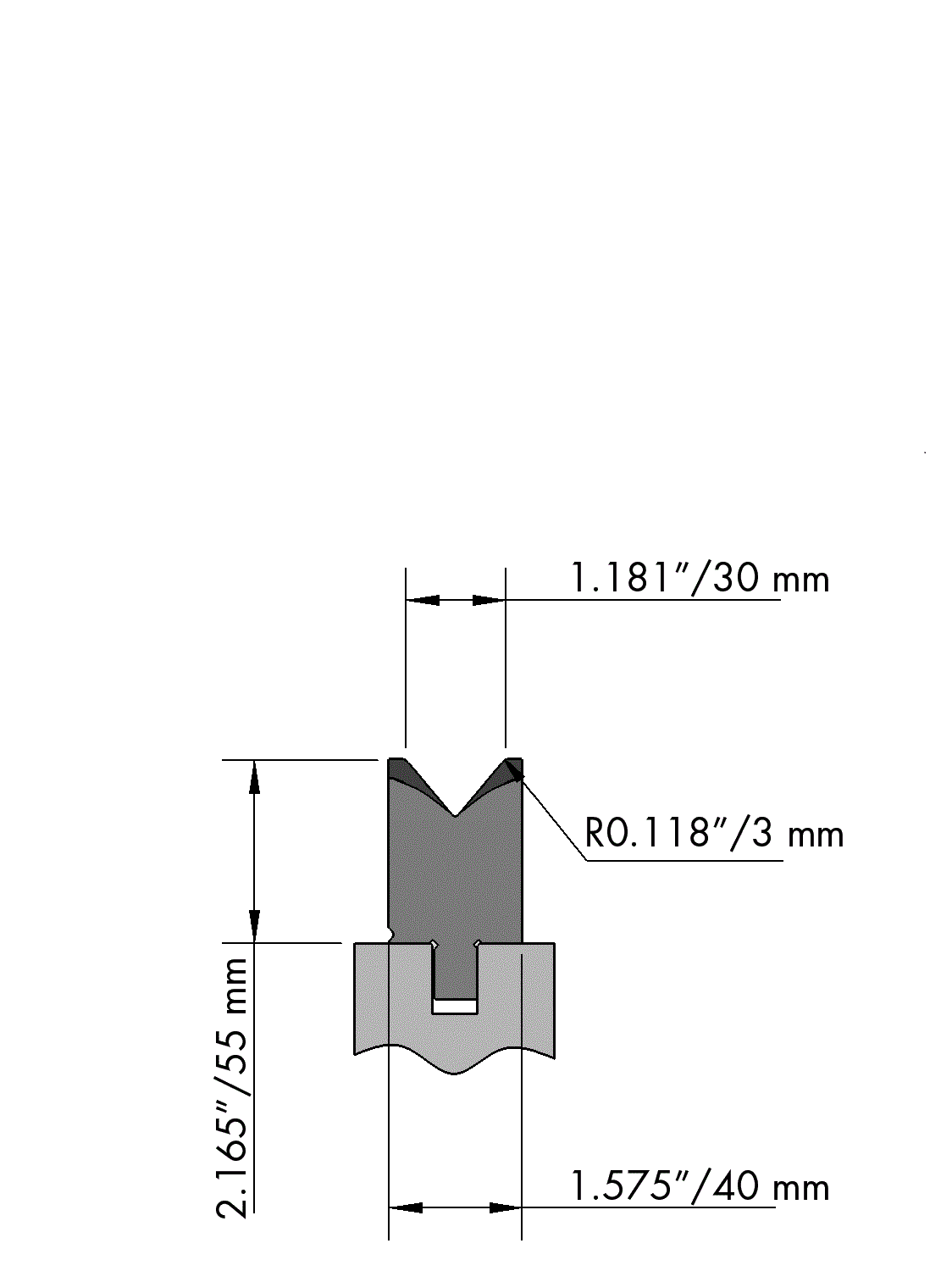

American Style bottom tool Working height=55mm, V-opening=30mm/88°, Bending radius=3mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MOMax. load=120ton/m.
