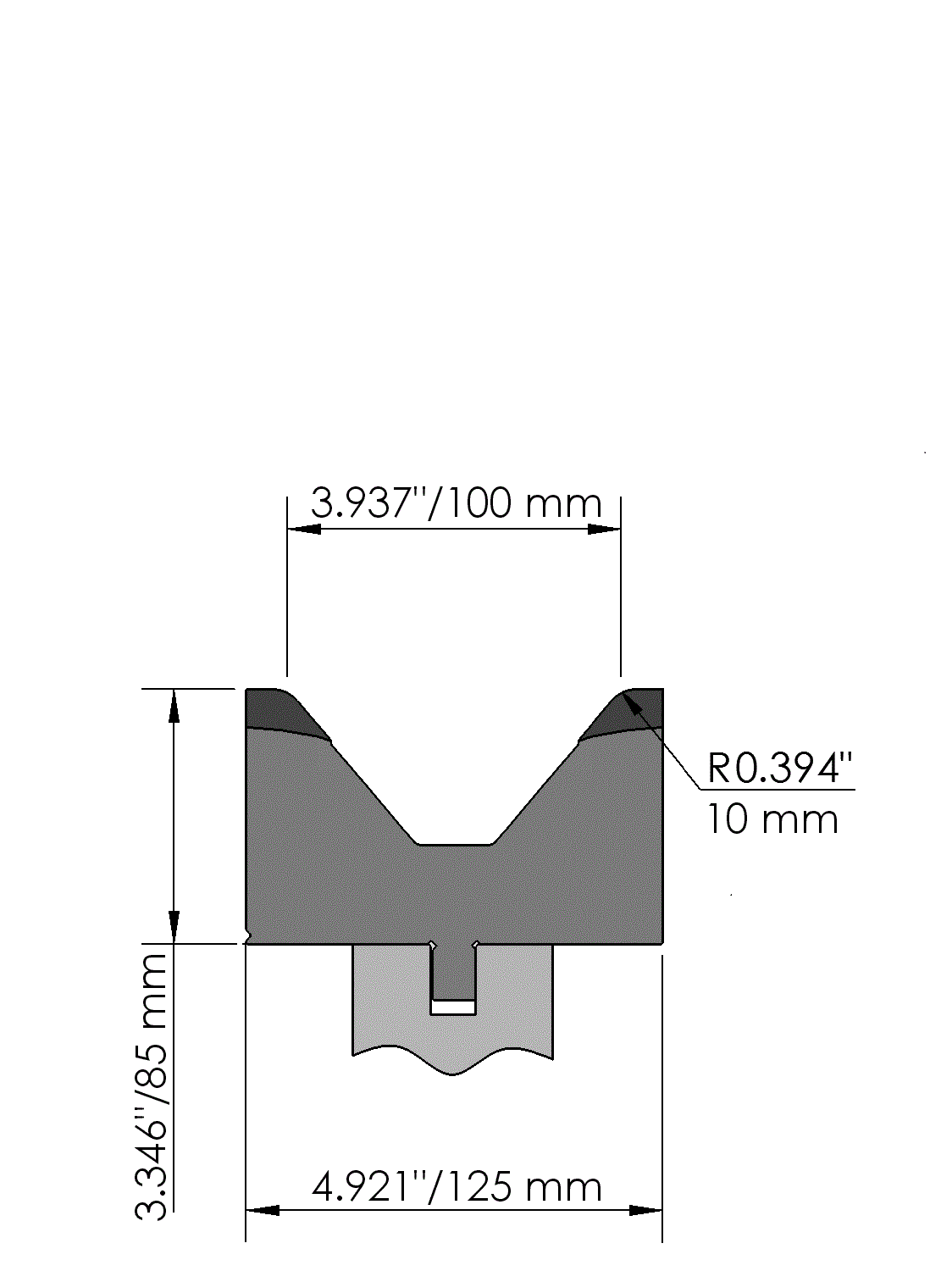

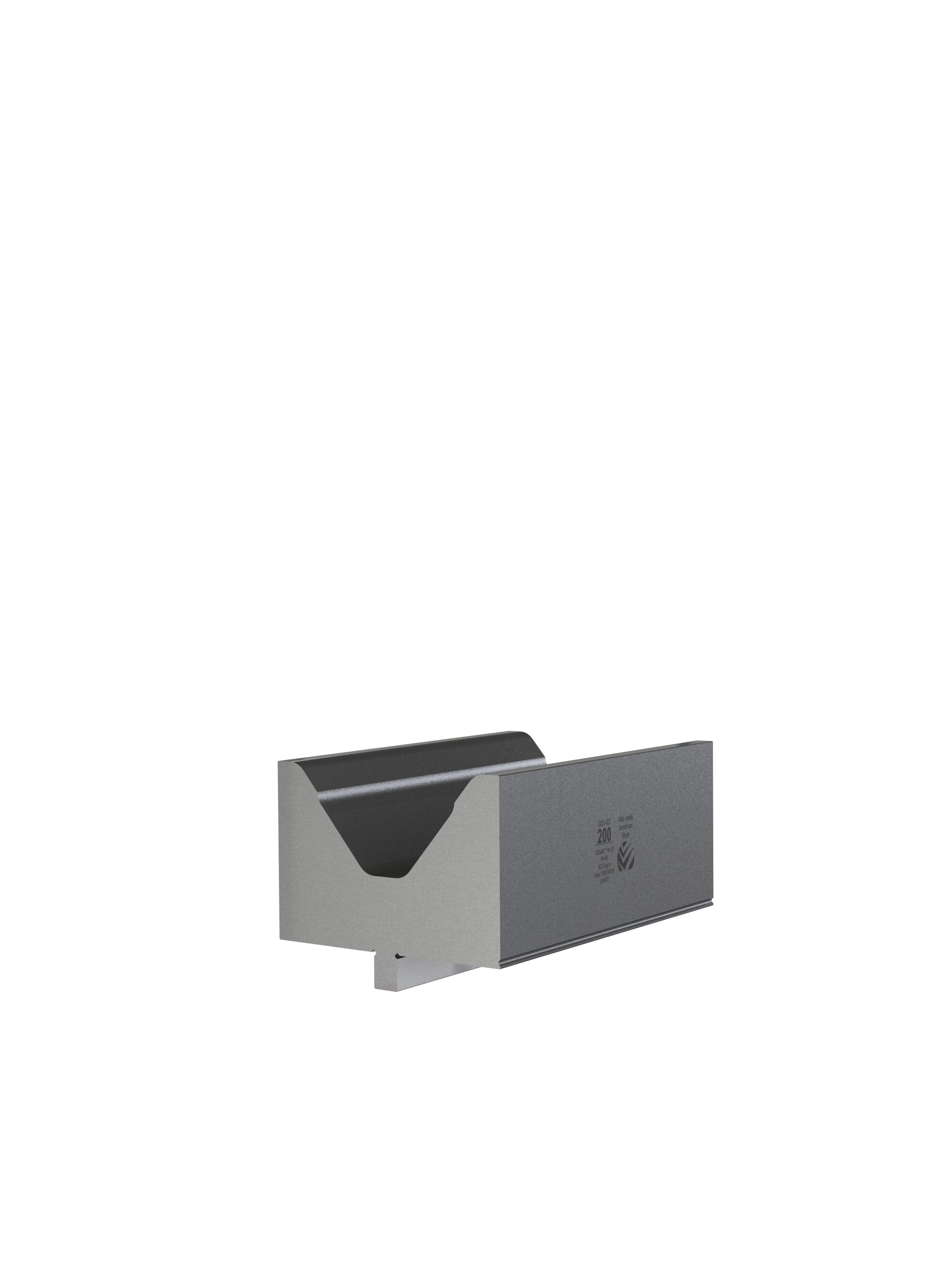

American Style bottom tool Working height=85mm, V-opening=100mm/80°, Bending radius=10mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°).
