OZU-826

OZU-826

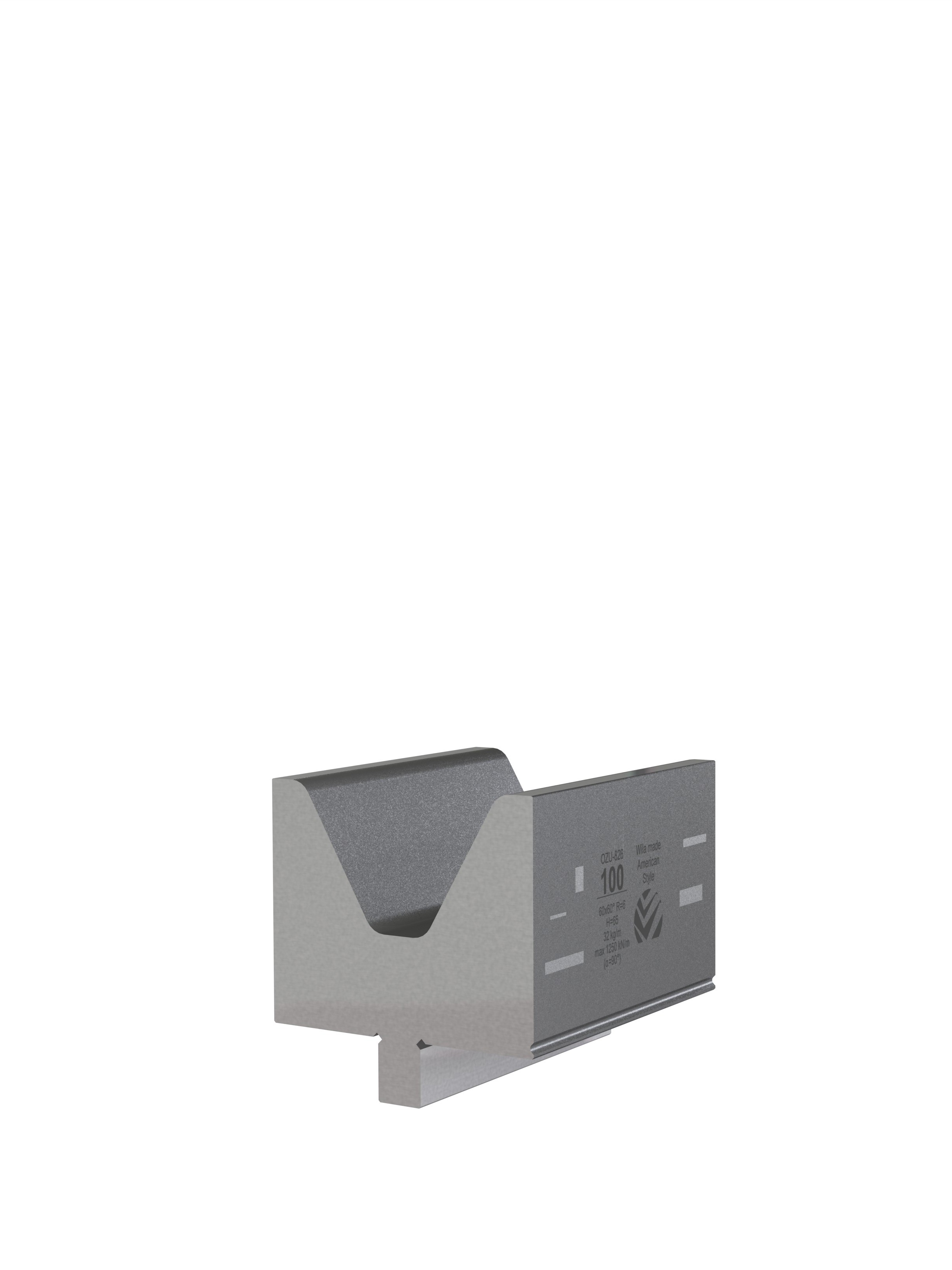

American Style Bottom Tool

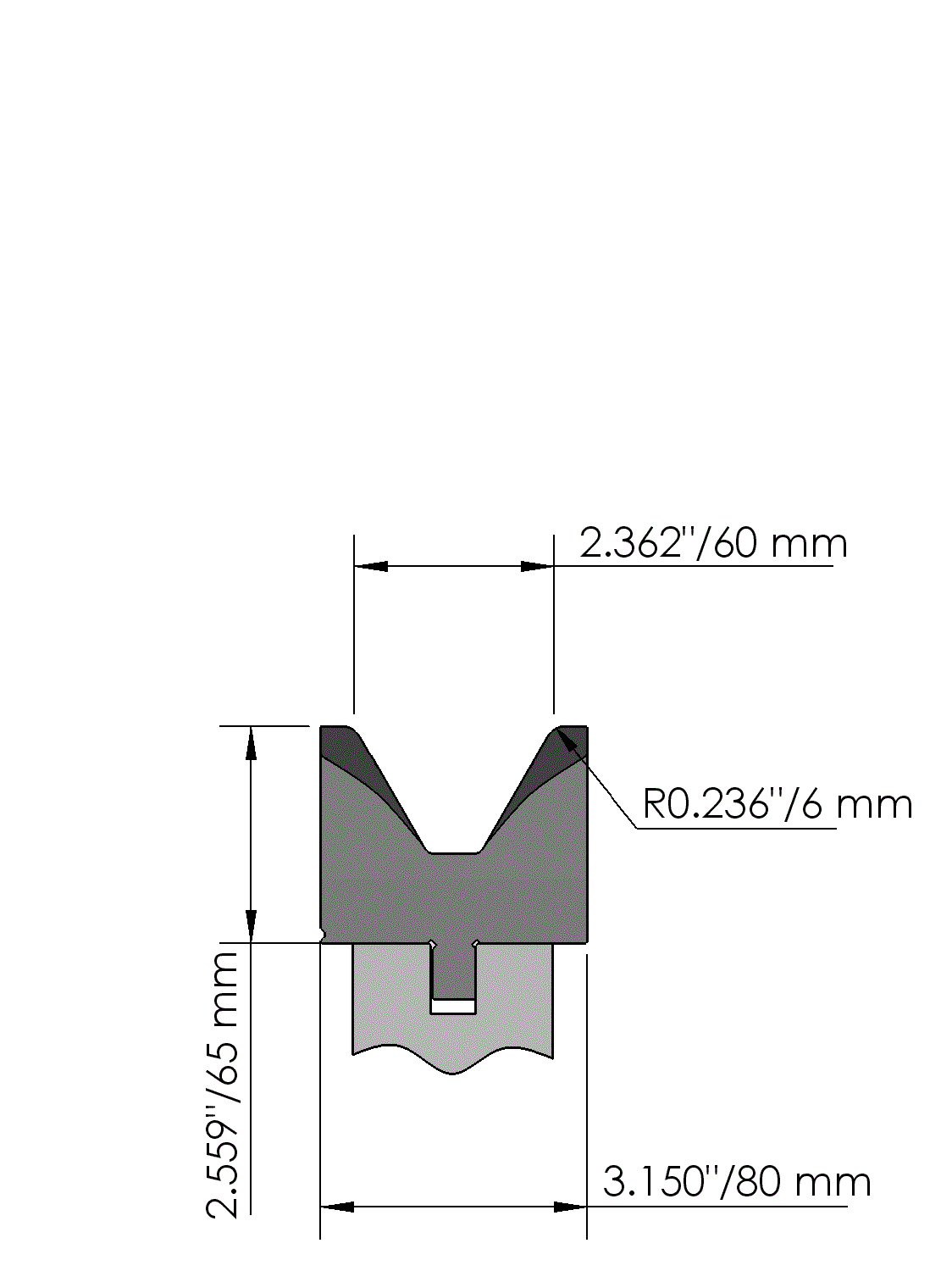

  • Working height = 65mm
  • V-opening = 60mm/60°
  • Radius = 6mm
  • CNC-Deephardened® (at least 4mm / 52-60HRc)
  • Max. load = 150ton/m (α = 90°)

Description

American Style bottom tool Working height=65mm, V-opening=60mm/60°, Bending radius=6mm, precision ground and CNC-Deephardened® (at least 4mm / 52-60HRc), Material=CR-MO, Max. load=150ton/m (α=90°).
