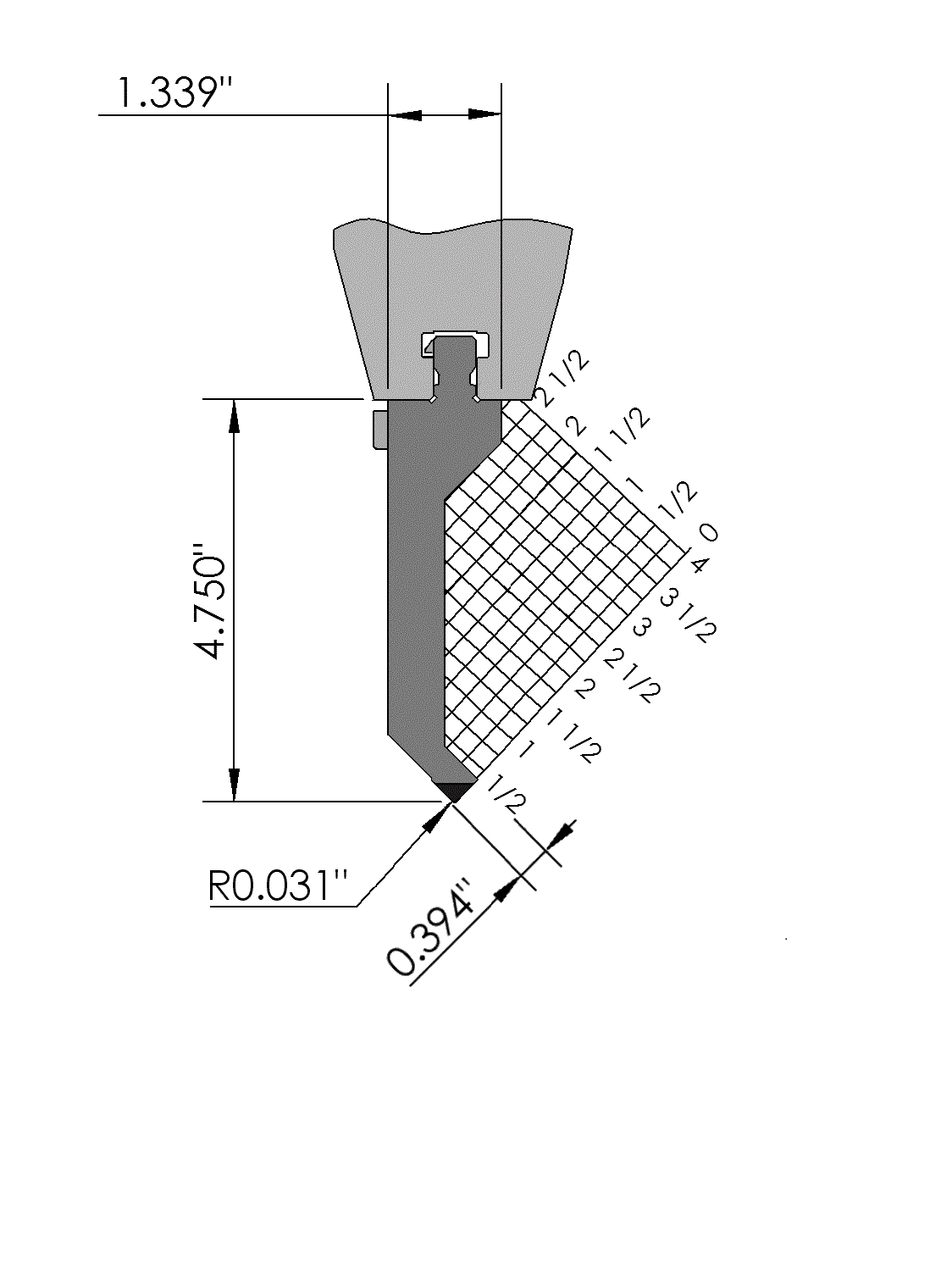

American Vintage top tool with Working height H=4.750", α=90°, Radius=.031", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc), Material=C45, Max. load=25 Tons/ft. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
