BIU-905

BIU-905

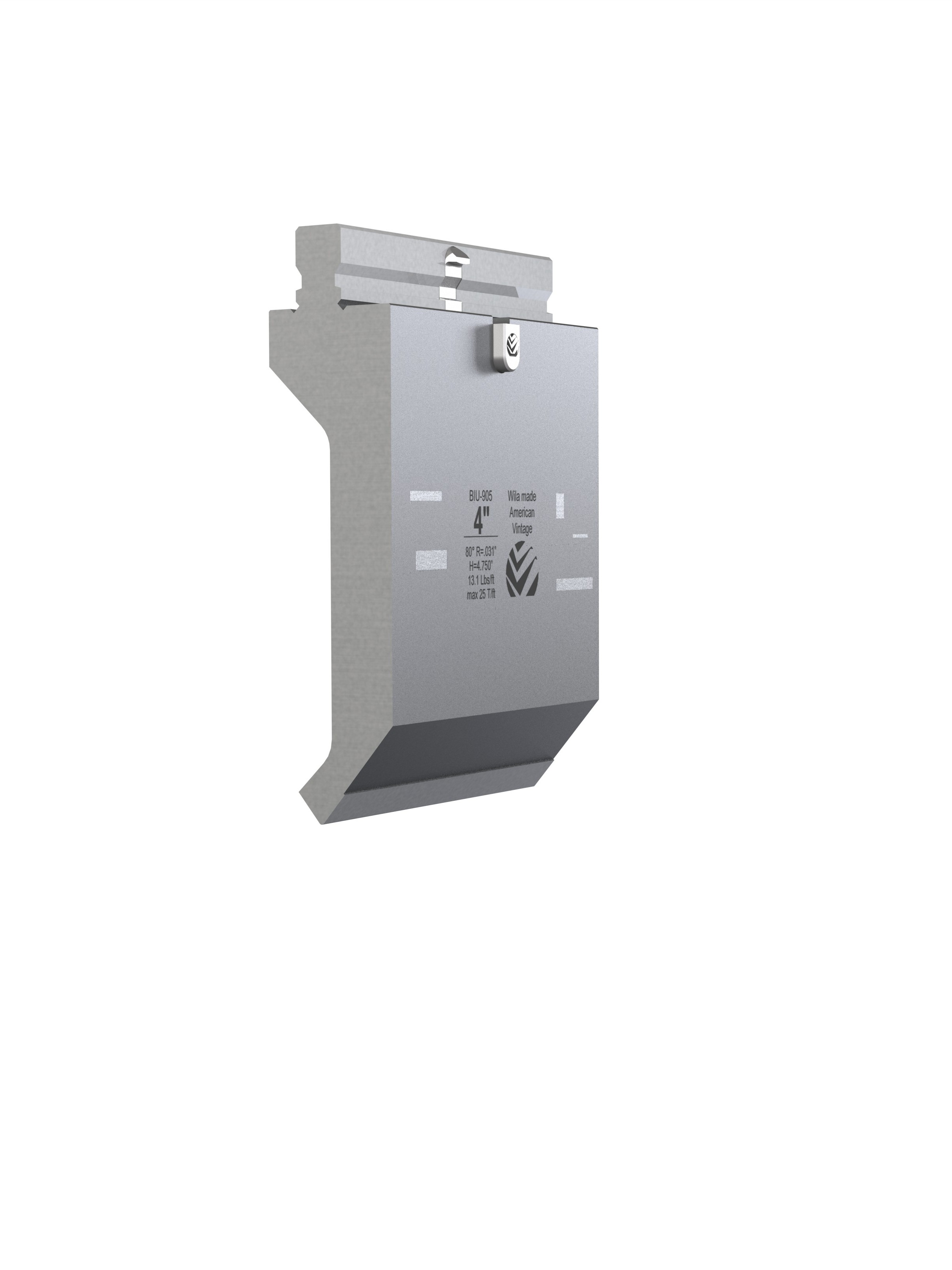

American Vintage Top Tool

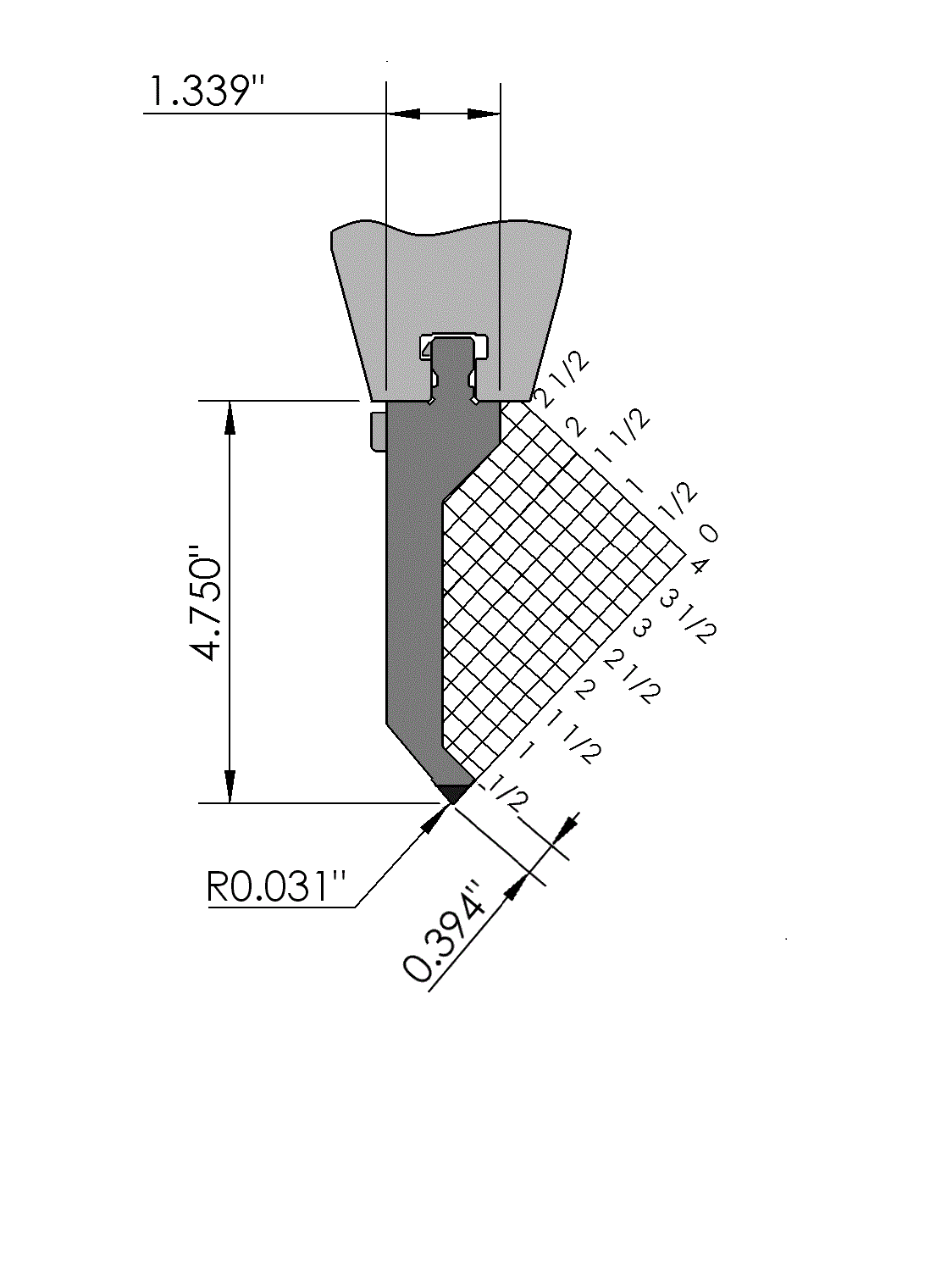

  • Working height H = 4.750"
  • Tip angle α = 80°
  • Radius R = .031"
  • CNC-hardened (approx. 0.079" / ≥ 52HRC)
  • Max. load = 25 Tons/ft

Description

American Vintage top tool with Working height H=4.750", α=80°, Radius=.031", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc), Material=C45, Max. load=25 Tons/ft. Provided with Safety-Clicks™, which allows you to change the tooling vertically.
