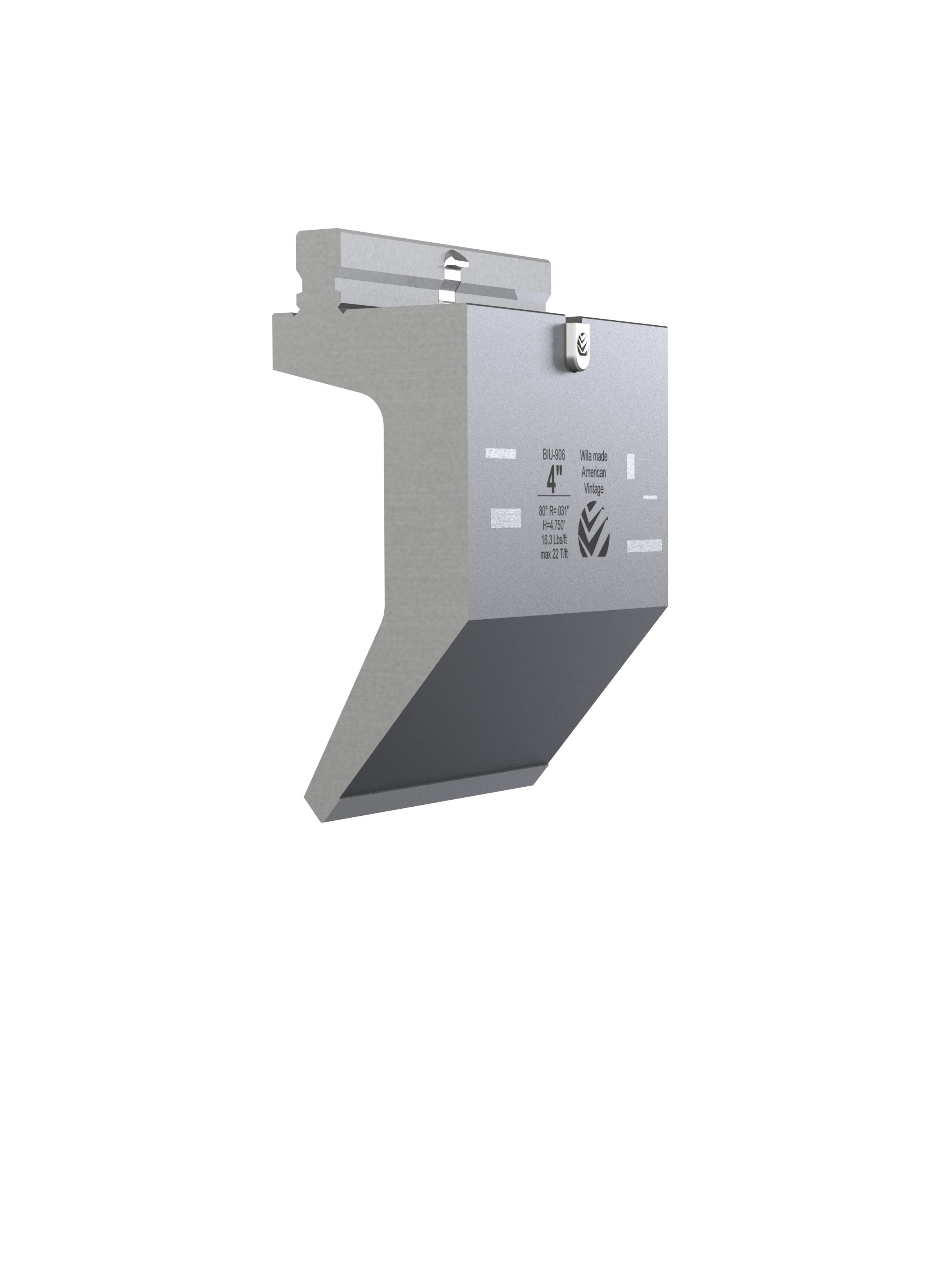

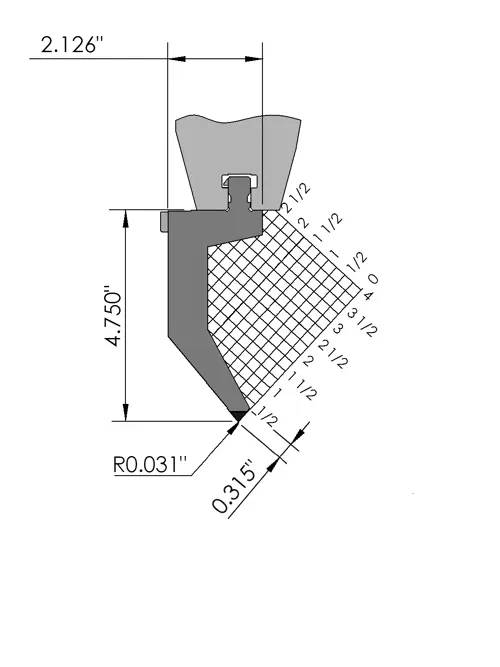

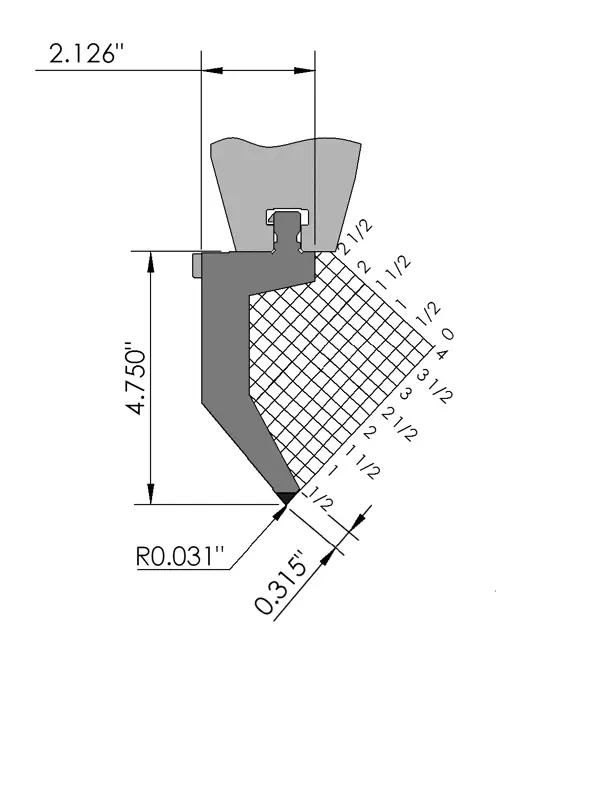

American Vintage top tool with Working height H=4.750", α=80°, Radius=.031", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc), Material=C45, Max. load=22 Tons/ft. Parts <12.5kg provided with Safety-Clicks™, which allows you to change the tooling vertically; all other parts provided with fixed safety pins, which only allows you to change the tooling horizontally.
