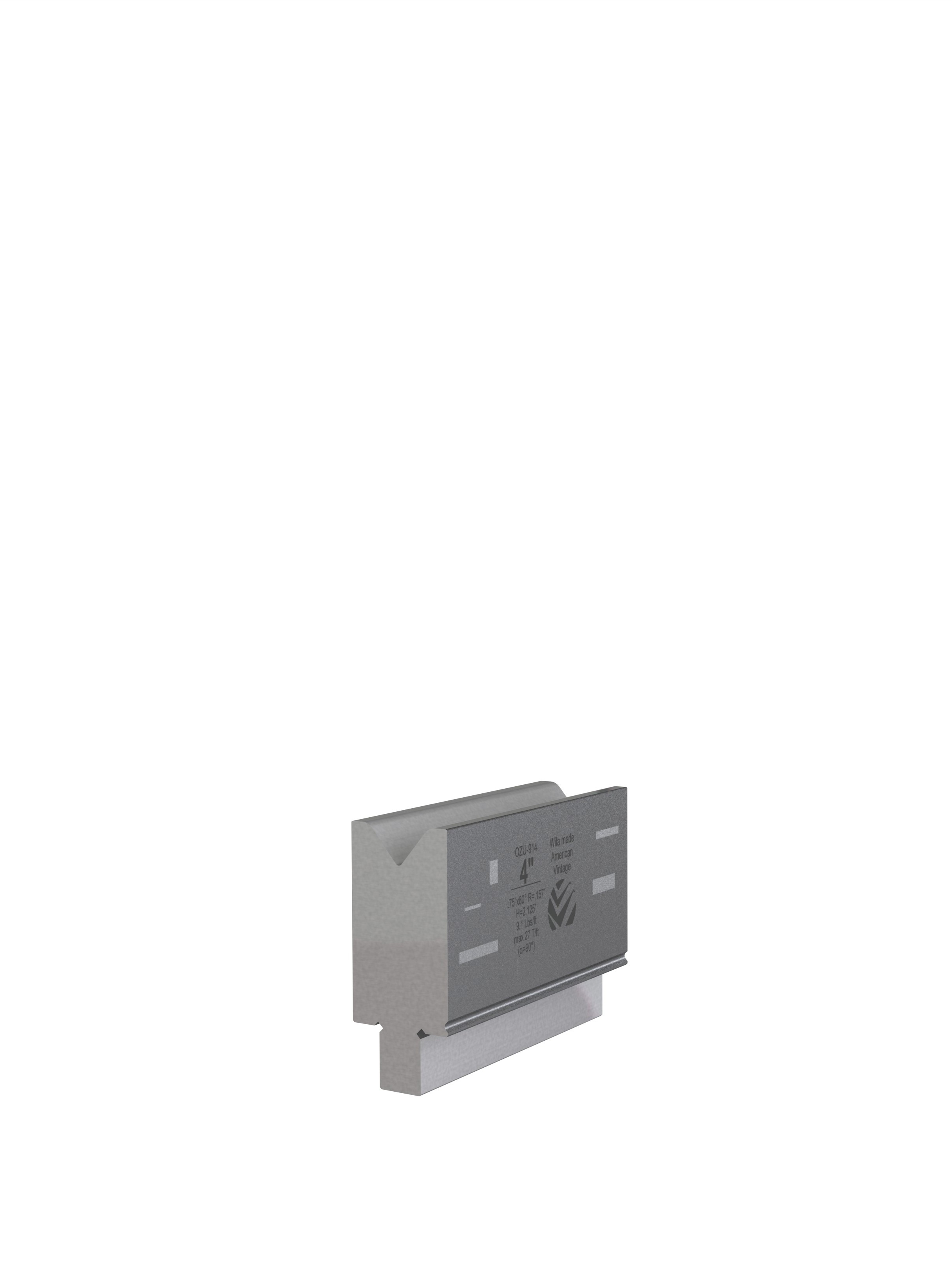

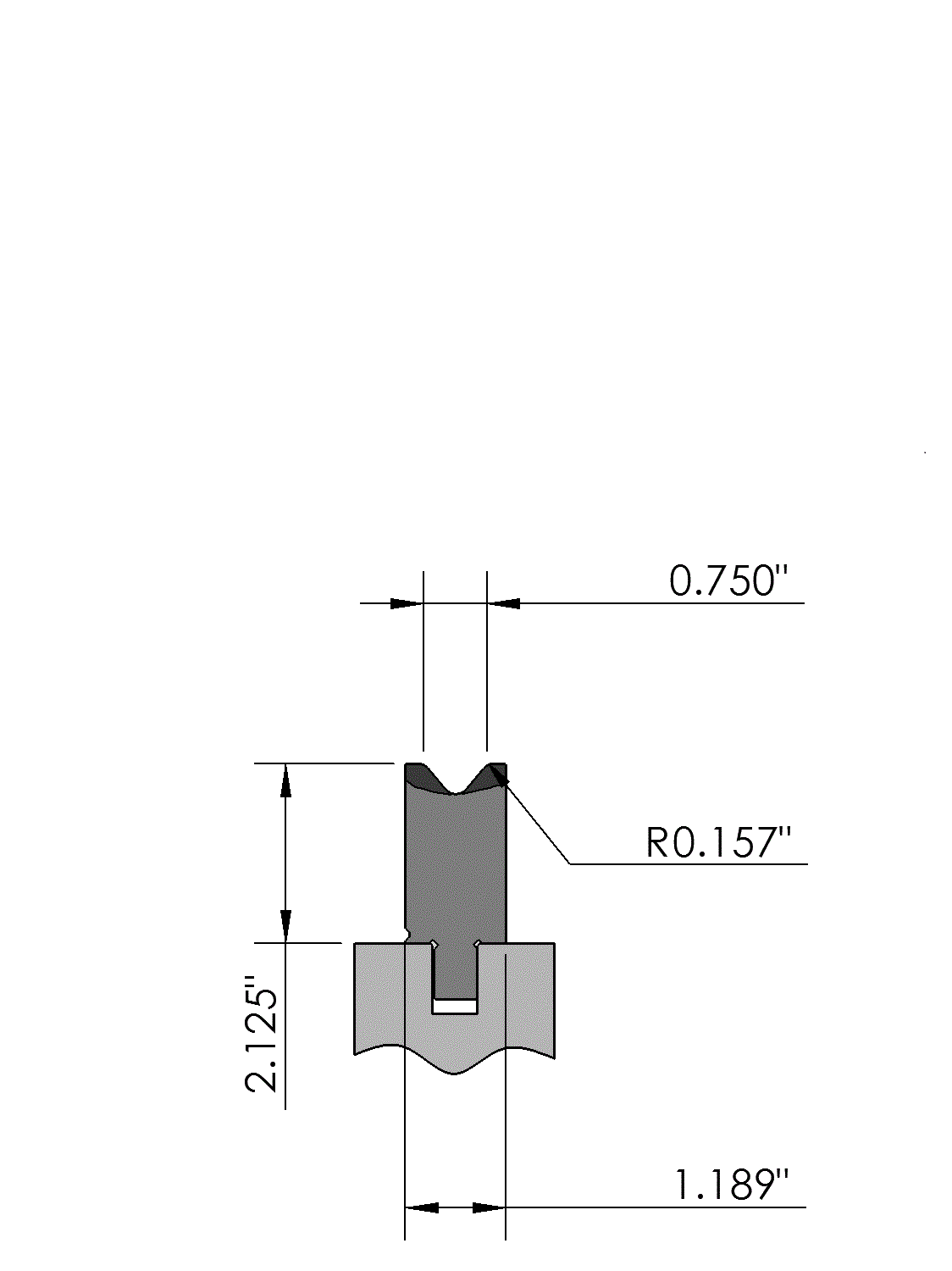

American Vintage bottom tool Working heigth=2.125", V-opening=0.750"/80°, Bending radius=.157", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc) (approx. 2mm / at least 52HRc), Material=C45, Max. load=27 Tons/ft (α=90°).
