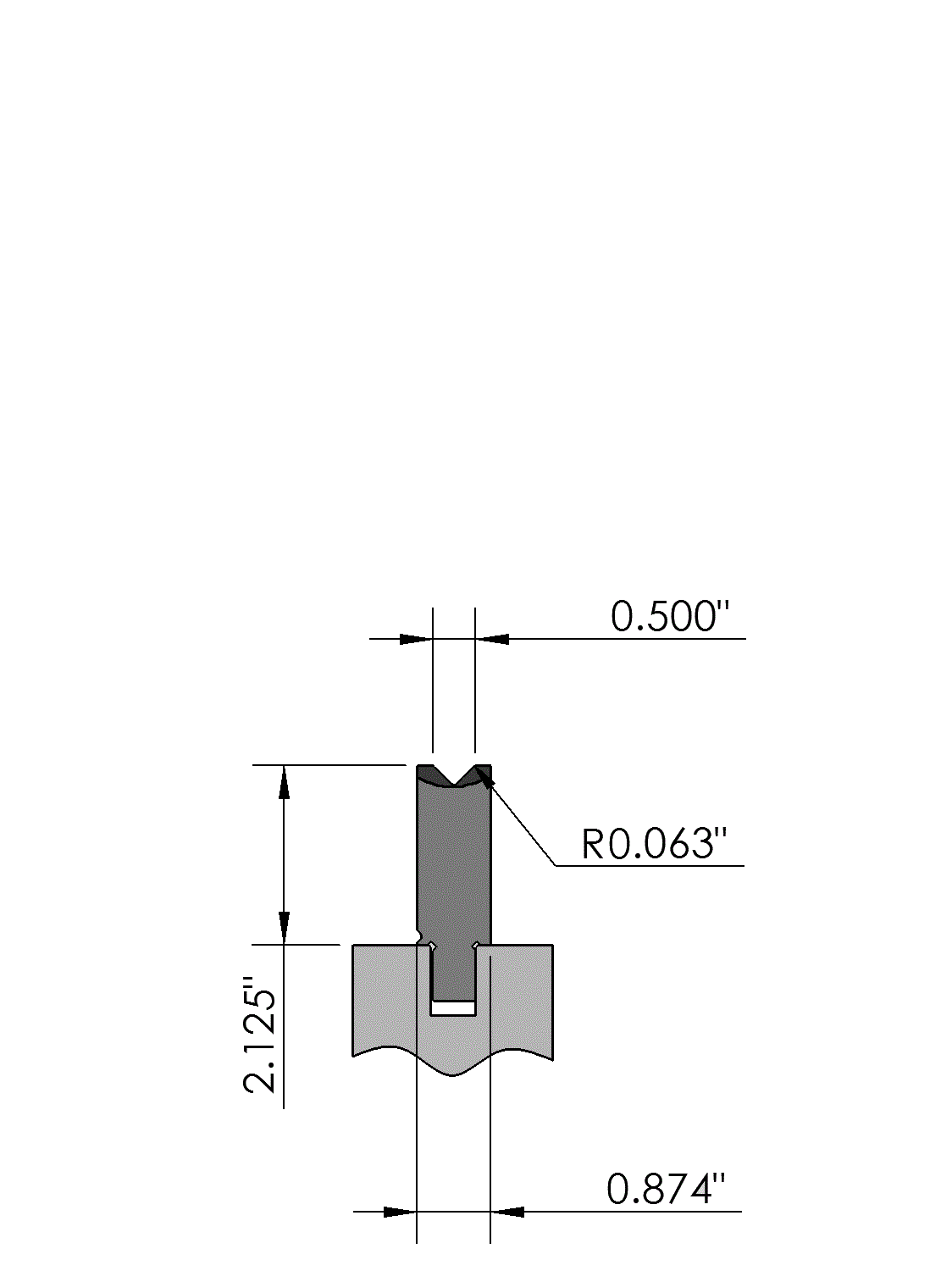

American Vintage bottom tool Working heigth=2.125", V-opening=0.500"/90°, Bending radius=.063", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc) (approx. 2mm / at least 52HRc), Material=C45
Max. load=100 Tons/ft.
