OZU-944

OZU-944

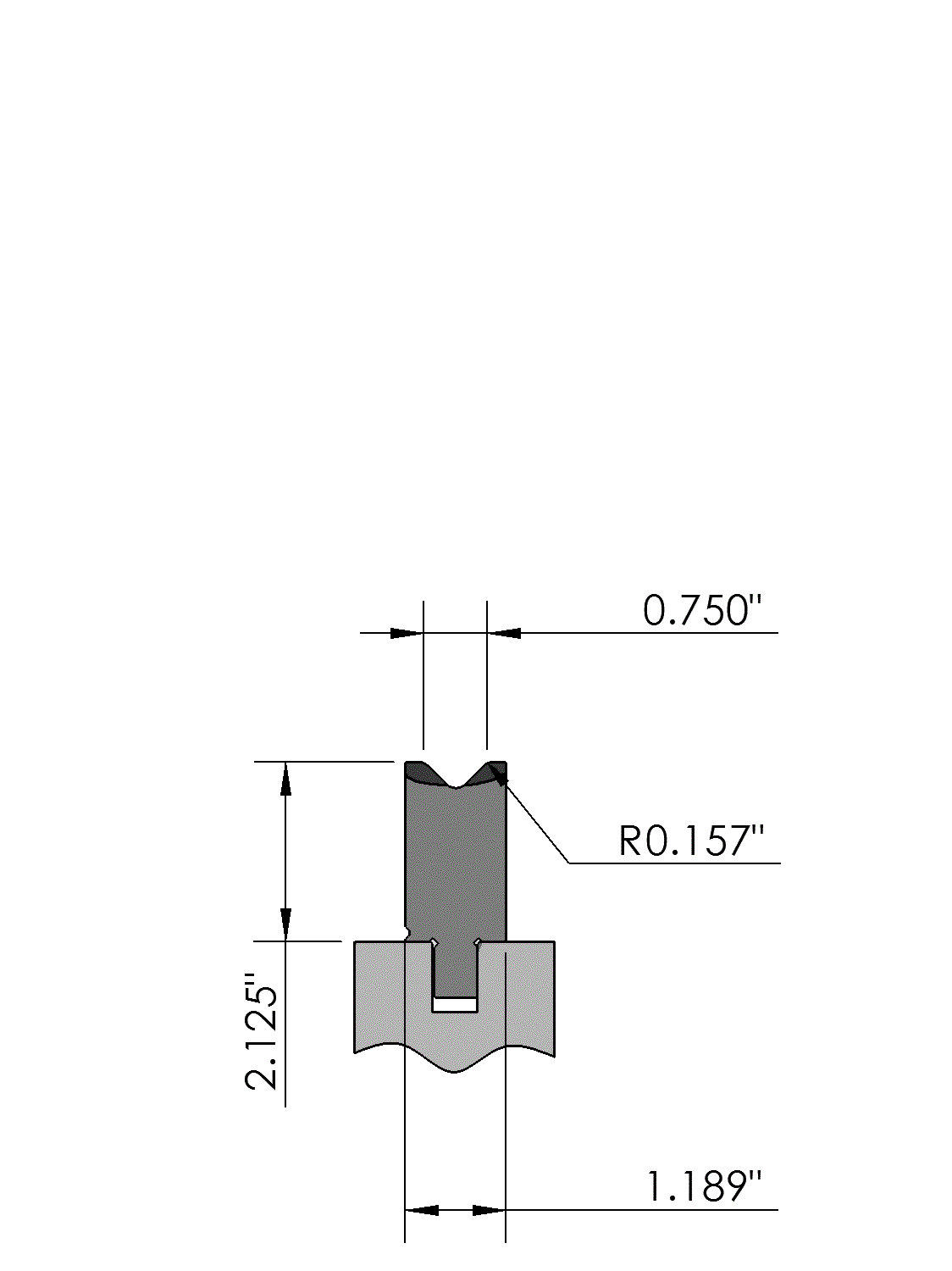

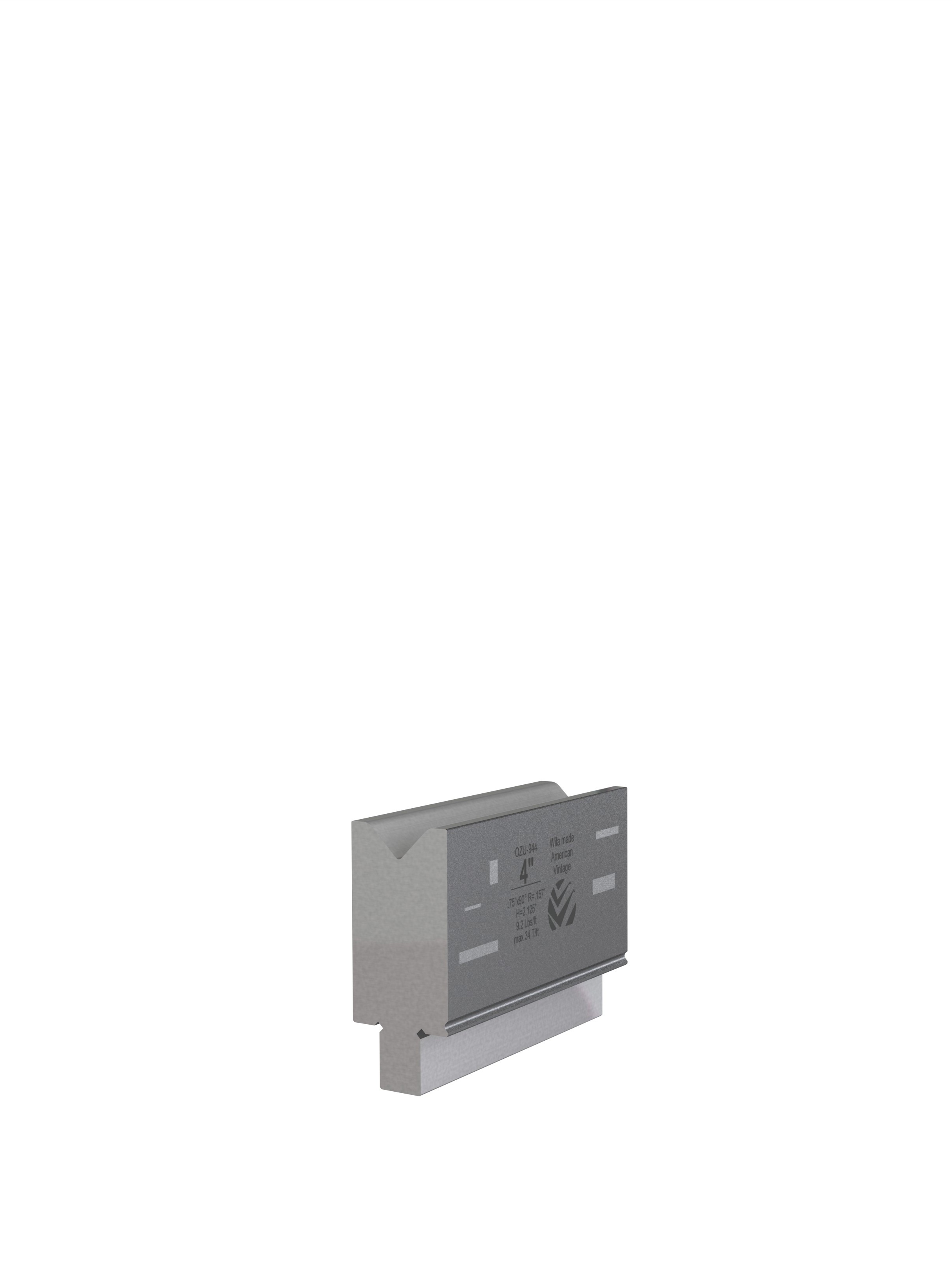

American Vintage Bottom Tool
  • Working heigth = 2.125"
  • V-opening = 0.750"/90°
  • Radius = .157"
  • CNC-hardened (approx. 2mm / at least 52HRc)
  • Max. load = 34 Tons/ft

Description

American Vintage bottom tool Working heigth=2.125", V-opening=0.750"/90°, Bending radius=.157", precision ground and CNC-hardened (approx. 0.079" / at least 52HRc) (approx. 2mm / at least 52HRc), Material=C45
Max. load=100 Tons/ft.
